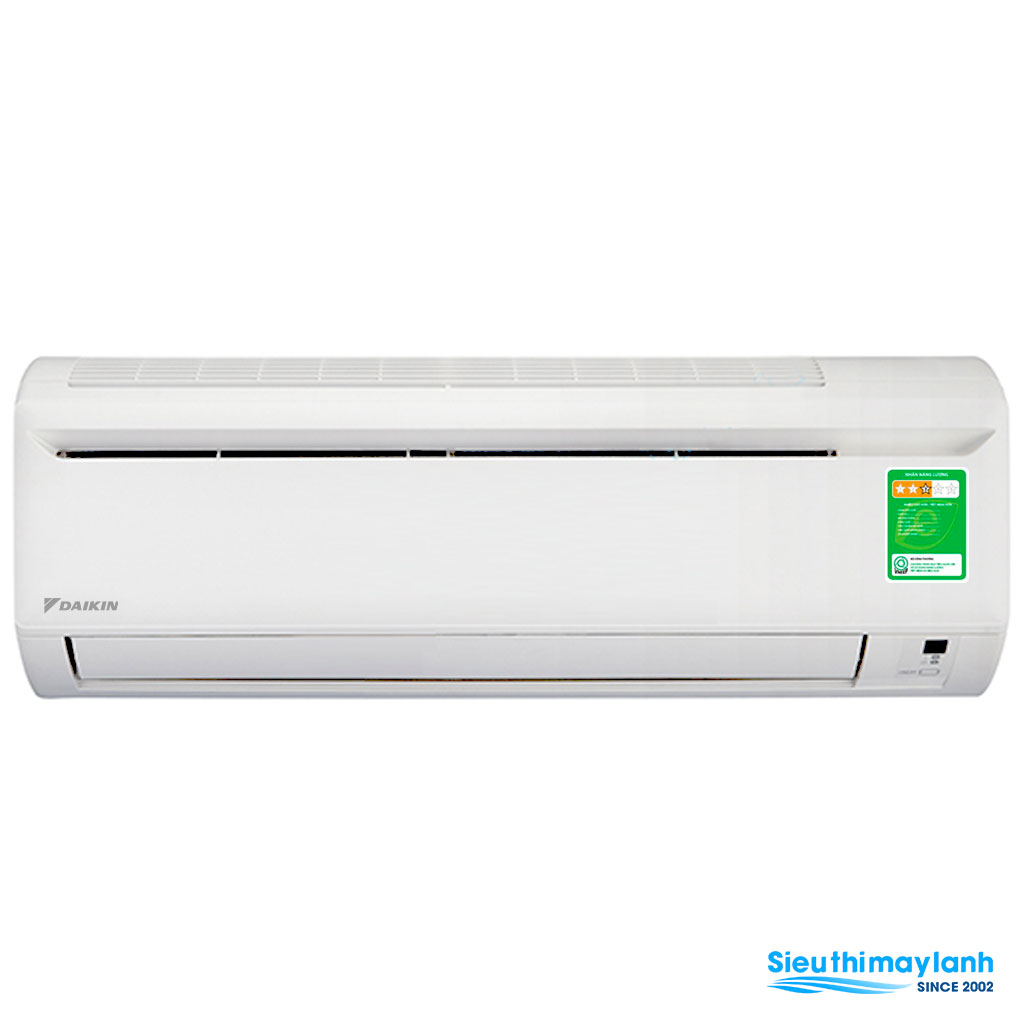

FTV Series
A standard wall mounted type air conditioner using R-32 refrigerant. This stylish flat panel air conditioner brings you comfort.
Advantages Of R32 Refrigerant
- “ZERO” Ozone Layer Depletion
- Easy To Recycle & Reuse
- Lower Global Warming Impact
- Higher Energy Efficiency
R32 refrigerant is a solution to tackle global warming with higher efficiency and perfomance. R32 refrigerant has the favorable global warming potential (GWP) and reduce in charge amount. With this, CO2 emission can be reduced by 75%.
Lower Global Warming Potential (GWP)
R32 has lower global warming impact with ZERO ozone layer depletion.
Higher Efficiency, Better Performance
R32 has higher energy efficiency as a result of lower fluid resistance.
R32 has better performance due to better heat transfer over R22 and R410A.
Stylish Panel
Ideal blend of style and function. Easier cleaning by just wiping the panel. This ensures the air-conditioner looks brand new at all time.
Quick cooling
Using turbo function, the air-conditioner will run at MAX speed for 20 minutes. This enables the set temperature to be achieved faster.
Sleep Mode
Once activated, the set temperature will increase gradually according to normal sleeping temperature patterns.
Lower Sound Level
Five selectable fan speeds by selecting quiet mode the sound pressure level can be reduced down to an unobtrusive 25 dB(A).
Titanium Apatite Filter - Indoor Air Quality (IAQ) Protection
Micron-scale fibers trap dust while titanium apatite absorbs organic contaminants such as bacteria and viruses. In addition, the titanium oxide is activated by natural light, allowing it to break down and eliminate odours. The filter effectively deactivates bacteria and viruses. It lasts for three years without replacement if washed about once every six months.
Titanium Oxide
• Photocatalytic deodorizing filter
• Mechanism of photocatalyst:
- Titanium Oxide is activated by exposure to light.
- Becomes highly oxidative.
- Dissolves absorbed substances into harmless water
(H2O) and carbon dioxide (CO2).
• Absorption of dangerous airbone particles like dust, pollen
and cigarette smoke.
• Dissolves odour, bacteria and virus.
Absorption power is more than doubled, dissolution force is increased
Microchannel Heat Exchanger (MCHE):
Microchannel coil is constructed utilizing all-aluminium brazed fin which is metallurgically bonded to a series of multiple parallel flow microchannels that have been optimized to increase heat transfer
The heat transter performance can reach 10 - 30% more than standard Microchannel Coil Construction copper tube coil that allow comparable performance to be achieved with a smaller coil microchannel coil design.
Improved Heat Transfer Performance
Improved Durability
Improved Corrosion Resistance
Reduced Refrigerant Charge
Lower Weight.
Improved Corrosion Resistance
The use of two dissimilar materials in Cu-Al coil are exposed to premature corrosion by their nature due to the galvanic couple inherent. Comparatively, the mono-metal Aluminium MCHX coil minimizing the possibility of galvanic corrosion.
The Salt Spray Test below indicates that both Hydrophilic Coated Cu-Al coil and zinc enriched Microchannel coil exceeds the minimum test duration criteria, hence maximizing system reliability.
Reduced Refrigerant Charge
Due to its effective design, microchannel coil can be built with smaller volume, thus lowering the refrigerant charge by more than 30%, subjected to model specification.
Lower Weight
Due to its effective design, microchannel coil can be built with smaller volume, thus lowering the refrigerant charge by more than 30%, subjected to model specification.
