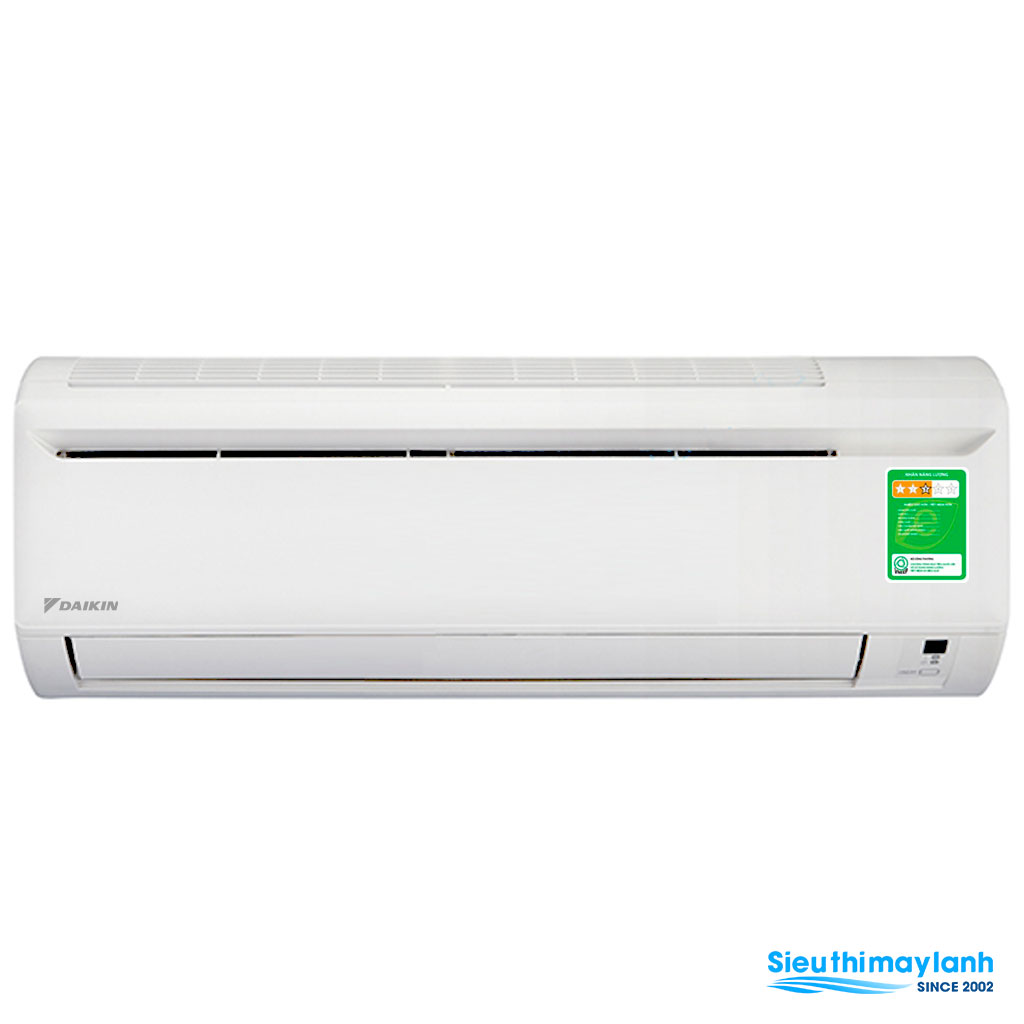

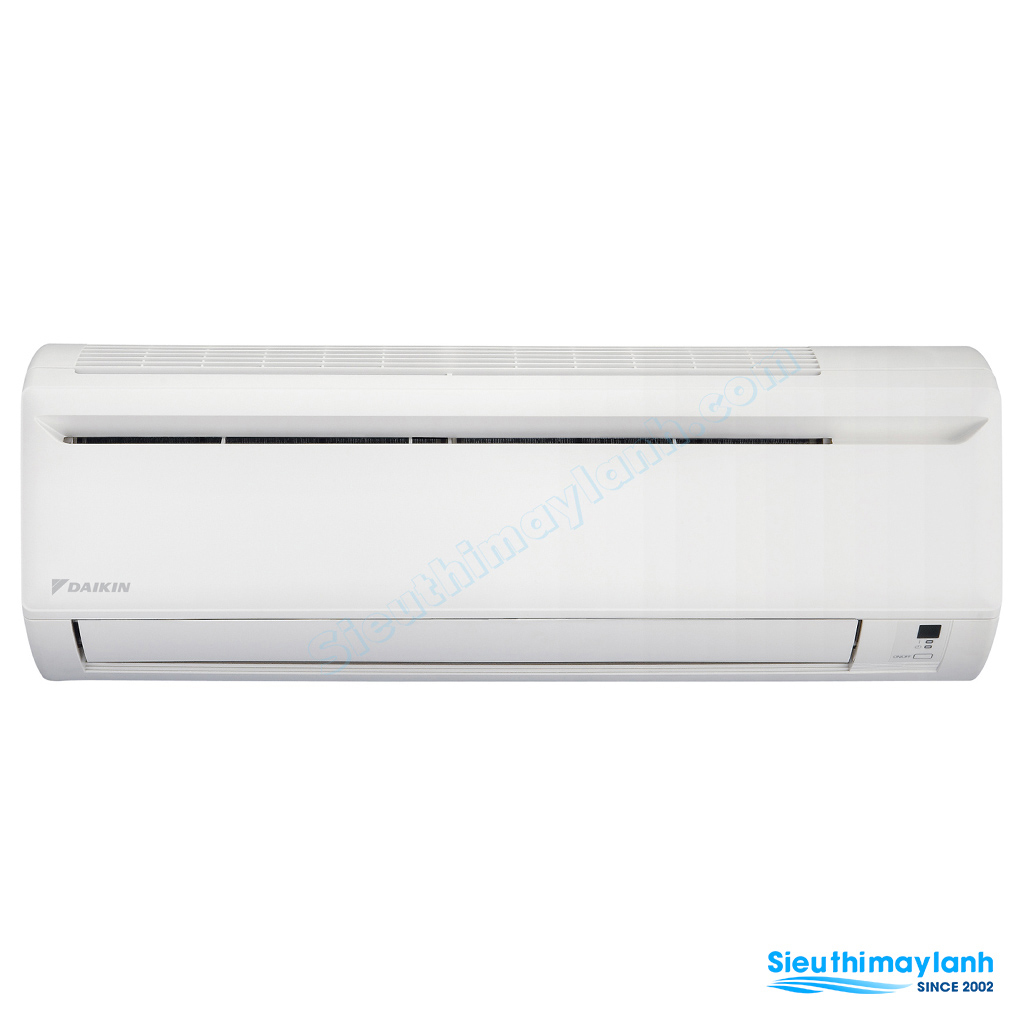

Daikin Air Conditioner FTV50BXV1V (2.0Hp)

Daikin Air Conditioner FTV50BXV1V (2.0Hp)

14,400,000
4 công suất làm lạnh. Bạn đang chọn 2.0 Hp
Phí vật tư có thể phát sinh: 1,125,000đ. Xem chi tiết vật tư.

Email: kinhdoanh@sieuthimaylanh.com
(Open 08. am-17.pm everyday)
Warranty
02 years for components
05 years for compressor
Capacity
Air Conditioner 2.0 HP
Type
Non-Inverter Air Conditioner
Refrigerant
Gas R32
Specifications
Made in:Japanese brand, Made in Malaysia
Refrigerant:R32
Type:Non - Inverter AC - Cooling Only
Cooling Capacity:2.0 Hp - 18.500 Btu/h - 5.42KW
Use For Room:Room area 24 - 30 m² or volume 72 - 90 m³ ( Suitable for living room, office )
Power Input (Ph/V/Hz):1 Phase, 220 - 240 V, 50Hz
Power consumption (kW):1,8 KW
Refrigerant/ Liquid Pipe Diameter (mm):6.35 / 12.7
Maximum Pipe Length:30 (m)
Maximum Elevation Length:15 (m)
Cooling Seasonal Performance Factor (CSPF):3.20
Energy Efficiency Level:3 start
Features:Uniform air distribution,
Quiet operation,
Easy maintenance,
Stylish panel,
Turbo mode,
With Titanium Apatite filter,
Low sound level
Indoor Unit
Indoor Unit Model:FTV50BXV1V
Indoor Unit Dimensions (mm):310 x 1,124 x 237 (mm)
Indoor Unit Net Weight (Kg):14 (kg)
Outdoor Unit
Outdoor Unit Model:RV50BXV1V
Outdoor Unit Dimensions (mm):651 x 855 x 328 (mm)
Outdoor Unit Net Weight (Kg):41 (kg)
Description

FTV Series

A standard wall mounted type air conditioner using R-32 refrigerant. This stylish flat panel air conditioner brings you comfort.

Advantages Of R32 Refrigerant

  • “ZERO” Ozone Layer Depletion
  • Easy To Recycle & Reuse
  • Lower Global Warming Impact
  • Higher Energy Efficiency

pic_r-32_hfc_100year

R32 refrigerant is a solution to tackle global warming with higher efficiency and perfomance. R32 refrigerant has the favorable global warming potential (GWP) and reduce in charge amount. With this, CO2  emission can be reduced by 75%.

Lower Global Warming Potential (GWP)

R32 has lower global warming impact with ZERO ozone layer depletion.

r32_refrigerant_lower_HCFC

Higher Efficiency, Better Performance
R32 has higher energy efficiency as a result of lower fluid resistance.
R32 has better performance due to better heat transfer over R22 and R410A.

r32_refrigerant_higher_efficiency_cost_saving

Stylish Panel
Ideal blend of style and function. Easier cleaning by just wiping the panel. This ensures the air-conditioner looks brand new at all time.

Quick cooling

daikin_ac_turbo-mode
Using turbo function, the air-conditioner will run at MAX speed for 20 minutes. This enables the set temperature to be achieved faster.
Sleep Mode

daiki_ac_ftv_sleep-mode_m
Once activated, the set temperature will increase gradually according to normal sleeping temperature patterns.
Lower Sound Level

daikin_ac_lower-sound-level
Five selectable fan speeds by selecting quiet mode the sound pressure level can be reduced down to an unobtrusive 25 dB(A).


Titanium Apatite Filter - Indoor Air Quality (IAQ) Protection

Micron-scale fibers trap dust while titanium apatite absorbs organic contaminants such as bacteria and viruses. In addition, the titanium oxide is activated by natural light, allowing it to break down and eliminate odours. The filter effectively deactivates bacteria and viruses. It lasts for three years without replacement if washed about once every six months.

daikin_ac_titanium_oxide

Titanium Oxide
• Photocatalytic deodorizing filter
• Mechanism of photocatalyst:
 - Titanium Oxide is activated by exposure to light.
 - Becomes highly oxidative.
 - Dissolves absorbed substances into harmless water
 (H2O) and carbon dioxide (CO2).
• Absorption of dangerous airbone particles like dust, pollen
 and cigarette smoke.
• Dissolves odour, bacteria and virus.

Absorption power is more than doubled, dissolution force is increased

daikin_ac_oxide_titanium

Microchannel Heat Exchanger (MCHE):

Microchannel coil is constructed utilizing all-aluminium brazed fin which is metallurgically bonded to a series of multiple parallel flow microchannels that have been optimized to increase heat transfer

daikin_ac_mchx

The heat transter performance can reach 10 - 30% more than standard Microchannel Coil Construction copper tube coil that allow comparable performance to be achieved with a smaller coil microchannel coil design.
Improved Heat Transfer Performance
Improved Durability
Improved Corrosion Resistance
Reduced Refrigerant Charge
Lower Weight.

Improved Corrosion Resistance

The use of two dissimilar materials in Cu-Al coil are exposed to premature corrosion by their nature due to the galvanic couple inherent. Comparatively, the mono-metal Aluminium MCHX coil minimizing the possibility of galvanic corrosion.
The Salt Spray Test below indicates that both Hydrophilic Coated Cu-Al coil and zinc enriched Microchannel coil exceeds the minimum test duration criteria, hence maximizing system reliability.

daikin_ac_mchx_test

Reduced Refrigerant Charge
Due to its effective design, microchannel coil can be built with smaller volume, thus lowering the refrigerant charge by more than 30%, subjected to model specification.
Lower Weight
Due to its effective design, microchannel coil can be built with smaller volume, thus lowering the refrigerant charge by more than 30%, subjected to model specification.

Specification for Wall Mounted - Cooling only (R32) - FTV series

ftv_series_specs
