Packaged Air Conditioners
Success at research facilities and factories often hinges on strict control of air temperature and quality. To these environments, Daikin offers an abundant range of packaged air conditioners for precise control of air and temperature to help preserve accurate results and product quality.
Daikin Advantages
Energy Saving
Using advanced inverter and heat pump technologies increases efficiency and reduces energy consumption.
Wide Range of Solutions
Daikin provides a wide range of applications that require high precision in temperature control and air quality.
Control by Zone / Area
Daikin packaged air conditioners combine with ducts to distribute air only to zones and areas where needed.
Durability
Heat exchange fins provided with anti-corrosion treatment (Applies to all outdoor units)
To achieve increased durability by improved resistance to salt corrosion and atmospheric pollution, coated PE fins (with special acryl pretreatment) are used for the heat exchanger of the outdoor unit
Design flexibility
Designed for long refrigerant piping. 50 m maximum length and 30 m maximum level difference to cover medium- and large-scale building needs.
4-direction piping affords more freedom
Piping can be run from the front, bottom, right or rear surface according to how the unit is installed.
In case of RUR08–20N, piping can be drawn out in two directions-front, and under side.of layout (Applies to RUR05N/06N)

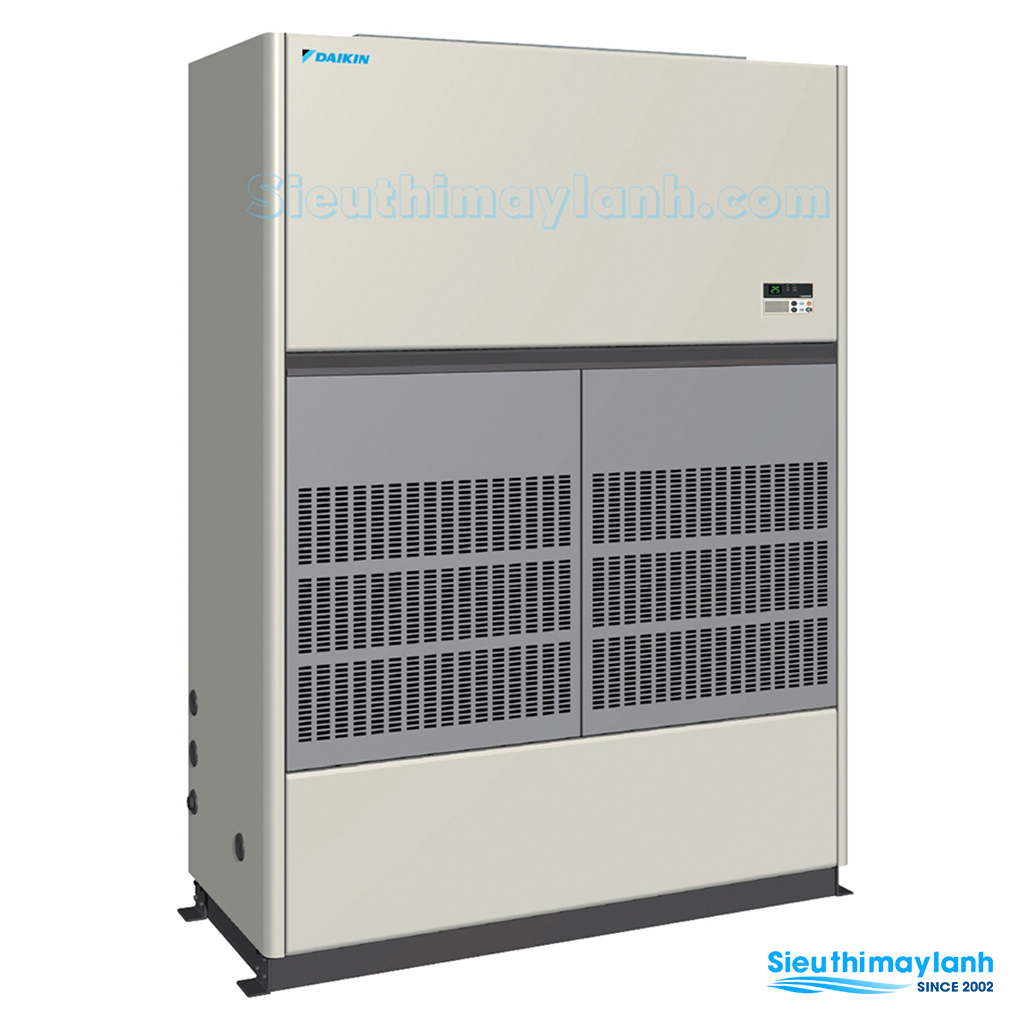

Floor Standing Duct Connection Type
- Comfortable air conditioning of the entire factory by connecting a blow duct at the top of the indoor unit
- Installation is next to walls, so units will not affect the factory layout even if the changes are made
- Flexible desaign for long refrigerant piping
- Equipped with scroll compressor for quiet operation
- Easy operation digital remote control comes standard with indoor unit
- Heat exchange fins provided with anti-corrosion treatment
- Installation space is saved thanks to a more compact outdoor unit. This also makes it easier to install.

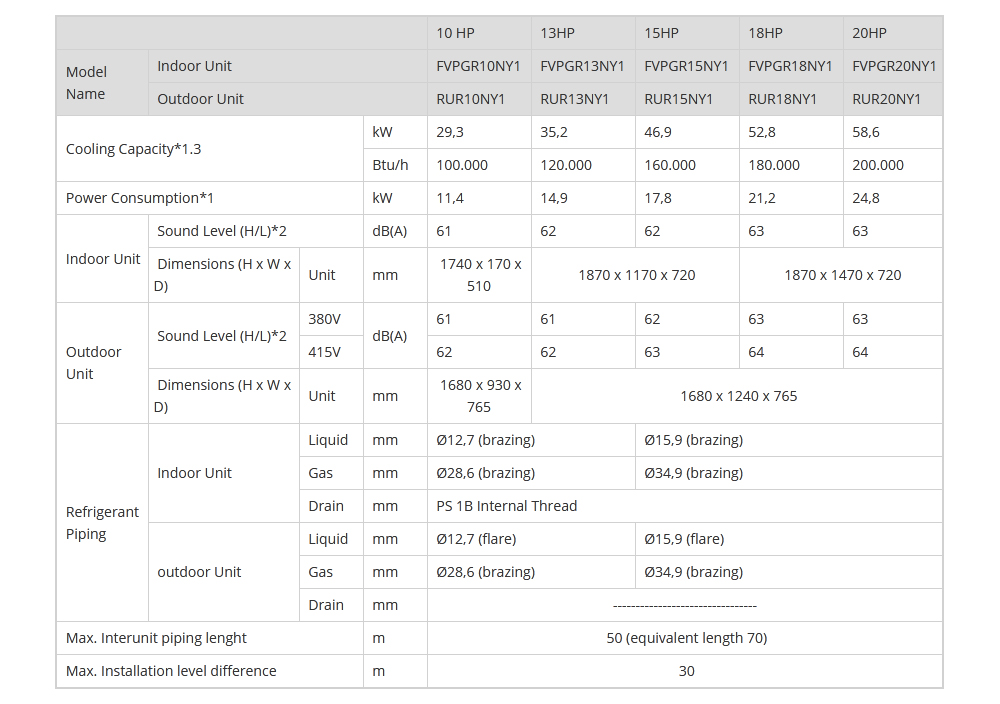

Note:
*1Rated cooling capacities are based on the following conditions: Return air temp., 27°CDB, 19.5°CWB; outdoor temp. 35°CDB. Equiv. refrigeration piping, 5 m (horizontal).
*2Anechoic chamber conversion value, measured according to JIS parameters and criteria. During operation these values are somewhat higher owing to ambient conditions.
*3Capacity includes indoor fan motor heat.
