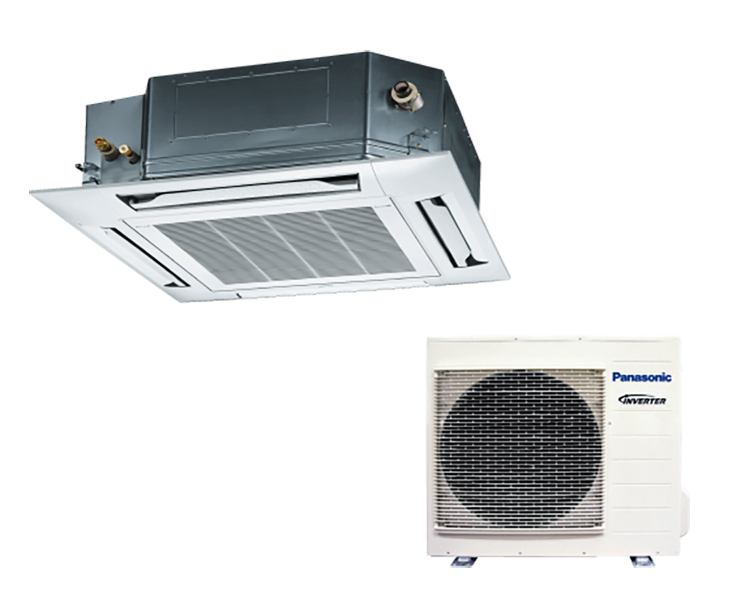

Panasonic Ceiling Cassette AC Inverter CS-T19KB4H52 (2.0Hp)
Panasonic Ceiling Cassette AC Inverter CS-T19KB4H52 (2.0Hp)
Panasonic Ceiling Cassette AC Inverter CS-T19KB4H52 (2.0Hp)
Panasonic Ceiling Cassette AC Inverter CS-T19KB4H52 (2.0Hp)

Panasonic Ceiling Cassette AC Inverter CS-T19KB4H52 (2.0Hp)

32,350,000
4 công suất làm lạnh. Bạn đang chọn 2.0 Hp
Phí vật tư có thể phát sinh: 1,325,000đ. Xem chi tiết vật tư.

Email: kinhdoanh@sieuthimaylanh.com
(Open 08. am-17.pm everyday)
Warranty
01 year
Capacity
Air Conditioner 2.0 HP
Type
Inverter Air Conditioner
Refrigerant
Gas R410A
Specifications
Made in:Brand of Japanese, Made in Malaysia
Refrigerant:R410A
Type:Inverter AC - Cooling Only
Cooling Capacity:2.0 Hp - 19.100 Btu/h
Use For Room:Room Area 24 - 27 m² or Volume 72 - 81 m³ ( Suitable for living room, office )
Power Input (Ph/V/Hz):1 Phase, 220 - 240 V, 50Hz
Power consumption (kW):1,55 Kw (0,55 - 2,2)
Refrigerant/ Liquid Pipe Diameter (mm):9.52 / 15.88
Maximum Pipe Length:30 (m)
Maximum Elevation Length:20 (m)
Energy Efficiency Ratio (EER):3.61
Indoor Unit
Indoor Unit Model:CS-T19KB4H52

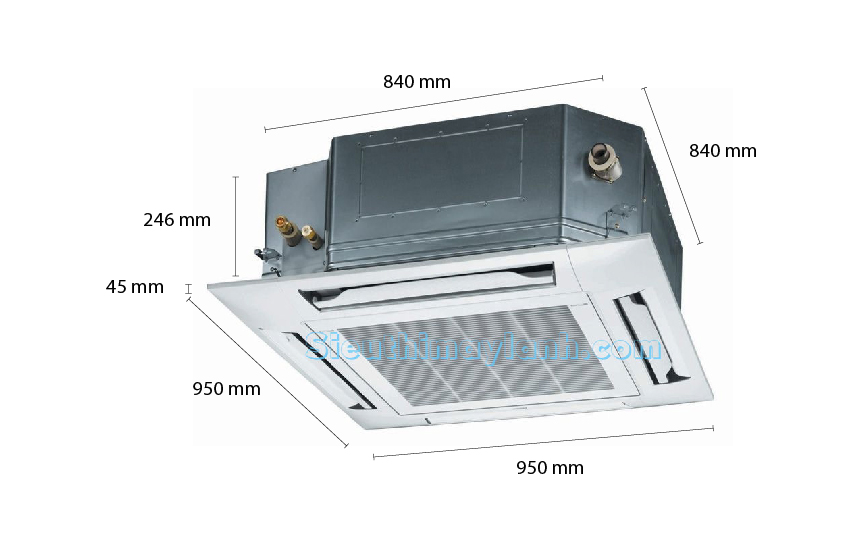

Indoor Unit Dimensions (mm):246 x 840 x 840 (mm)
Indoor Unit Net Weight (Kg):26 (kg)
Panel
Panel Dimensions (mm):45 x 950 x 950 (mm)
Panel Net Weight (Kg):4.5 (kg)
Outdoor Unit
Outdoor Unit Model:CU-YT19KBH52
Outdoor Unit Dimensions (mm):795 x 875 x 320 (mm)
Outdoor Unit Net Weight (Kg):65 (kg)
Description

Inverter Cassette

Panasonic Cassette types are suitable for commercial applications such as restaurants, hotels and offices. Its has four vanes for 4-way direction air flow, thereby providing wide and even cooling.

Panasonic-CS-T19KB4H52

Technical Focus

• 950 mm Square Panel for All Models (Optional: CZ-BT03P)
• Weekly Timer
(Wired Remote Controller only)
• 24-Hour On/Off Real Setting Timer
• Odour Wash
• Economy Mode
• Random Auto Restart
• Auto Fan Mode
• Dry Mode Function
• Self-Diagnostic Function
• Optional: SUPER alleru-buster filter (CZ-SA11P)
• Selectable Thermo Sensor
(Wired Remote Controller Only)

Panasonic-CS-T19KB4H52-2

Comfort

Three Airflow Patterns for Extra Comfort.

Panasonic-CS-T19KB4H52-3

Easy Installation

Drain hose can be elevated 750 mm from the base of the unit simply by connecting an elbow. This adds to ease of drain piping work, and flexibility in locating the indoor unit.

Panasonic-CS-T19KB4H52-4

Easy Maintenance and Cleaning

For optimum comfort, we recommend cleaning the air filter every 1.5 months.
