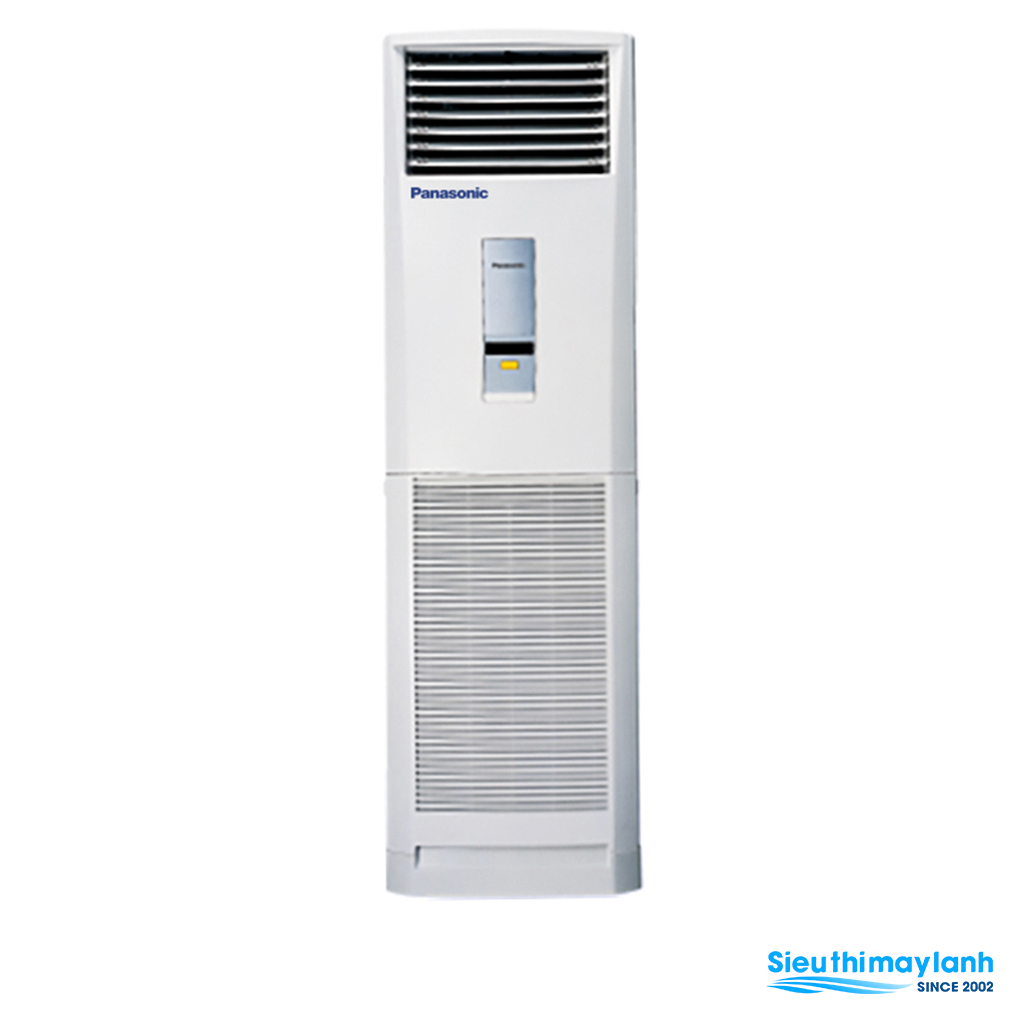

Panasonic Floor Standing AC CS-C28FFH (3.0Hp)

Panasonic Floor Standing AC CS-C28FFH (3.0Hp)

28,950,000
3 công suất làm lạnh. Bạn đang chọn 3.0 Hp
Phí vật tư có thể phát sinh: 1,165,000đ. Xem chi tiết vật tư.

Email: kinhdoanh@sieuthimaylanh.com
(Open 08. am-17.pm everyday)
Warranty
01 year
Capacity
Air Conditioner 3.0 HP
Type
Non-Inverter Air Conditioner
Refrigerant
Gas R22
Specifications
Made in:Brand of Japanese, Made in China
Refrigerant:R22
Type:Non - Inverter AC - Cooling Only
Cooling Capacity:3.0 Hp - 24.600 Btu/h
Use For Room:Room Area 36 - 40 m² or Volume 108 - 120 m³ ( Suitable for living room, office )
Power Input (Ph/V/Hz):1 Phase, 220 - 240 V, 50Hz
Power consumption (kW):2,6 Kw (2,6 - 2,65)
Refrigerant/ Liquid Pipe Diameter (mm):9.52 / 15.88
Maximum Pipe Length:15 (m)
Maximum Elevation Length:10 (m)
Energy Efficiency Ratio (EER):2.75
Features:· Air conditioner with one-way standing · Odor removal function · Moisture removal mode · Automatic operation (cooling)
Indoor Unit
Indoor Unit Model:CS-C28FFH
Indoor Unit Dimensions (mm):1.680 x 500 x 298 (mm)
Indoor Unit Net Weight (Kg):35 (kg)
Outdoor Unit
Outdoor Unit Model:CU-C28FFH
Outdoor Unit Dimensions (mm):795 x 900 x 320 (mm)
Outdoor Unit Net Weight (Kg):55 (kg)
Description
  • Floor standing
  • Cooling Floor Standing
  • Odour-removing Function
  • Soft Dry Operation Mode
  • Automatic Operation Mode (Cooling)

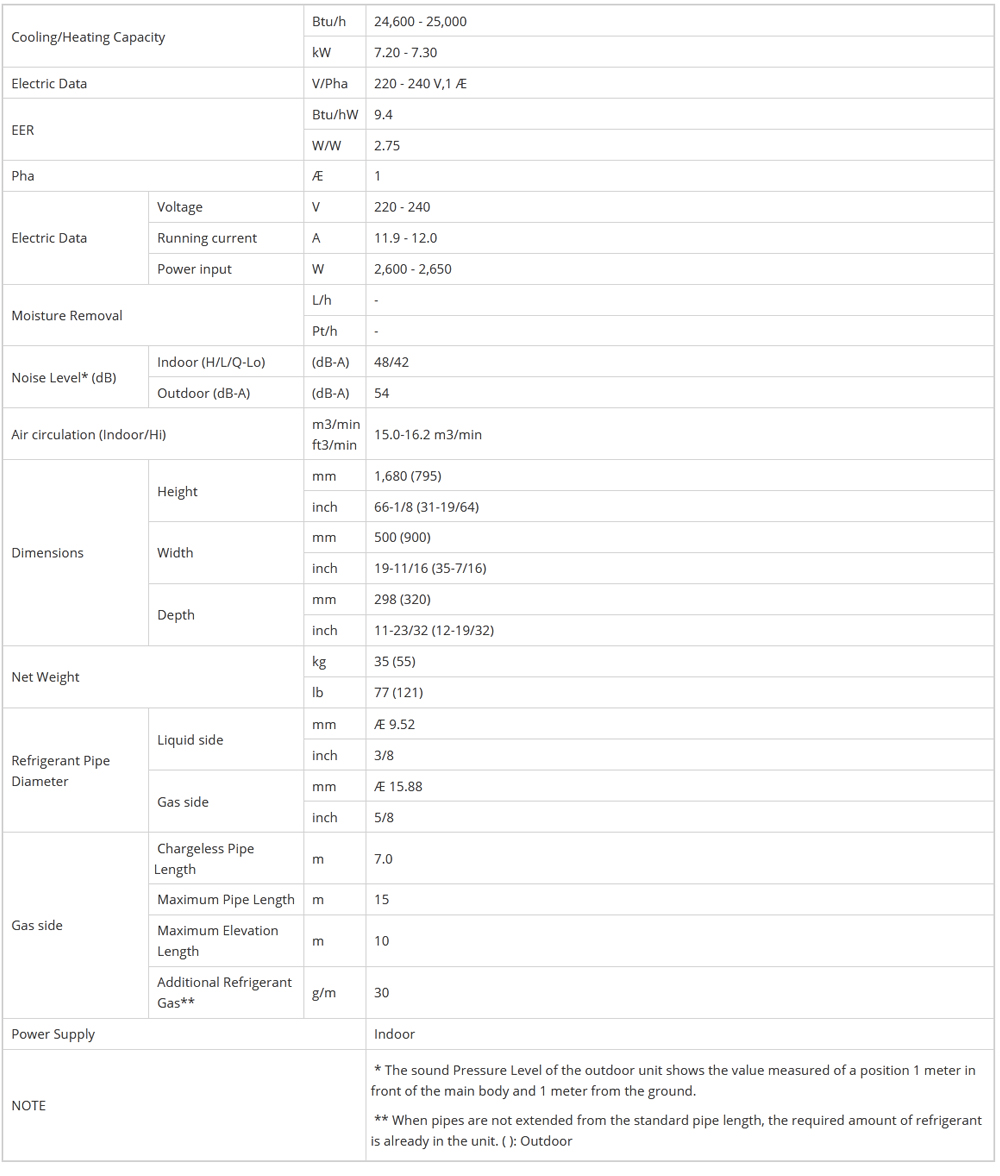

 Cooling/Heating Capacity Btu/h 24,600 - 25,000
 kW 7.20 - 7.30
 Electric Data V/Pha 220 - 240 V,1 Æ
 EER Btu/hW 9.4
 W/W 2.75
 Pha Æ 1
 Electric Data Voltage V 220 - 240
 Running current A 11.9 - 12.0
 Power input W 2,600 - 2,650
 Moisture Removal L/h -
 Pt/h -
 Noise Level* (dB) Indoor (H/L/Q-Lo) (dB-A) 48/42
 Outdoor (dB-A) (dB-A) 54
 Air circulation (Indoor/Hi) m3/min
 ft3/min
 15.0-16.2 m3/min
 Dimensions Height mm 1,680 (795)
 inch 66-1/8 (31-19/64)
 Width mm 500 (900)
 inch 19-11/16 (35-7/16)
 Depth mm 298 (320)
 inch 11-23/32 (12-19/32)
 Net Weight kg 35 (55)
 lb 77 (121)
 Refrigerant Pipe   Diameter Liquid side mm Æ 9.52
 inch 3/8
 Gas side mm Æ 15.88
 inch 5/8
 Gas side Chargeless Pipe Length m 7.0
 Maximum Pipe Length m 15
 Maximum Elevation   Length m 10
 Additional Refrigerant   Gas** g/m 30
 Power Supply Indoor
 NOTE

 * The sound Pressure Level of the outdoor unit shows the value measured of a position 1 meter in front of the main body and 1 meter from the ground.

 ** When pipes are not extended from the standard pipe length, the required amount of refrigerant is already in the unit. ( ): Outdoor
