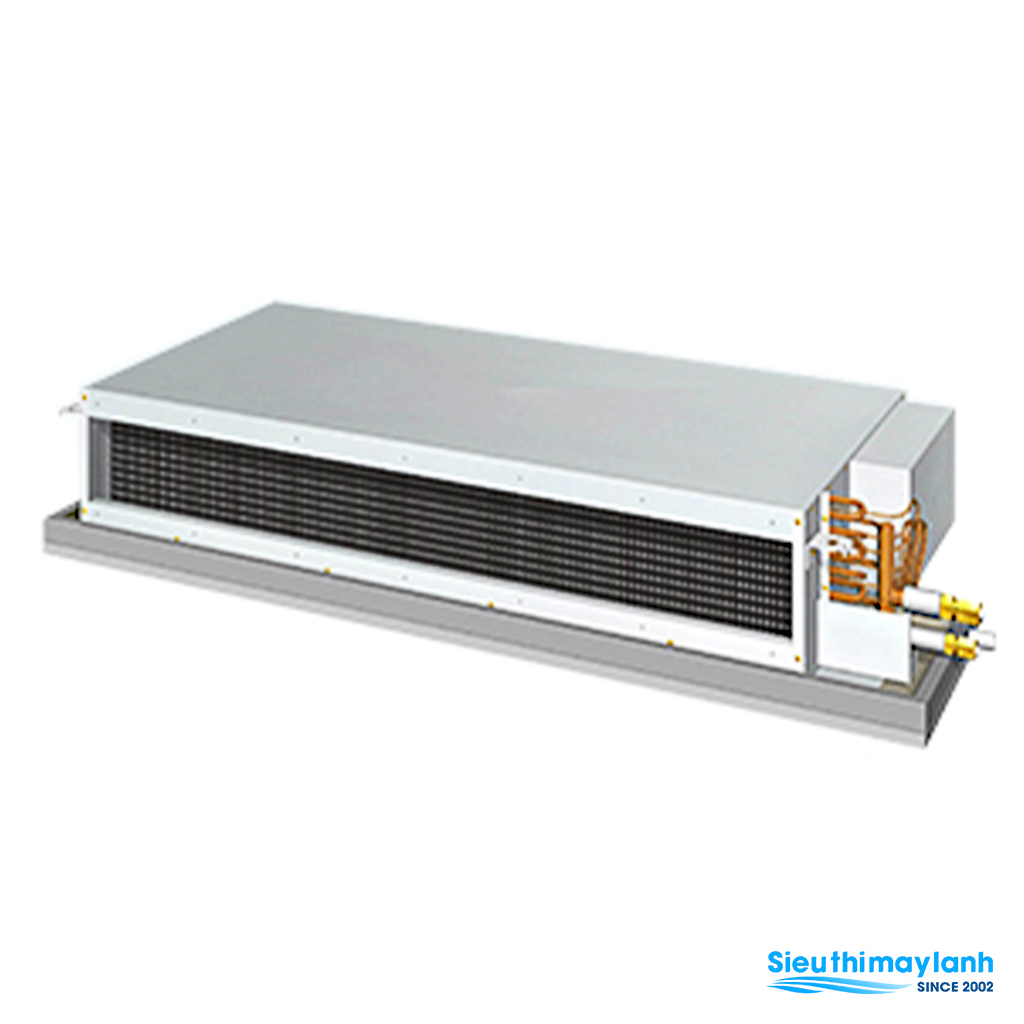

Daikin Ceiling Duct AC FCNQ42MV1 (5.0Hp)

Daikin Ceiling Duct AC FCNQ42MV1 (5.0Hp)

Giá: liên hệ
Phí vật tư có thể phát sinh: 2,287,000đ. Xem chi tiết vật tư.

Email: kinhdoanh@sieuthimaylanh.com
(Open 08. am-17.pm everyday)
Warranty
02 years for components
05 years for compressor
Capacity
Air Conditioner 5.0 HP
Type
Non-Inverter Air Conditioner
Refrigerant
Gas R410A
Specifications
Made in:Brand of Japanese, Made in Thailand
Refrigerant:R410A
Type:Non - Inverter AC - Cooling Only
Cooling Capacity:5.0Hp - 42600 Btu/h
Use For Room:Room area 64 - 67 m² or volume 192 - 201 m³
Power Input (Ph/V/Hz):3 Phase, 380 - 415 V, 50Hz
Power consumption (kW):4.15 Kw
Refrigerant/ Liquid Pipe Diameter (mm):9.5 / 15.9 mm
Maximum Pipe Length:70 m
Maximum Elevation Length:30 m
Indoor Unit
Indoor Unit Model:FCNQ42MV1
Indoor Unit Dimensions (mm):298 x 840 x 840 mm
Indoor Unit Net Weight (Kg):52 Kg
Outdoor Unit
Outdoor Unit Model:RNQ42MY1
Outdoor Unit Dimensions (mm):1,345 x 900 x 320 mm
Outdoor Unit Net Weight (Kg):107 Kg
Description

Wide Variety of Indoor Units

Daikin meets your needs with full lineup for various types of indoor units (Ceiling mounted cassette type, Ceiling suspended type, Duct connection type and Floor standing type) and power supplies.

Navigation Remote with Simple Operation, Weekly Schedule Timer

Simple, modern designed with fresh white color matches your interior design.

Easy to use and smoother operation by following the indications

pic_navigation_remote_with_simple_operation_weekly_schedule_timer

Anti-Corrosion Treatment for Outdoor Unit Heat Exchanger

To achieve increased durability by improved resistance to salt corrosion and atmospheric pollution, coated PE fins (with special acryl pretreatment) are used for the heat exchanger of the outdoor unit.

daikin_FCQ50KA_7
Quiet Operation
 Depending on types of indoor units, sound level can range from
32 dB(A) to 45 dB(A). Outdoor unit operation sound is from
48 dB(A) to 58 dB(A).
This data is based on “Examples of Sound Levels”, Ministry of the Environment, Japan, November 12, 2002.
pic_quiet_operation

Easy Installation and Maintenance

Pre charged for up to 15 m (Applies to RNQ30-48M)

4-direction piping offers greater layout freedom (Applies to RNQ30-48M).

pic_easy_installation_and_maintenance
