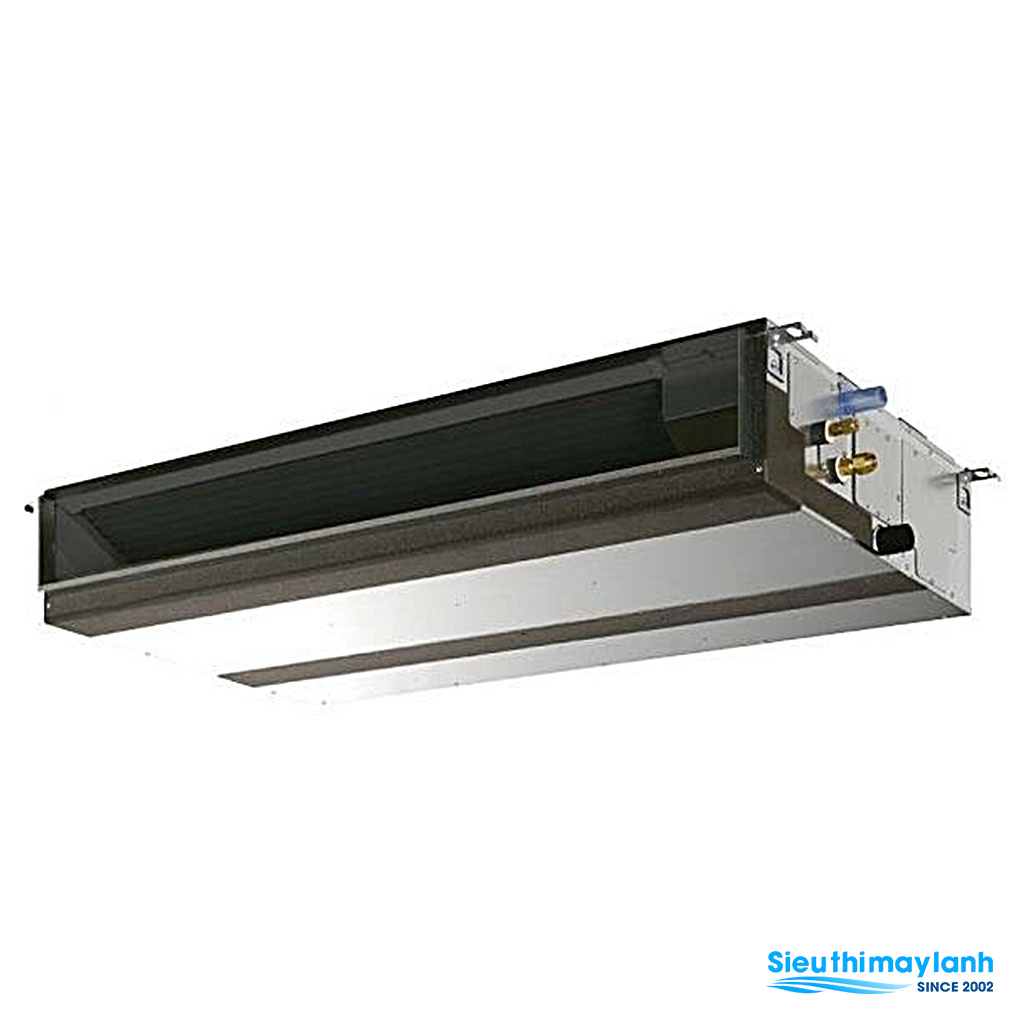

Compact design with a height of only 250mm
The body design with a height of only 250mm (9-7 / 8 in.) (All models) allows installation in ceiling spaces from 280 mm (11-in.).
External static pressure
Five-stage external static pressure settings provide flexibility for duct extension, branching, and air outlet configuration and are adjustable to meet different application conditions. A static pressure ranges to a maximum of 150Pa.
Drain Pump Option
The line-up consists of two types, models with or without a built-in drain pump allowing more freedom in piping layout design.
Optional inlet location of the wind
The fresh air intake position can select from below or from behind the indoor unit by positioning the cabinet and air filter. (The factory default is the wind in from the rear.)
Optional accessories
Specifications
