Mitsubishi Heavy Air Conditioner Inverter SRK18YN-S5 (2.0Hp)
Mitsubishi Heavy Air Conditioner Inverter SRK18YN-S5 (2.0Hp)
Mitsubishi Heavy Air Conditioner Inverter SRK18YN-S5 (2.0Hp)
Mitsubishi Heavy Air Conditioner Inverter SRK18YN-S5 (2.0Hp)
Mitsubishi Heavy Air Conditioner Inverter SRK18YN-S5 (2.0Hp)
Mitsubishi Heavy Air Conditioner Inverter SRK18YN-S5 (2.0Hp)

Mitsubishi Heavy Air Conditioner Inverter SRK18YN-S5 (2.0Hp)

17,800,000
3 công suất làm lạnh. Bạn đang chọn 2.0 Hp
Phí vật tư có thể phát sinh: 1,125,000đ. Xem chi tiết vật tư.

Email: kinhdoanh@sieuthimaylanh.com
(Open 08. am-17.pm everyday)
Warranty
02 years for components
05 years for compressor
Capacity
Air Conditioner 2.0 HP
Type
Inverter Air Conditioner
Refrigerant
Gas R410A
Specifications
Made in:Japanese brand, Made in Thailand
Refrigerant:R410A
Type:Inverter AC - Cooling Only
Cooling Capacity:2.0 Hp - 17.060 Btu/h
Use For Room:Room Area 24 - 30 m² or Volume 72 - 90 m³ ( Suitable for Bedroom)
Power Input (Ph/V/Hz):1 phase, 220 - 240V, 50Hz
Power consumption (kW):1,64 Kw (0,22 - 1,96)
Refrigerant/ Liquid Pipe Diameter (mm):6.35 / 12.7
Energy Efficiency Level:5 star
Indoor Unit
Indoor Unit Model:SRK18YN-S5
Indoor Unit Dimensions (mm):262 x 769 x 210 (mm)
Indoor Unit Net Weight (Kg):7.5 (kg)
Outdoor Unit
Outdoor Unit Model:SRC18YN-S5
Outdoor Unit Dimensions (mm):595 x 780 x 290 (mm)
Outdoor Unit Net Weight (Kg):39.5 (kg)
Description

WALL MOUNTED DULUXE YN - MITSUBISHI HEAVY AIR CONDITIONER SRK18YN-S5

50% Saving power compared with standard model 1*
Saving energy index CSPF : 5.036 - Achieving energy level 5*

Clean Operation/Filter

Mitsubishi_Heavy_SRK13YN-S5_11
Natural solar Filter
It keeps air fresh by deodorizing the molecules causing odor. The deodorizing ability can be easily restored simply by cleaning and exposing to the sunlight.

SRK18YN-S5

Comfortable Functions

Mitsubishi_Heavy_SRK13YN-S5_12

Fuzzy auto mode
Automatically, the unit determines its operating mode and adjusts the inverter frequency..
Automatic Operation
The air conditioner automatically selects from among heating, cooling and dry operations.
" HI POWER" operation
The unit can operation continuously in " HI POWER" mode for 15 minutes. This mode is convenient to reach the desired temperature quickly.

COMFORTABLE AIR FLOW FUNCTIONS

Mitsubishi_Heavy_SRK13YN-S5_13

Auto flap mode
Whatever the operating mode is the unit automatically selects the optimal angle.
Memory flap
While the flap is swinging it can be stopped at any angle desired. The flap returns to  the position that it was in when operation last stopped.
Up/Down flap swing
The UP/DOWN flap can be adjust to the preferred operations angle, ranging from horizontal to perpendicular.

Maintenance & Prevention Funtions

Mitsubishi_Heavy_SRK13YN-S5_14

Self-Diagnostic Funtion
In the case that the air conditioner malfunctions an internal microcomuter automatically runs a self-diagnosis.
One Action Filter
For easy maintenace filter can be taken off and put on easylu by just 1 slide action

CONVENIENCE & ECONOMY FUNCTIONS

Mitsubishi_Heavy_SRK19CLS-5-4

Economy Mode
The unit realizes effective energy saving operation, while still keepiing a comfortable cooling and heating.
Dry operation
The unit dehumidifies the room by intermittent cooling operation.
Off timer
the unit stops autpmatically at the set time.
On timer
This facility enables the operation to start a little earlier, so thât the room approaches optimum temperature at ON time when te operation is started by ON _TMER.
Sleep Mode
The room temperature is automatically controlled during the set sleep mode period, ensuring that room temperature will not get too cold or too hot
24-hour On/Off Programmable Timer
By combining a start timer with a stop timer, you can register two timer operations a day. Once set, timers will faithfully start or stop the system at a specified time of the day repeatedly.

OTHERS

Mitsubishi_Heavy_SRK10YL_16

Back-up Switch
On the main unit, there is a backup on/off switch, which is useful when you can't use remote control or batteries are

Auto Restart Funtion
Power blackout auto restart function is a function that records, the operational status of the air-conditioner immediately prior to it being switched off by a power cut and the automatically resumes operations at that point after the power has been restored.

Luminous Button
With wireless " Luminous" remote controls that even " glow in the dark" , it is possible to operate all desired functions of the unit with the click of a button.
24 -hour ION
Tourmaline-coated sheet generates negatives ions around the clock. Even when the air conditioner is not running, it generates as many negative ions as a forest, stream or fall does, allowing you  to experience them without incurring any electricity charges.
Mitsubishi_Heavy_SRK13YN-S5_7

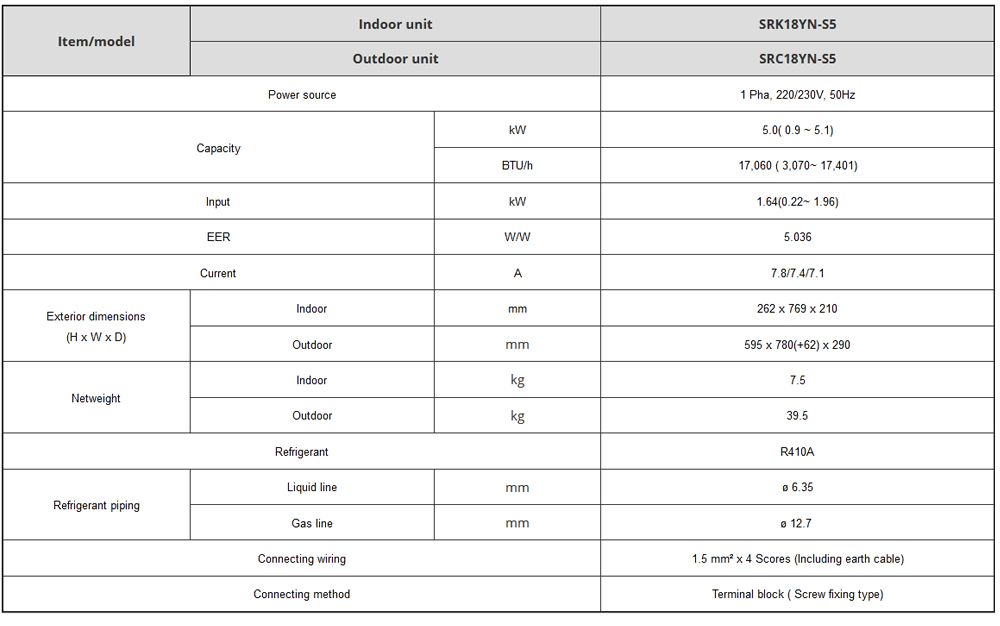

Item/modelIndoor unitSRK18YN-S5
Outdoor unitSRC18YN-S5
Power source1 Pha, 220/230V, 50Hz
CapacitykW5.0( 0.9 ~ 5.1)
BTU/h17,060 ( 3,070~ 17,401)
InputkW1.64(0.22~ 1.96)
EERW/W5.036
CurrentA7.8/7.4/7.1
Exterior dimensions
(H x W x D)
Indoormm262 x 769 x 210
Outdoormm595 x 780(+62) x 290
NetweightIndoorkg7.5
Outdoorkg39.5
RefrigerantR410A
Refrigerant pipingLiquid linemmø 6.35
Gas linemmø 12.7
Connecting wiring1.5 mm² x 4 Scores (Including earth cable)
Connecting methodTerminal block ( Screw fixing type)
