Mitsubishi Heavy Air Conditioner SRK10CRS-S5 (1.0Hp)
Mitsubishi Heavy Air Conditioner SRK10CRS-S5 (1.0Hp)
Mitsubishi Heavy Air Conditioner SRK10CRS-S5 (1.0Hp)

Mitsubishi Heavy Air Conditioner SRK10CRS-S5 (1.0Hp)

7,700,000
2 công suất làm lạnh. Bạn đang chọn 1.0 Hp
Phí vật tư có thể phát sinh: 965,000đ. Xem chi tiết vật tư.

Email: kinhdoanh@sieuthimaylanh.com
(Open 08. am-17.pm everyday)
Warranty
02 years for components
05 years for compressor
Capacity
Air Conditioner 1.0 HP
Type
Non-Inverter Air Conditioner
Refrigerant
Gas R410A
Specifications
Made in:Japanese brand, Made in Thailand
Refrigerant:R410A
Type:Non - Inverter AC - Cooling Only
Cooling Capacity:1.0 Hp - 9.213 Btu/h
Use For Room:Room Area 12 - 15 m² or Volume 36 - 45 m³ ( Suitable for living room, office )
Power Input (Ph/V/Hz):1 phase, 220 - 240V, 50Hz
Power consumption (kW):0,74 Kw
Refrigerant/ Liquid Pipe Diameter (mm):6.35 / 9.52
Energy Efficiency Level:4 star
Indoor Unit
Indoor Unit Model:SRK10CRS-S5
Indoor Unit Dimensions (mm):268 x 790 x 222 (mm)
Indoor Unit Net Weight (Kg):8 (kg)
Outdoor Unit
Outdoor Unit Model:SRC10CRS-S5
Outdoor Unit Dimensions (mm):540 x 780 x 290 (mm)
Outdoor Unit Net Weight (Kg):19 (kg)
Description

WALL MOUNTED SUPPER DULUXE YL : SRK10CRS-S5

40% Saiving power compared with standard model 1*
Saving energy  index CSPF : 4.072 - Achieving energy level  4*

srk10crs

Clean Operation/Filter

Mitsubishi_Heavy_SRK10CRS-S5

Natural enzyme filter
Enzyme used in the filter are naturally occuring lytic enzymes which attack cell walls of microorganisms trapped on the filter and destroy them.
Natural solar Filter
It keeps air fresh by deodorizing the molecules causing odor. The deodorizing ability can be easily restored simply by cleaning and exposing to the sunlight.

Comfortable Functions

Mitsubishi_Heavy_SRK19CLS-5

Automatic Operation
The air conditioner automatically selects from among heating, cooling and dry operations.
" HI POWER" operation
The unit can operation continuously in " HI POWER" mode for 15 minutes. This mode is convenient to reach the desired temperature quickly.

COMFORTABLE AIR FLOW FUNCTIONS

Mitsubishi_Heavy_SRK19CLS-5-2

3D AUTO
One touch progammed and three motors (one vertical working motor + two horizontal working motors) make three independent air flow controls.
Auto flap mode
Whatever the operating mode is the unit automatically selects the optimal angle.
Memory flap
While the flap is swinging it can be stopped at any angle desired. The flap returns to  the position that it was in when operation last stopped.
Up/Down flap swing
The UP/DOWN flap can be adjust to the preferred operations angle, ranging from horizontal to perpendicular.
Lateral swing
It sends a pealsant breeze to a wide range in the room by swinging the louver angle can be fixed at any desired position.
Positioning of installation
You can set the left-right air flow directions when you installed the air conditioner near the side wall by remote controller operation.

Maintenance & Prevention Funtions'

Mitsubishi_Heavy_SRK19CLS-5-3

Self-Diagnostic Funtion
In the case that the air conditioner malfunctions an internal microcomuter automatically runs a self-diagnosis.
Detachable indoor Air Inlet Panel
The air inlet panel on the indoor unit opens the closes easily, making filter cleaning simple. The suction panel can also de removed.

CONVENIENCE & ECONOMY FUNCTIONS

Mitsubishi_Heavy_SRK19CLS-5-4

Economy Mode
The unit realizes effective energy saving operation, while still keepiing a comfortable cooling and heating.
Dry operation
The unit dehumidifies the room by intermittent cooling operation.
Off timer
the unit stops autpmatically at the set time.
On timer
This facility enables the operation to start a little earlier, so thât the room approaches optimum temperature at ON time when te operation is started by ON _TMER.
Sleep Mode
The room temperature is automatically controlled during the set sleep mode period, ensuring that room temperature will not get too cold or too hot
24-hour On/Off Programmable Timer
By combining a start timer with a stop timer, you can register two timer operations a day. Once set, timers will faithfully start or stop the system at a specified time of the day repeatedly.

OTHERS

Mitsubishi_Heavy_SRK10YL_16

Back-up Switch
On the main unit, there is a backup on/off switch, which is useful when you can't use remote control or batteries are
Auto Restart Funtion
Power blackout auto restart function is a function that records, the operational status of the air-conditioner immediately prior to it being switched off by a power cut and the automatically resumes operations at that point after the power has been restored.
Luminous Button
With wireless " Luminous" remote controls that even " glow in the dark" , it is possible to operate all desired functions of the unit with the click of a button.
24 -hour ION
Tourmaline-coated sheet generates negatives ions around the clock. Even when the air conditioner is not running, it generates as many negative ions as a forest, stream or fall does, allowing you  to experience them without incurring any electricity charges.

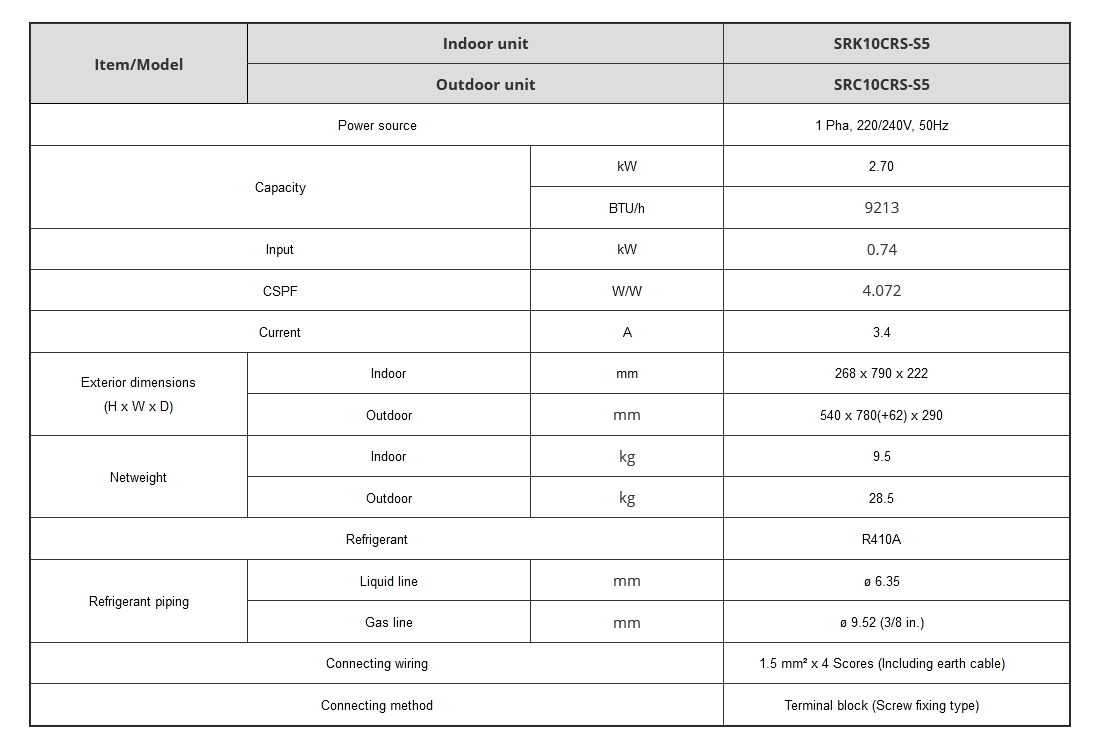

Item/ModelIndoor unitSRK10CRS-S5
Outdoor unitSRC10CRS-S5
Power source1 Pha, 220/240V, 50Hz
CapacitykW2.70
BTU/h9213
InputkW0.74
CSPFW/W4.072
CurrentA3.4
Exterior dimensions
(H x W x D)
Indoormm268 x 790 x 222
Outdoormm540 x 780(+62) x 290
NetweightIndoorkg9.5
Outdoorkg28.5
RefrigerantR410A
Refrigerant pipingLiquid linemmø 6.35
Gas linemmø 9.52 (3/8 in.)
Connecting wiring1.5 mm² x 4 Scores (Including earth cable)
Connecting methodTerminal block (Screw fixing type)
