Mitsubishi Heavy Air Conditioner SRK18CL-5 (2.0Hp)
Mitsubishi Heavy Air Conditioner SRK18CL-5 (2.0Hp)
Mitsubishi Heavy Air Conditioner SRK18CL-5 (2.0Hp)
Mitsubishi Heavy Air Conditioner SRK18CL-5 (2.0Hp)
Mitsubishi Heavy Air Conditioner SRK18CL-5 (2.0Hp)
Mitsubishi Heavy Air Conditioner SRK18CL-5 (2.0Hp)
Mitsubishi Heavy Air Conditioner SRK18CL-5 (2.0Hp)

Mitsubishi Heavy Air Conditioner SRK18CL-5 (2.0Hp)

12,450,000
Phí vật tư có thể phát sinh: 965,000đ. Xem chi tiết vật tư.

Email: kinhdoanh@sieuthimaylanh.com
(Open 08. am-17.pm everyday)
Warranty
02 years for components
05 years for compressor
Capacity
Air Conditioner 2.0 HP
Type
Non-Inverter Air Conditioner
Refrigerant
Gas R22
Specifications
Made in:Japanese brand, Made in Thailand
Refrigerant:R22
Type:Non - Inverter AC - Cooling Only
Cooling Capacity:2.0 Hp - 17.060 Btu/h
Use For Room:Room Area 24 - 30 m² or Volume 72 - 90 m³ ( Suitable for living room, office )
Power Input (Ph/V/Hz):1 phase, 220 - 240V, 50Hz
Power consumption (kW):1,7 Kw
Refrigerant/ Liquid Pipe Diameter (mm):6.35 / 15.88
Energy Efficiency Ratio (EER):2.901
Energy Efficiency Level:3 star
Indoor Unit
Indoor Unit Model:SRK18CL-5
Indoor Unit Dimensions (mm):309 x 890 x 251 (mm)
Indoor Unit Net Weight (Kg):12.8 (kg)
Outdoor Unit
Outdoor Unit Model:SRC18CL-5
Outdoor Unit Dimensions (mm):640 x 850 x 290 (mm)
Outdoor Unit Net Weight (Kg):38 (kg)
Description

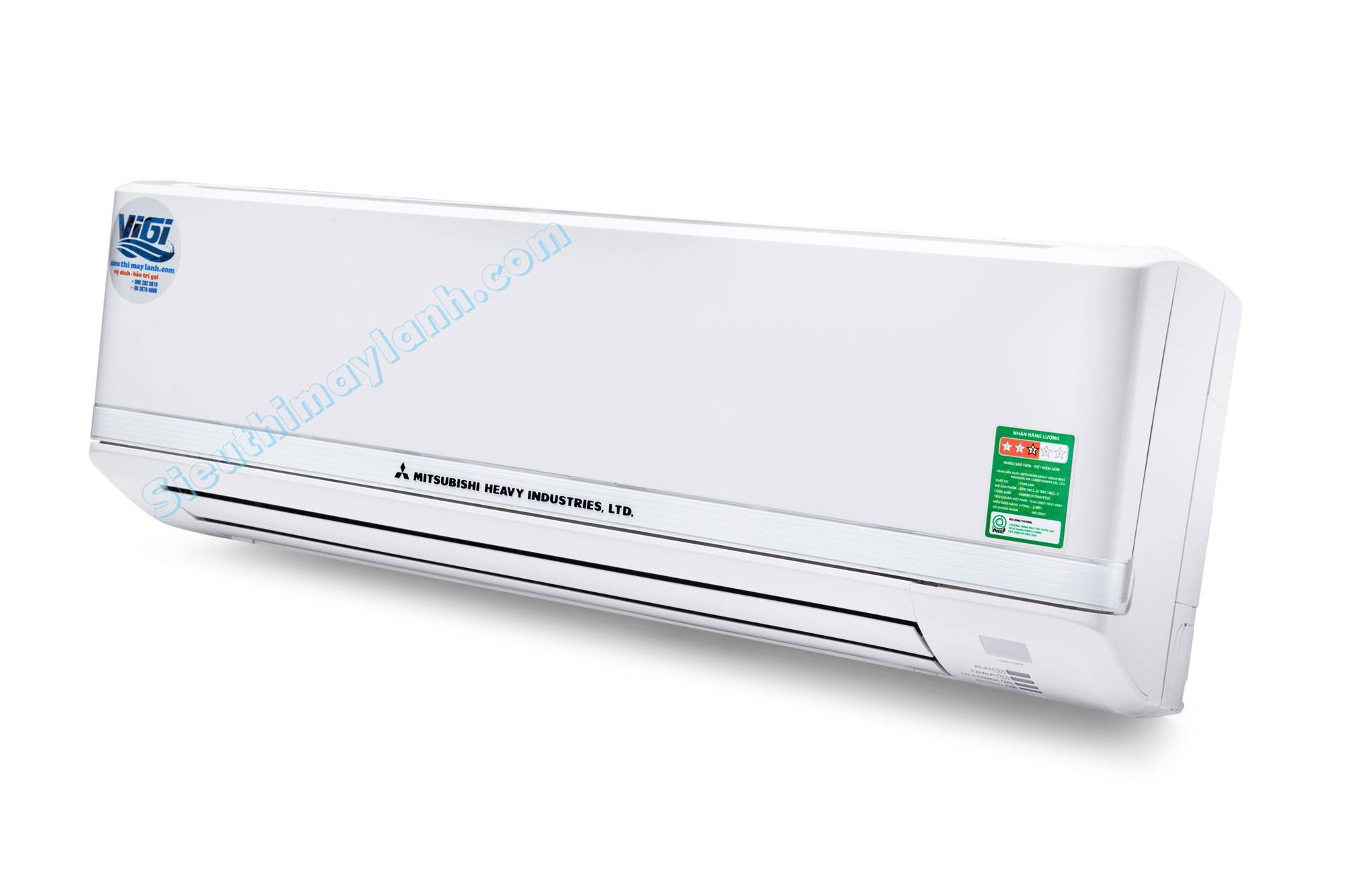

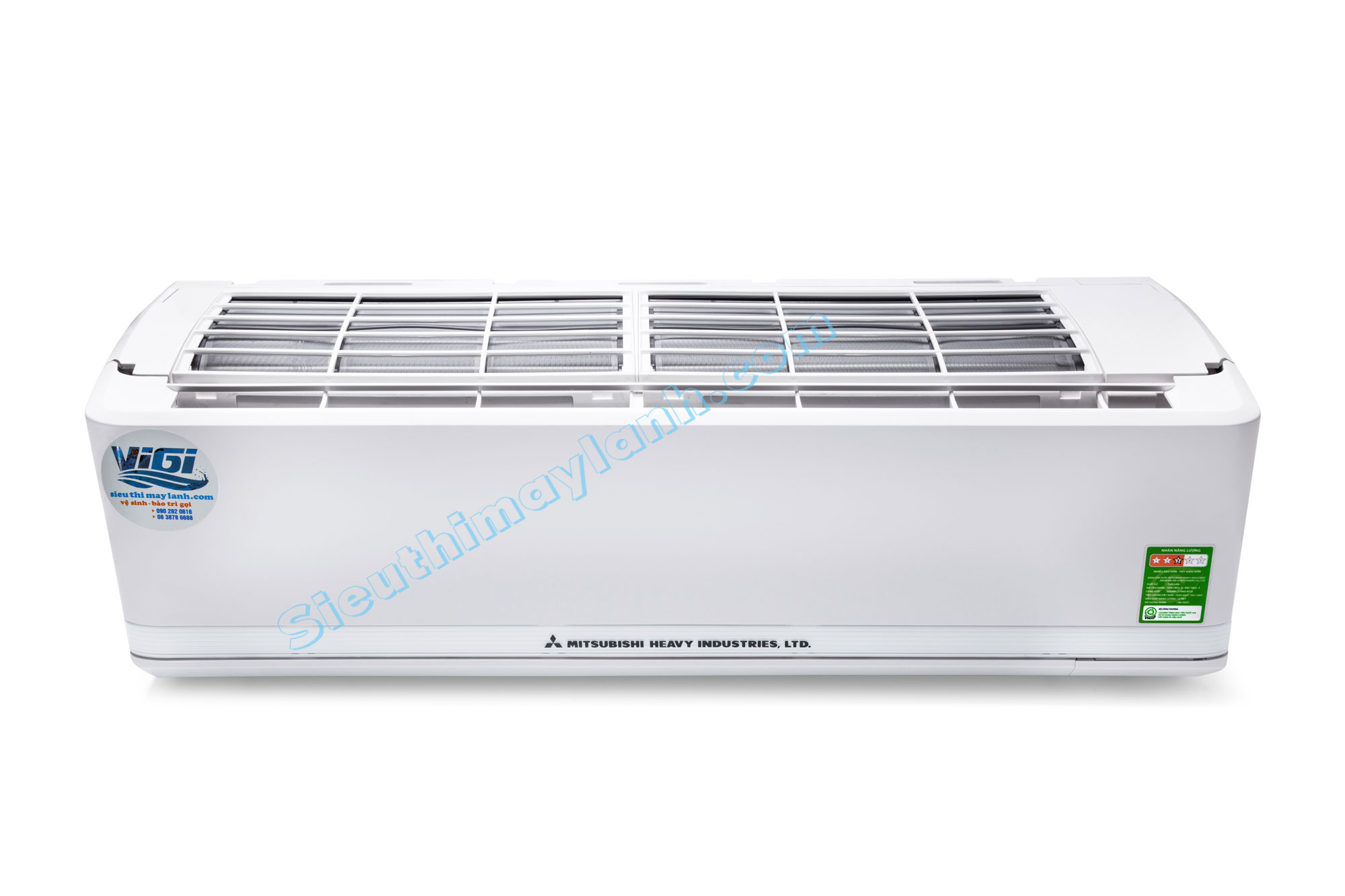

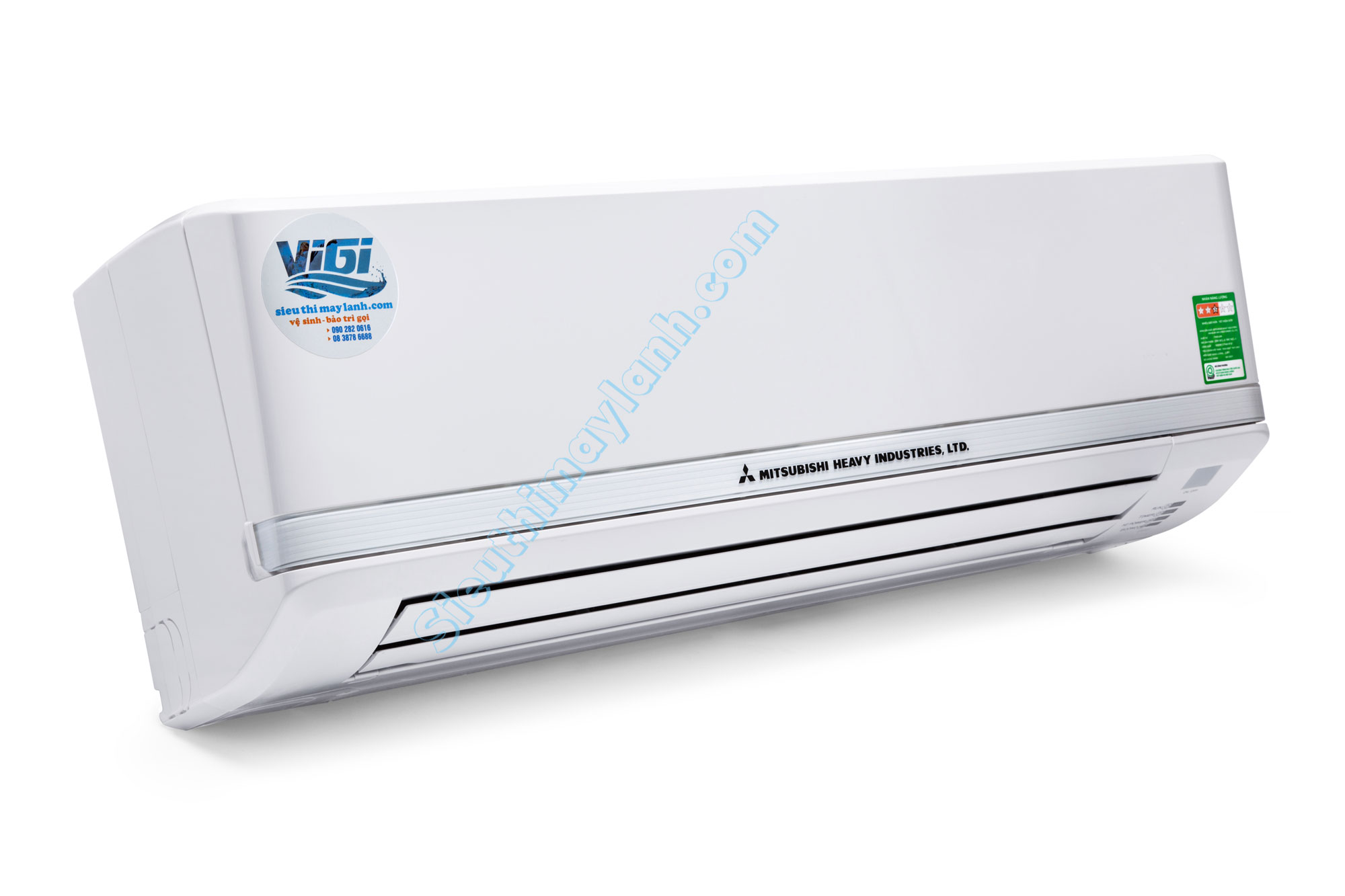

Wall mounted standard CL - SRK18CL-5

30% Saving power compare with standard type.
Saving energy index ERR : 2.901 - Achieved energy level 3*

ANTI MICRO BIAL FAN

Mitsubishi_Heavy_SRK18CL-5_1

Anti micro bial
The blower fan has  undergone anti-microbial to resist mold and germs, maiking the system clean and safe. Foul odors and molds, etc. Which can occur when an air conditioning system is not in operation are prevented.

SRK18CL-5_1

Comfortable Functions

Mitsubishi_Heavy_SRK19CLS-5

Automatic Operation
The air conditioner automatically selects from among heating, cooling and dry operations.
" HI POWER" operation
The unit can operation continuously in " HI POWER" mode for 15 minutes. This mode is convenient to reach the desired temperature quickly.

COMFORTABLE AIR FLOW FUNCTIONS

Mitsubishi_Heavy_SRK18CL-5_2

Auto flap mode
Whatever the operating mode is the unit automatically selects the optimal angle.
Memory flap
While the flap is swinging it can be stopped at any angle desired. The flap returns to  the position that it was in when operation last stopped.
Up/Down flap swing
The UP/DOWN flap can be adjust to the preferred operations angle, ranging from horizontal to perpendicular.

Maintenance & Prevention Funtions'

Mitsubishi_Heavy_SRK19CLS-5-3

Self-Diagnostic Funtion
In the case that the air conditioner malfunctions an internal microcomuter automatically runs a self-diagnosis.
Detachable indoor Air Inlet Panel
The air inlet panel on the indoor unit opens the closes easily, making filter cleaning simple. The suction panel can also de removed.

CONVENIENCE & ECONOMY FUNCTIONS

Mitsubishi_Heavy_SRK19CLS-5-4

Economy Mode
The unit realizes effective energy saving operation, while still keepiing a comfortable cooling and heating.
Dry operation
The unit dehumidifies the room by intermittent cooling operation.
Off timer
the unit stops autpmatically at the set time.
On timer
This facility enables the operation to start a little earlier, so thât the room approaches optimum temperature at ON time when te operation is started by ON _TMER.
Sleep Mode
The room temperature is automatically controlled during the set sleep mode period, ensuring that room temperature will not get too cold or too hot
24-hour On/Off Programmable Timer
By combining a start timer with a stop timer, you can register two timer operations a day. Once set, timers will faithfully start or stop the system at a specified time of the day repeatedly.

OTHERS

Mitsubishi_Heavy_SRK18CL-5_3

Back-up Switch
On the main unit, there is a backup on/off switch, which is useful when you can't use remote control or batteries are
Auto Restart Funtion
Power blackout auto restart function is a function that records, the operational status of the air-conditioner immediately prior to it being switched off by a power cut and the automatically resumes operations at that point after the power has been restored.

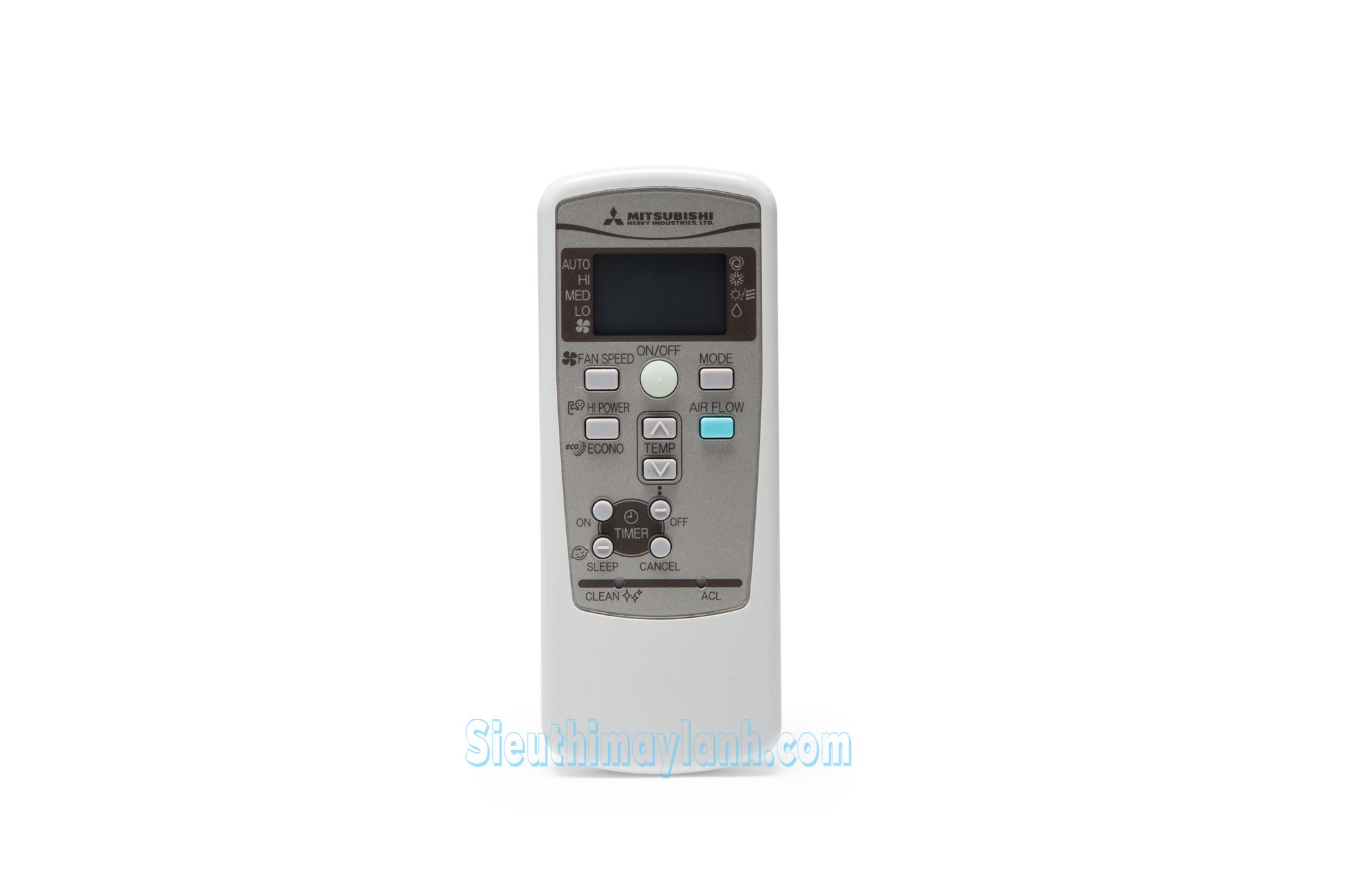

Luminous Button
With wireless " Luminous" remote controls that even " glow in the dark" , it is possible to operate all desired functions of the unit with the click of a button.

Item/ModelIndoor unitSRK18CL-5
Outdoor unitSRC18CL-5
Power sourcr1 Pha, 220/230V, 50Hz
CapacitykW5.0
BTU/h17,060
InputkW1.70
EERW/W2.901
CurrentA8.0/7.7
Exterior dimensions
(H x W x Sâu)
Indoormm309 x 890 x251
Outdoormm640 x 850 x 290
NetweightIndoorkg13
Outdoorkg40
RefrigerantR22
Refrigerant pipingLiquid linemmø 6.35
Gas linemmø 15.88 (5/8 in.)
Connecting wiring1.5 mm² x 4 scores (including earth cable)
Connecting methodTerminal block (Screw fixing type)
