Mitsubishi Heavy Ceiling Suspended Inverter FDE60VG (2.5Hp)
Mitsubishi Heavy Ceiling Suspended Inverter FDE60VG (2.5Hp)
Mitsubishi Heavy Ceiling Suspended Inverter FDE60VG (2.5Hp)

Mitsubishi Heavy Ceiling Suspended Inverter FDE60VG (2.5Hp)

33,150,000
4 công suất làm lạnh. Bạn đang chọn 2.5 Hp
Phí vật tư có thể phát sinh: 1,450,000đ. Xem chi tiết vật tư.

Email: kinhdoanh@sieuthimaylanh.com
(Open 08. am-17.pm everyday)
Warranty
02 year
Capacity
Air Conditioner 2.5 HP
Type
Inverter Air Conditioner
Refrigerant
Gas R410A

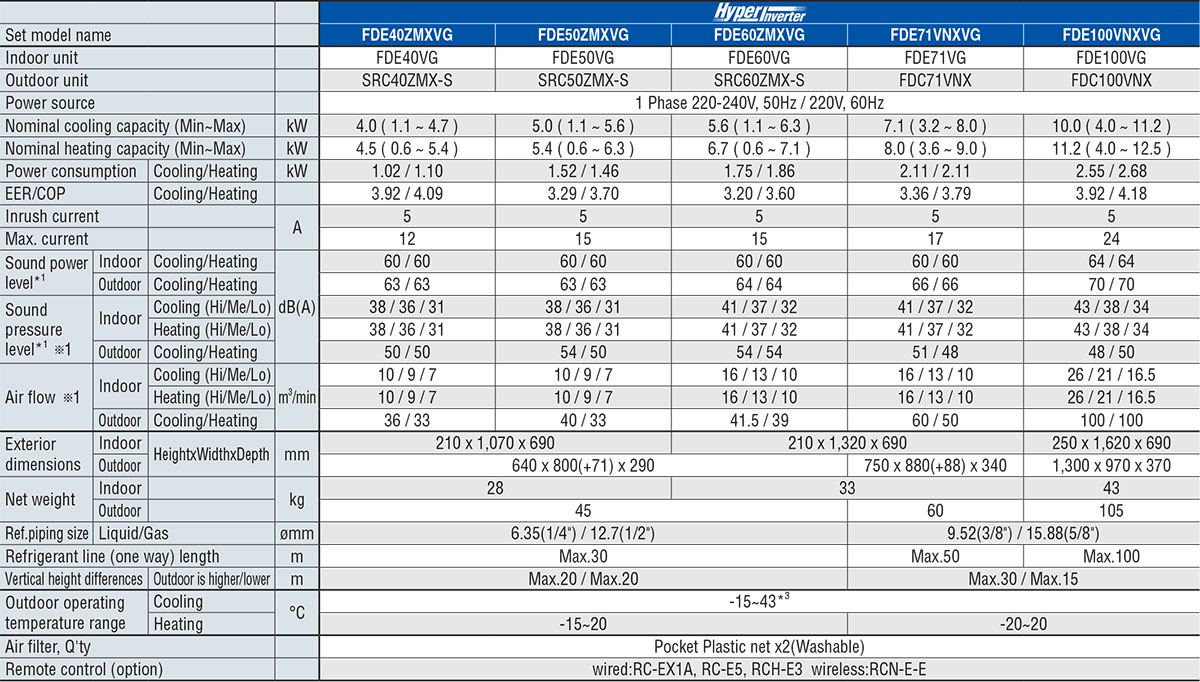

Specifications
Made in:Brand of Japanese, Made in Thailand
Refrigerant:R410A
Type:Inverter AC - Heat Pump
Cooling Capacity:2.5 Hp - 20.500 Btu/h
Use For Room:Room Area 31 - 34 m² or Volume 93 - 102 m³ ( Suitable for living room, office )
Power Input (Ph/V/Hz):1 phase, 220 - 240V, 50Hz
Power consumption (kW):1,75 Kw
Refrigerant/ Liquid Pipe Diameter (mm):6.35 / 12.7
Indoor Unit
Indoor Unit Model:FDE60VG

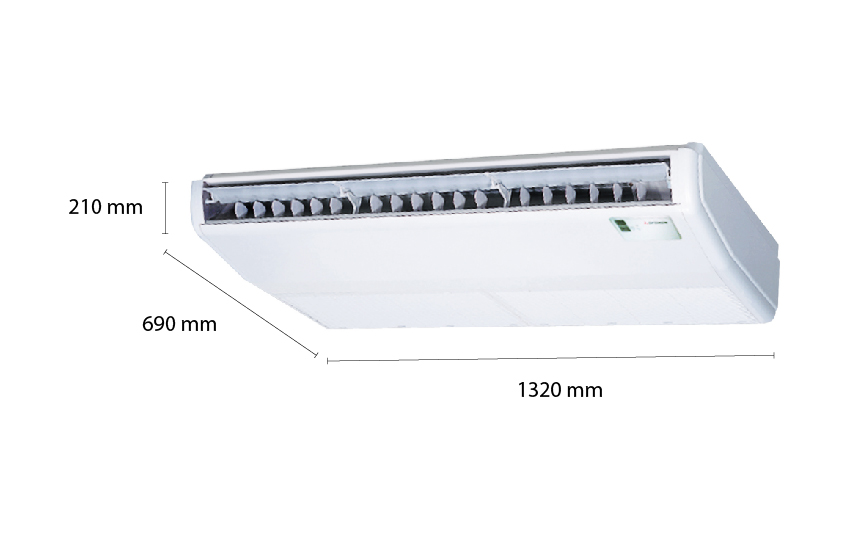

Indoor Unit Dimensions (mm):210 x 1.320 x 690 (mm)
Indoor Unit Net Weight (Kg):33 (kg)
Outdoor Unit
Outdoor Unit Model:SRC60ZMX-S
Outdoor Unit Dimensions (mm):640 x 800 x 290 (mm)
Outdoor Unit Net Weight (Kg):45 (kg)
Description

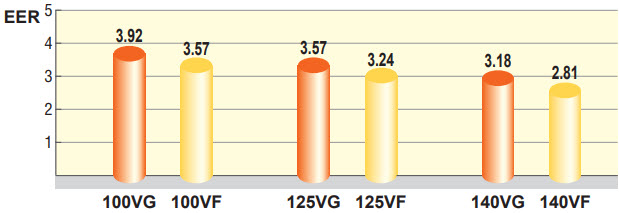

High efficiency

Energy efficiency was improved by use of DC fan motor & high efficient heat exchanger.

Mitsubishi_Heavy_FDE71VG_1

Reduction of weight

Thanks to decreasing the numbers of fan motor from two to one, reduction of weight was achieved.



Mitsubishi_Heavy_FDE71VG_2

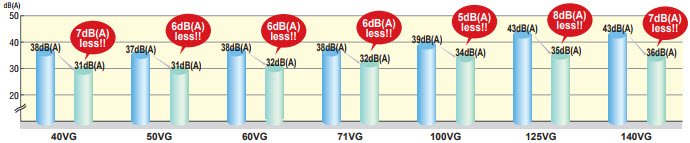

Reduction of sound pressure level (Lo mode)

Mitsubishi_Heavy_FDE71VG_3

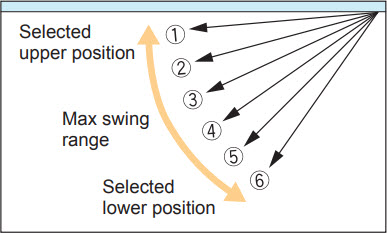

Flap control

The flap can swing within the range of upper and lower flap position selected with wired remote control.

Mitsubishi_Heavy_FDE71VG_4

Improved installation workability

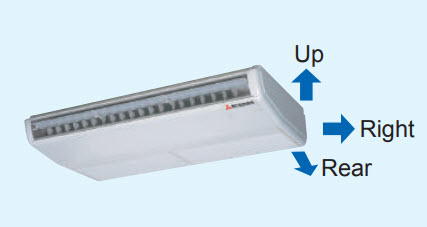

Increased freedom of a piping layout

The refrigerant pipe from the unit can be arranged in three directions, rear, right and up.
The drain pipe can be arranged in two directions, left and right. This will allow a free layout of piping for various installation conditions. The unit can only be serviced from the bottom.

Mitsubishi_Heavy_FDE71VG_5

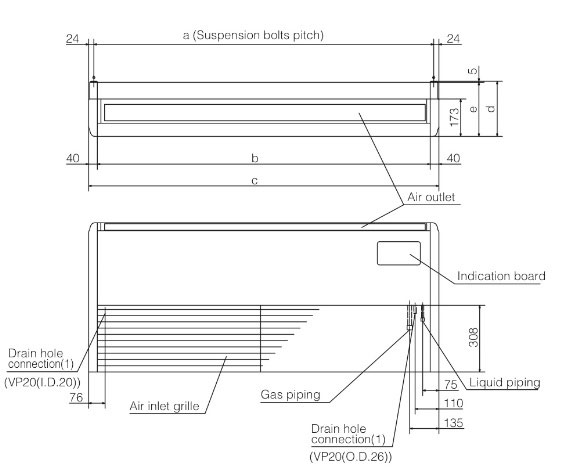

Mitsubishi_Heavy_FDE40VG_1

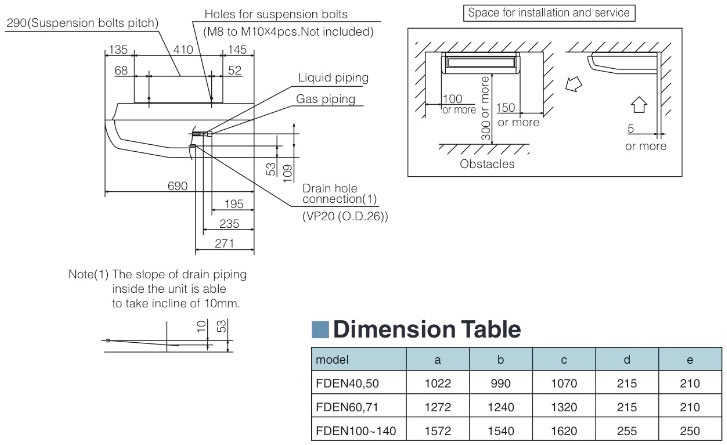

Mitsubishi_Heavy_FDE40VG_2

Mitsubishi_Heavy_FDE71VG_6
