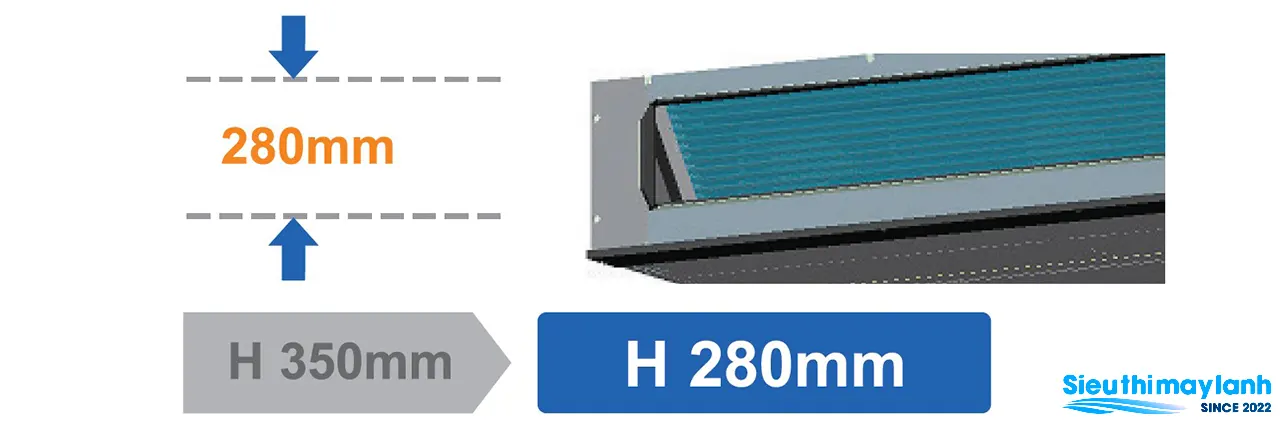

The slim design is wholly hidden under the ceiling
Looking for an efficient air conditioning solution for your space? Consider the Mitsubishi Heavy ducted air conditioner inverter (2.0Hp) FDUM50YA-W5 model 2022 is a high static pressure line. In addition, its compact design of only 280mm makes it an excellent choice for spaces with closed, low, or false ceilings.
The cooling capacity of 5.3 kW effectively cools areas ranging from 24 - 30 m2, and it is the perfect air conditioning solution for various spaces such as offices, factories, shops, and hotels.

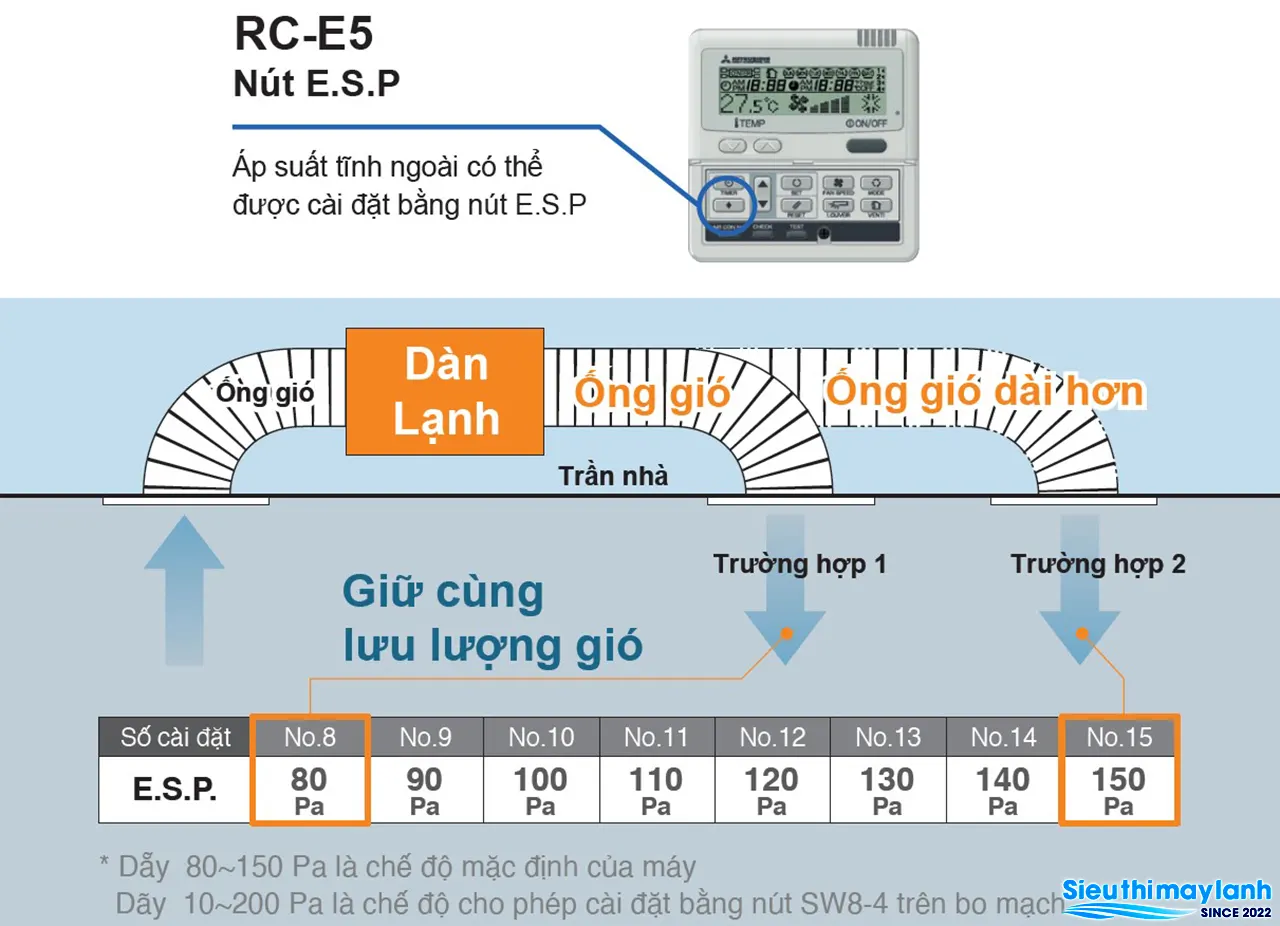

External Static Pressure (E.S.P.) Control
The External Static Pressure (E.S.P.) can be manually set on the wired remote controller. Indoor unit will control the fan speed to keep rated air flow volume at each fan speed setting. You can set required E.S.P. by wired remote controller, calculated with the set air flow rate and the pressure loss of the duct.

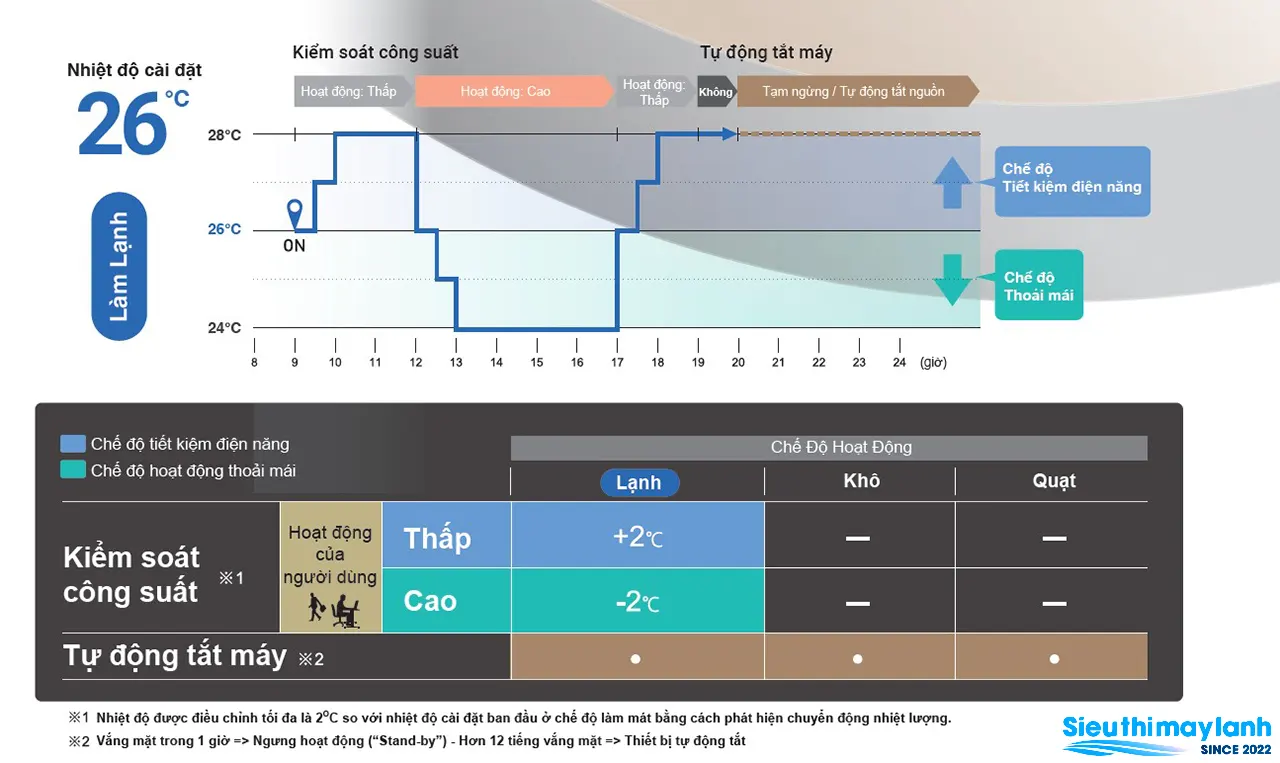

Energy saving
The Mitsubishi Heavy ducted air conditioner FDUM50YA-W5 can automatically control energy consumption in three steps.
- Power Control and Energy saving is achieved by shifting the set temperature according to the detected amount of activity.
- Stand by: When the motion sensor detects activity again, the unit will automatically re-start operation.
- Auto Off: When no activity is detected for 12 hours.
Transparent Inspection Window
Dirt condition of the bottom of a drain pan can be checked through this transparent inspection window without removing drain pan.
Other outstanding advantages
- Self-diagnostic error display when the machine fails saves inspection and repair time.
- Refrigerant precharged piping length extends up to 50m. This eliminates the need to add refrigerant on-site, which sets it free from excessive or insufficient refrigerant charging and allows carrying out the installation smoothly.
- Using R32 refrigerant is pure gas, easier to handle, very environmentally friendly, performance is superior to R410A gas, easy to reuse, and significantly saves electricity.

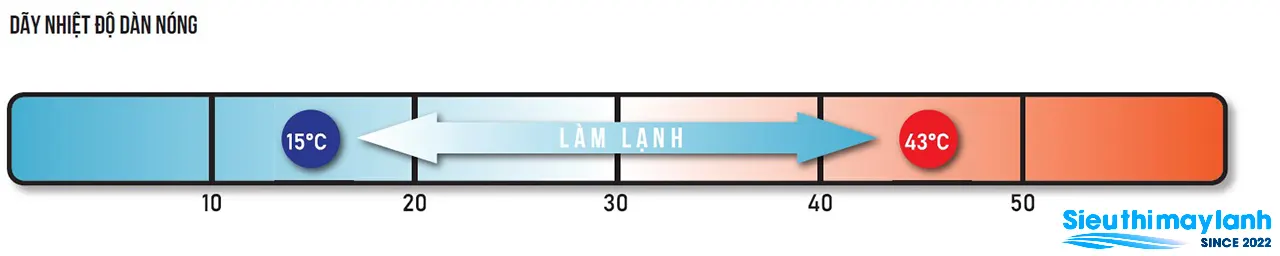

- The outdoor unit temperature range is an extended operating range under an ambient temperature of 43°C.

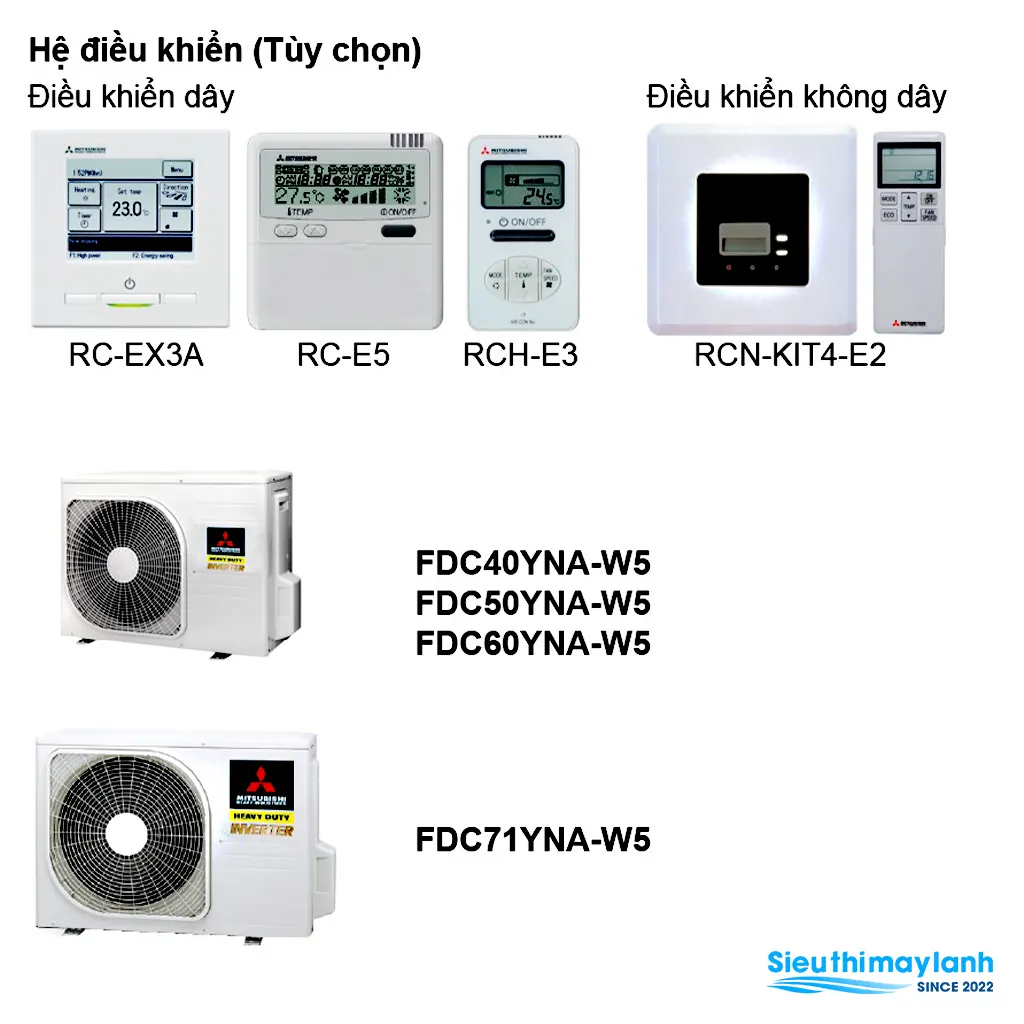

Remote control
Dimension

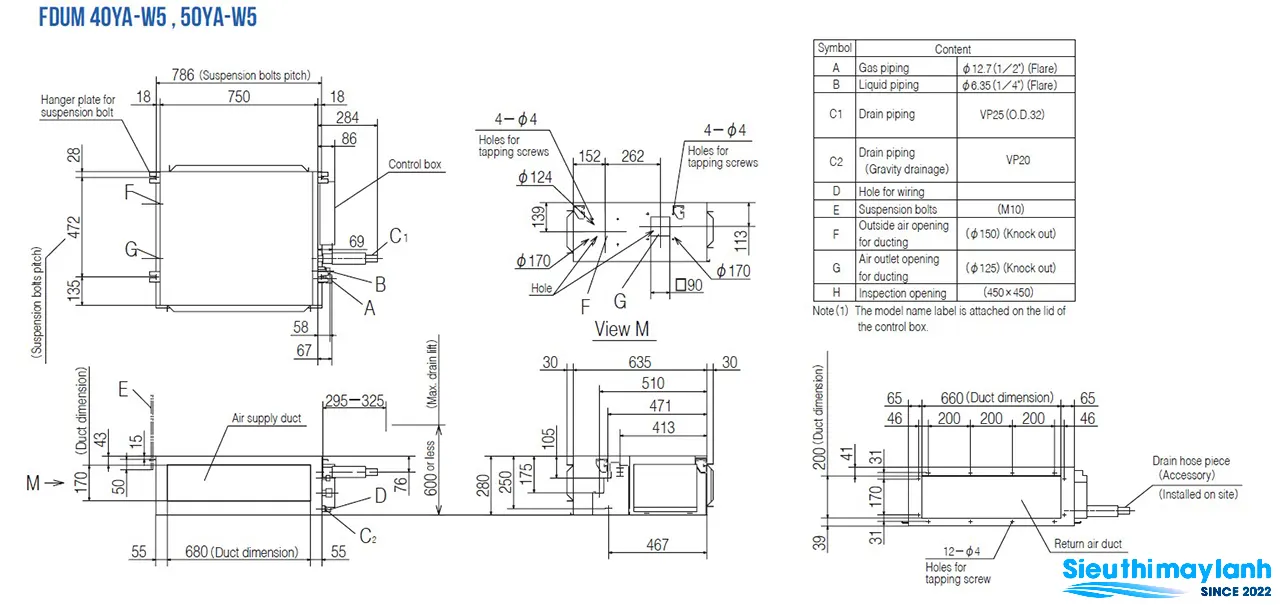

Indoor unit

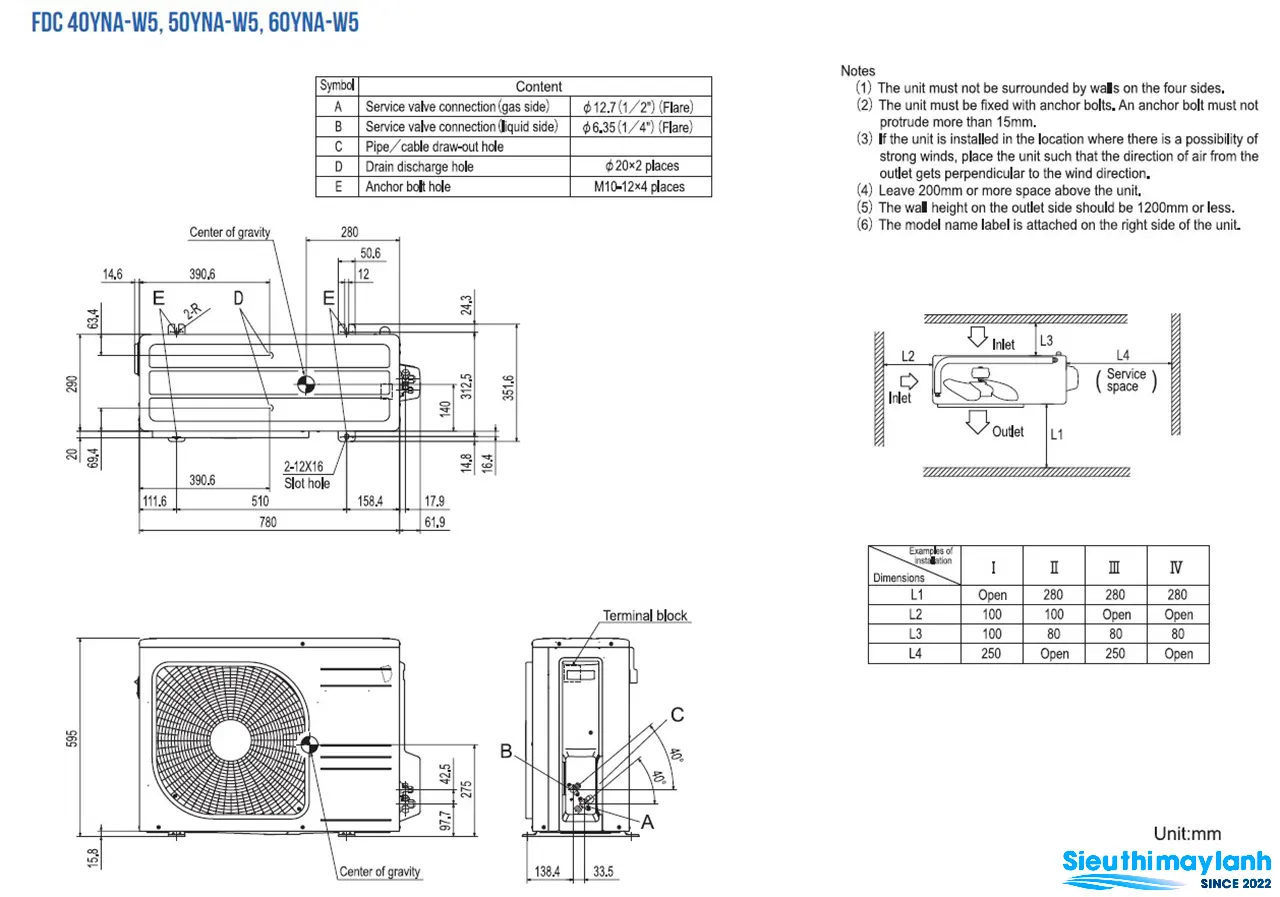

Outdoor unit

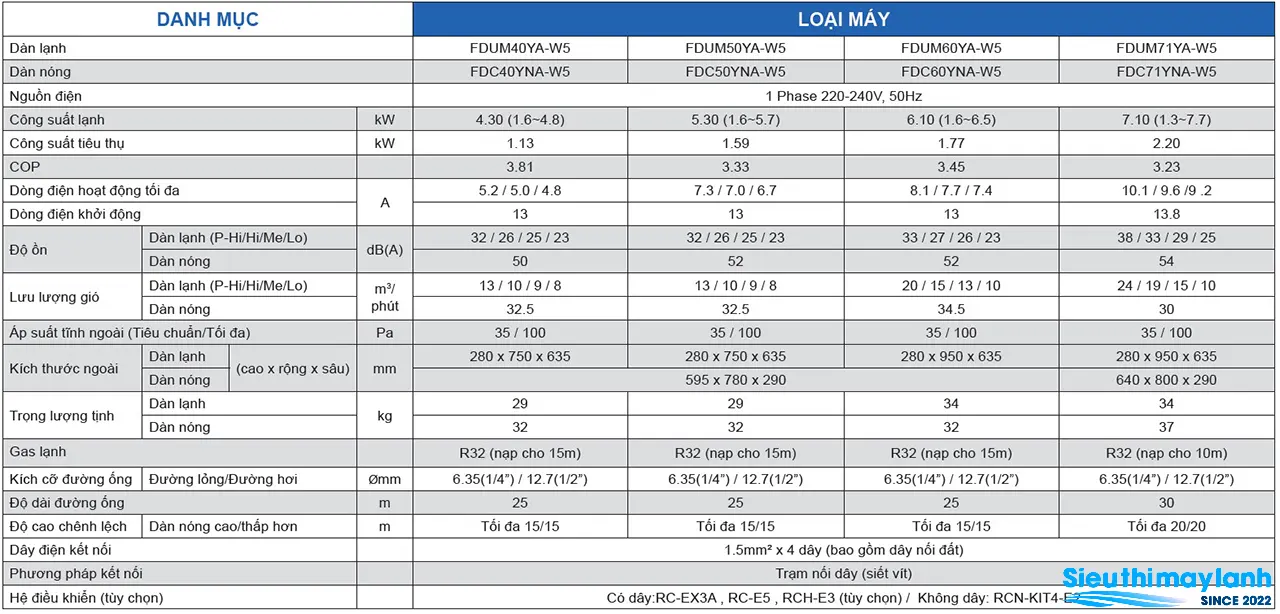

Specifications
