Due to slim design (Depth: 320mm), easy transportation and installation are realized.
Easy Maintenance
The surface of heat exchanger can be appeared only removing the front panel. Easy cleaning of heat exchanger is possible.
Nominal cooling capacity (min-max) | kW | 9.0 (1.9 - 9.0) |
Nominal heating capacity (min-max) | kW | 9.0 (1.5 - 9.0) |
Exterior Dimensions (H x W x D) | mm | 1850 x 600 x 320 |
Net Weight | kg | 52 |
Air Flow Cooling (Hi/Me/Lo) | m3/min | 29 / 26 / 23 / 19 |
Air Flow Heating (Hi/Me/Lo) | m3/min | 29 / 26 / 23 / 19 |
Sound Pressure Level Cooling (Hi/Me/Lo) | dB(A) | 54 / 50 / 48 / 44 |
Sound Pressure Level Heating (Hi/Me/Lo) | dB(A) | 54 / 50 / 48 / 44 |
Outdoor Unit
General Data
Nominal cooling capacity (min-max) | kW | 9.0 (1.9 - 9.0) |
Nominal heating capacity (min-max) | kW | 9.0 (1.5 - 9.0) |
EER (Energy Label) | 3.23 | |
COP (Energy Label) | 4 | |

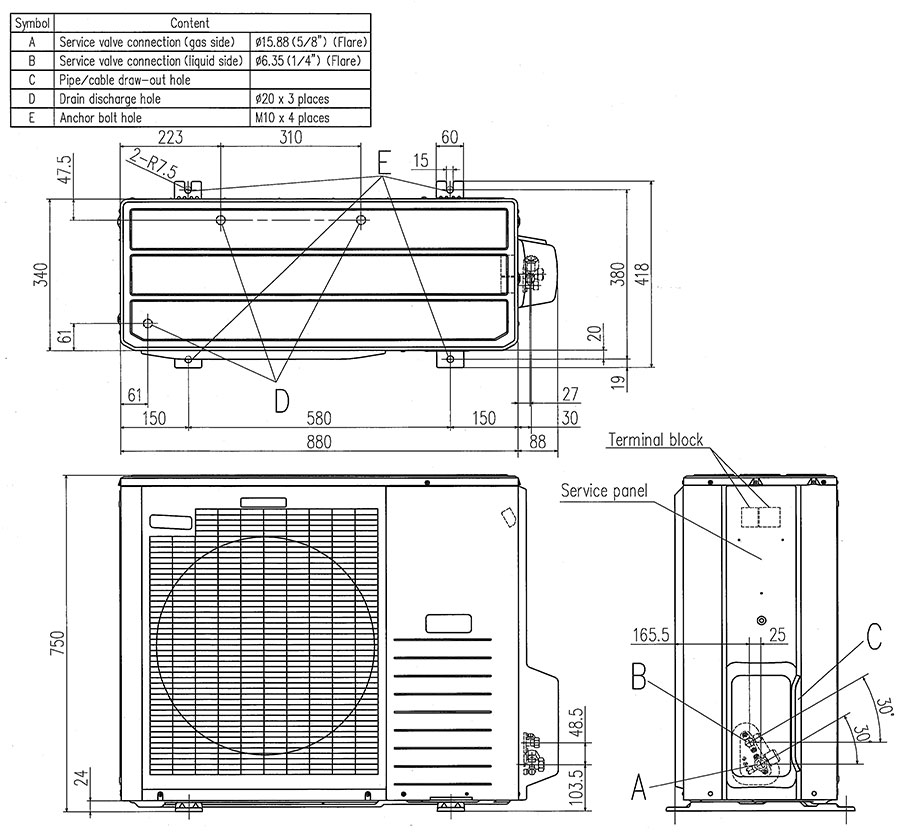

Exterior Dimensions (H x W x D) | mm | 750 x 880(+88) x 340 |
Net Weight | kg | 57 |
Sound Pressure Level (Cooling/Heating) | dB(A) | 57 / 55 |
Energy class (Cooling/Heating) | A+/A+ | |
SEER "Average climate"/(Energy label) | 5.69 | |
SCOP "Average climate"/(Energy label) | 4.01 |
Elecrical Data
Pdesignc | kW | 9 |
Pdesignh (@-10°C) | kW | 8.1 |
Annual electricity consumption (Cooling/Heating) | kWh/a | 555 / 2826 |
Power Source | 1 Phase 220-240V 50Hz, 1 Phase 220V 60Hz | |
Inrush current (220/230/240v) | A | 5 |
Max. running current | A | 18 |
Power consumption (Cooling/Heating) | kW | 2.79 / 2.25 |
Installation
Refrigerant (GWP) | R410A (2088) | |
Designated heating season | Average | |
Ref. Piping Size (Liquid/Gas) | Ø mm | 6.35 (1/4") / 15.88 (5/8") |
Ref. Max Piping Length | m | Max. 30 |
Vertical Height differences / Outdoor is higher/lower | m | Max. 20 / Max. 20 |
