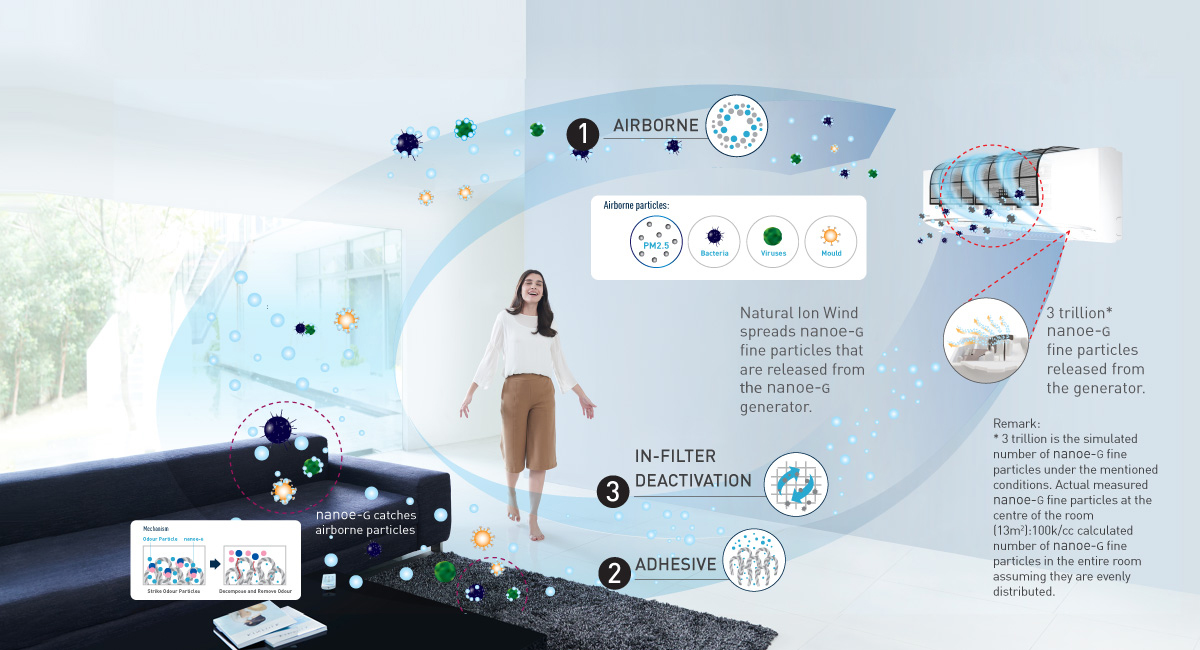

2. DEACTIVATES ADHESIVE PARTICLES & DEODORISES ADHESIVE ODOURS (Up to 99%*³)
Deactivates adhesive micro-organisms and deodorises adhesive odours. Inhibits mould growth that settles on surfaces around you.
3. IN-FILTER DEACTIVATION (Up to 99%*⁴)
Deactivates bacteria and viruses trapped in the filter.
The Anti-Bacterial Filter combines three effects in one: anti-allergen, anti-virus and anti-bacteria protection to provide clean air.
Odour-Removing Function
With this function, , there’s no unpleasant odor when the unit starts up. That’s because the fan remains off momentarily, while the source of the odor inside the air conditioner is suppressed. The unit must be in cool or dry mode and the fan speed must be set to automatic.
24-hour on & off real setting timer
The exact operating time (houe and minute) of the air conditioner can be set in advance. From here on, the unit will operate in accordance to these preset hours every day until the system is reset.
AIRBORNE
*¹ PM2.5 Removal was certified by FCG Research Institute, Inc
• Test Report no. : 25034
PM2.5 : Cigarette Smoke (as PM2.5)
Effectiveness is measured on 0.3µm-2.5µm. (Specific size only)
This removal effect is not proven for all the airborne toxic substances.
*² Airborne Removal was certified by Kitasato Research Center for Environmental Science
• KRCES-Bio. Test Report no. : 23_0182
Bacteria : Staphylococcus aureus (NBRC 12732)
• KRCES-Env. Test Report no. : 22_0008
Virus : Escherichia coli phage (øX-174 ATCC 13706-B1)
: Influenza (H1N1) 2009 Virus
• KRCES-Env. Test Report no. : 23_0140
Mould : Penicillium pinophilum (NBRC 6345)
ADHESIVE
*³ Adhesive Deactivation was certified by Japan Food Research Laboratories
• Test Report number : 11047933001-02
Bacteria : Staphylococcus aureus (NBRC 12732)
• Test Report number : 11073649001-02
Virus : Bacteriophage (Phi X 174 NBRC 103405)
• Test Report number : 11047937001-02
Mould : Cladosporium cladosporioides (NBRC 6348)
ADHESIVE ODOURS
Adhesive odour deodorisation was certified by OMI ODOR-AIR SERVICE Co. Ltd.
• Test Report No. 13-1204
IN-FILTER DEACTIVATION
*⁴ In-Filter Deactivation was certified by Japan Food Research Laboratories
• Test Report number : 12037932001
Bacteria : Staphylococcus aureus (NBRC 12732)
• Test Report number : 12014705001
Virus : Escherichia coli phage (øX-174 ATCC 13706-B1)
In-Filter Deactivation was certified by Kitasato Research Center for Environmental Science
• Test Report number : KRCES-Virus Test Report No. 24_0013
Virus : Influenza (H1N1) 2009 Virus
All results are based on specific testing conditions.
All tests are not demonstrated under actual usage situation.
ALL SPECS
MODEL | (50Hz) | Indoor | CS-N18TKH-8 |
Outdoor | CU-N18TKH-8 | ||
Cooling Capacity | (min-max) | kW | 5.28 |
(min-max) | Btu/h | 18,000 | |
CSPF | 3.3 | ||
EER | (min-max) | W/W | 3.18 |
Electrical Data | Voltage | V | 220 |
Current | A | 7.7 | |
Power Input (mix-max) | W | 1,660 | |
Moisture Removal | L/h | 2.9 | |
(Pt/h) | 6.1 | ||
Air Circulation | Indoor | m³/min (ft³/min) | 16.4 (579) |
Outdoor | m³/min (ft³/min) | 39.3 (1,390) | |
Noise Level | Indoor (H / L / Q-Lo) | dB (A) | 44/36 |
Outdoor (H / L) | dB (A) | 52 | |
Dimensions | Height | mm | 290 (619) |
inch | 11-7/16 (24-3/8) | ||
Width | mm | 1,070 (824) | |
inch | 42-5/32 (32-15/32) | ||
Depth | mm | 240 (299) | |
nch | 9-15/32 (11-25/32) | ||
Net Weight | Indoor | kg (lb) | 12 (26) |
Outdoor | kg (lb) | 35 (77) | |
Refrigerant Pipe Diameter | Liquid Side | mm | Ø 6.35 |
inch | 1/4 | ||
Gas Side | mm | Ø 15.88 | |
inch | 5/8 | ||
Pipe Extension | Chargeless Pipe Length | m | 7.5 |
Maximum Pipe Length | m | 25 | |
Maximum Elevation Length | m | 20 | |
Additional Refrigerant Gas* * | g/m | 15 | |
Power Supply | Indoor |
