Inverter
General Air Conditioner ASGA24JCC (2.5Hp) inverter

General Air Conditioner ASGA24JCC (2.5Hp) inverter

24,300,000
2 công suất làm lạnh. Bạn đang chọn 2.5 Hp
Phí vật tư có thể phát sinh: 965,000đ. Xem chi tiết vật tư.

Email: kinhdoanh@sieuthimaylanh.com
(Open 08. am-17.pm everyday)
Warranty
02 years for components
05 years for compressor
Capacity
Air Conditioner 2.5 HP
Type
Inverter Air Conditioner
Refrigerant
Gas R410A
Specifications
Made in:China
Refrigerant:R410A
Type:Inverter AC- Cooling Only
Cooling Capacity:2.5 Hp - 24.200 Btu/h
Use For Room:Room area 31 - 35 m² or Volume 93 - 105 m³
Power Input (Ph/V/Hz):1 Phase, 220 - 240 V, 50Hz
Power consumption (kW):0,71 Kw
Refrigerant/ Liquid Pipe Diameter (mm):6.35 / 15.88
Maximum Pipe Length:30 (m)
Maximum Elevation Length:20 (m)
Energy Efficiency Ratio (EER):2.9
Energy Efficiency Level:5 star
Indoor Unit
Indoor Unit Model:ASGA24JCC
Indoor Unit Dimensions (mm):320 x 998 x 228 (mm)
Indoor Unit Net Weight (Kg):14 (kg)
Outdoor Unit
Outdoor Unit Model:AOGA24JCC
Outdoor Unit Dimensions (mm):620 x 790 x 298 (mm)
Outdoor Unit Net Weight (Kg):40 (kg)
Description

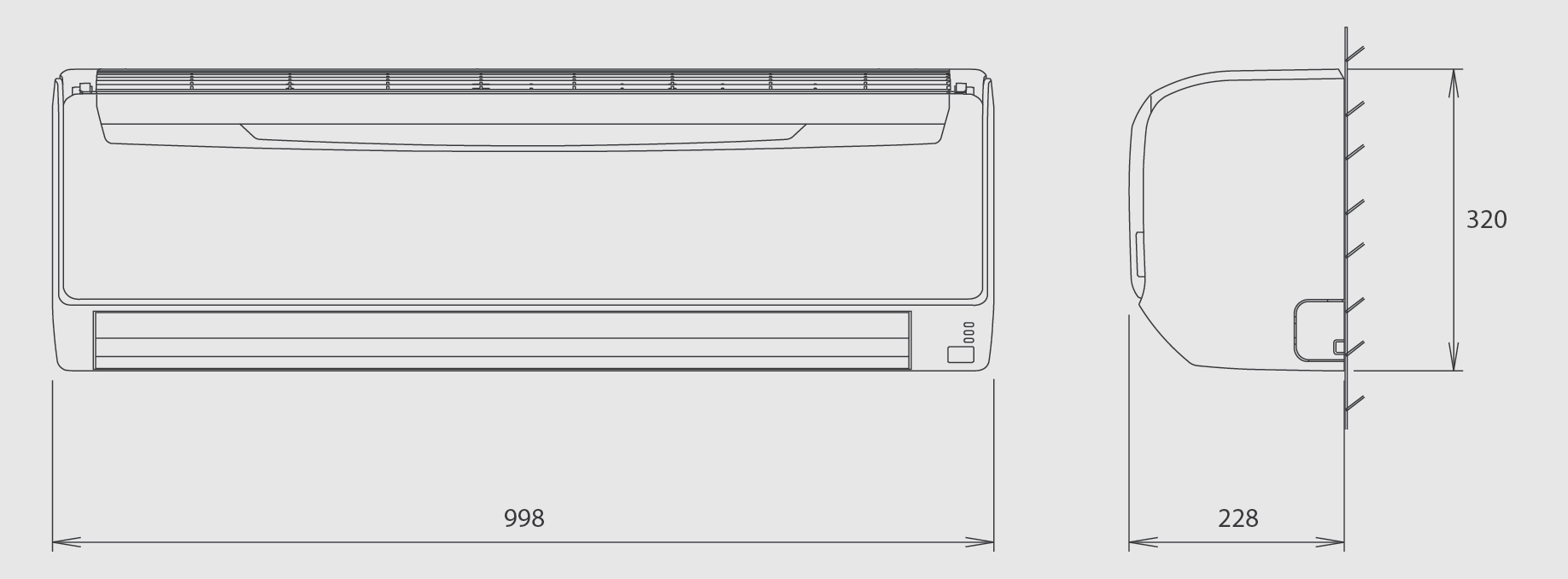

Dimensions      Models:  General AC Inverter ASGA24JCC (2.5Hp) inverterkich_thuoc_may_lanh_general_inverter_asga18jcc    (Unit: mm)

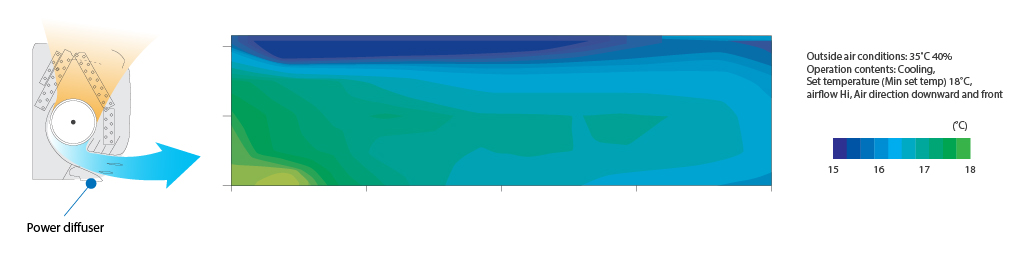

Comfort airflow

Power diffuser

“Horizontal airflow” does not blow cool air directly at the occupants in the room

general_AC_inverter-ASGA18JCC-1

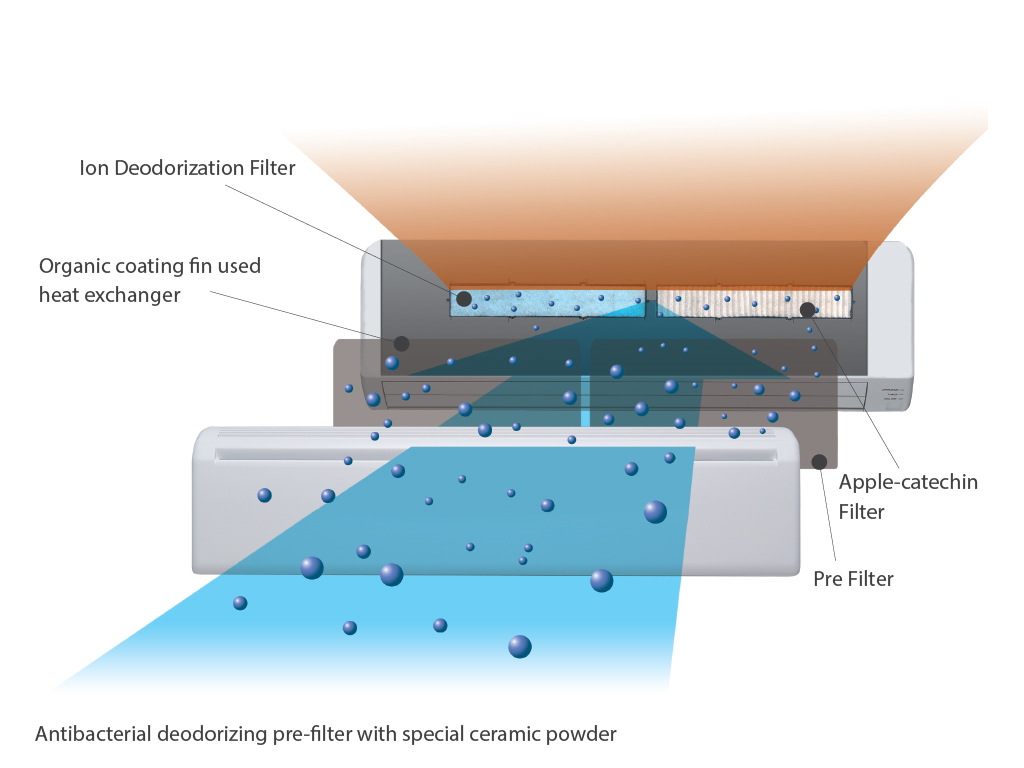

Air conditioner filter features

general_AC_inverter-ASGA18JCC-filter

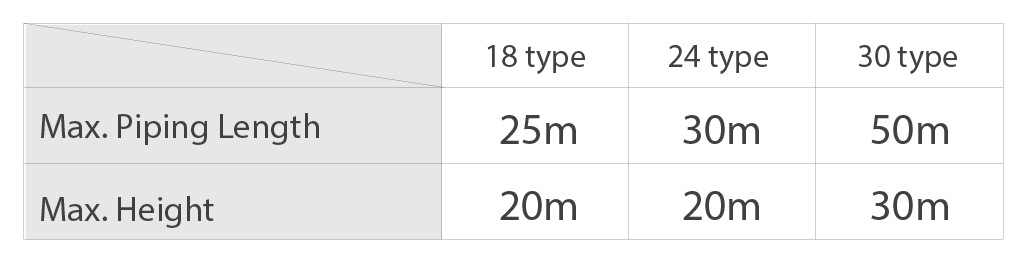

Flexible Installation

general_AC_inverter-ASGA18JCC-flexible

Air conditioner filter features

general_AC_inverter-ASGA18JCC-ac_filter

The filter deodorizes by powerfully decomposing absorbed odors using the oxidizing and reducing effects of ions generated by the ultra-fine-particle ceramic.

general_AC_inverter-ASGA18JCC-apple_catechin_filter

The Apple-catechin filter uses static electricity to clean fine particles and dust in the air.

Easy maintenance

Simplification of drain pan cleaning improves maintenance-ability.

bao_duong_may_lanh_general

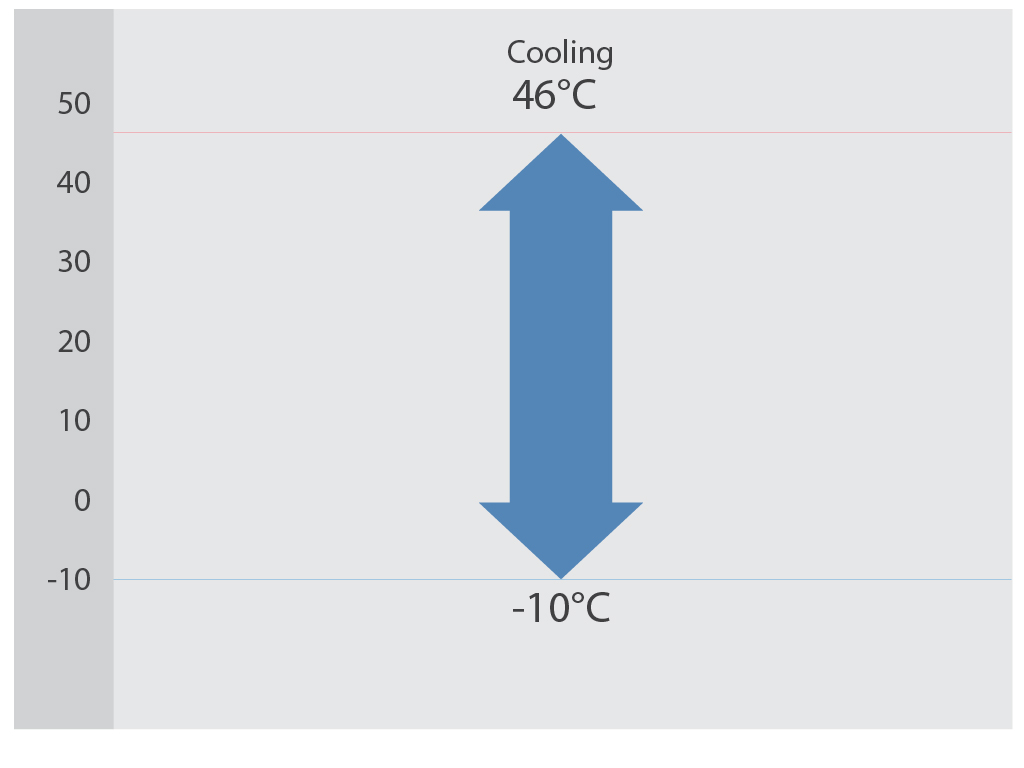

Low ambient operation

(Heat pump type)

mota-ASGA18JCC-6

Optional parts

Wired Remote Controller:  UTB-GUD
External Connect Kit:         UTY-XWZX

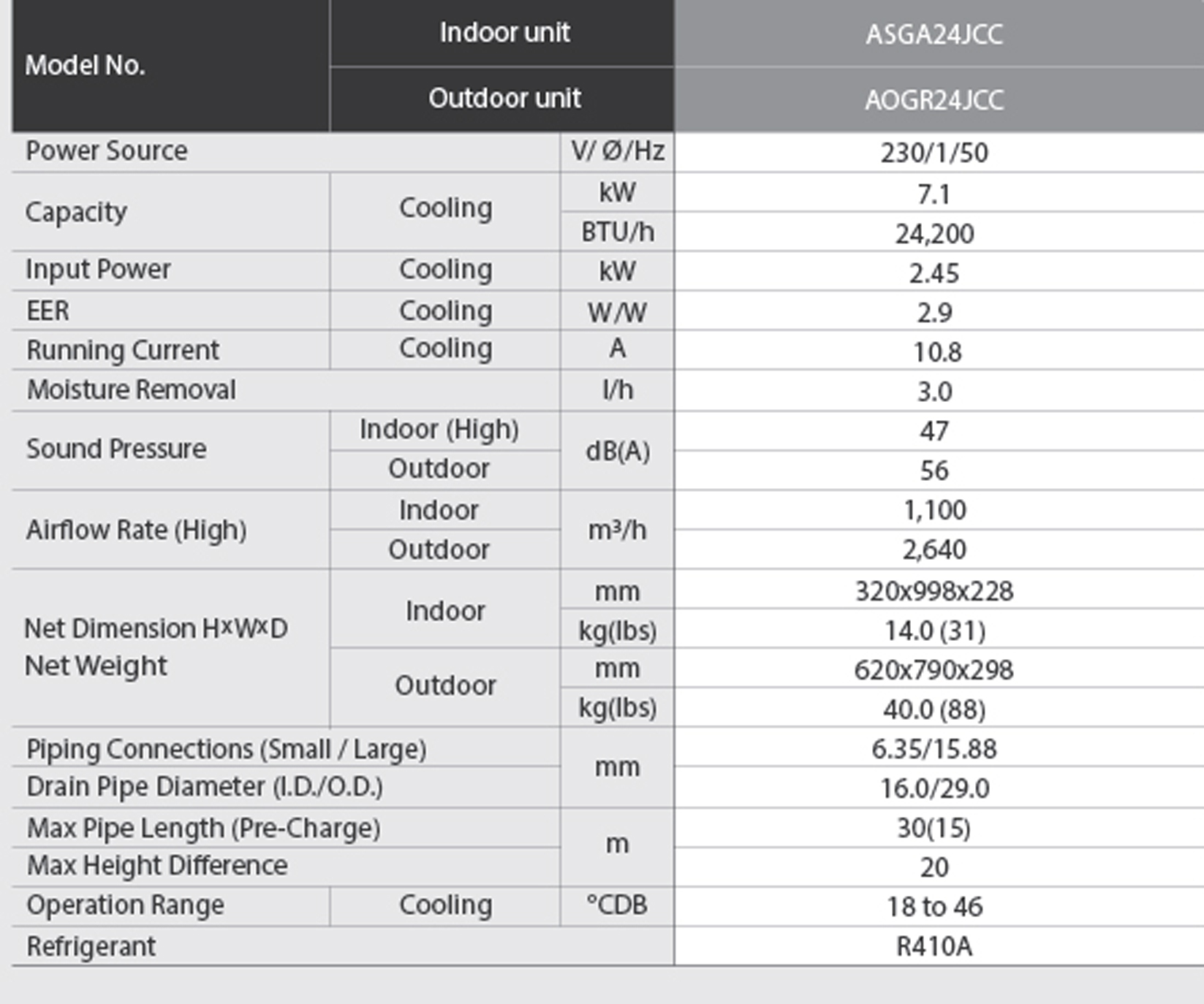

General Inverter Air Conditioner ASGA24JCC (2.5Hp) inverter - Specifications

specs_general_ac_inverter_ASGA24JCC
