General Air Conditioner ASGG09JLTB-V (1.0Hp) Inverter

General Air Conditioner ASGG09JLTB-V (1.0Hp) Inverter

9,900,000
2 công suất làm lạnh. Bạn đang chọn 1.0 Hp
Phí vật tư có thể phát sinh: 965,000đ. Xem chi tiết vật tư.

Email: kinhdoanh@sieuthimaylanh.com
(Open 08. am-17.pm everyday)
Warranty
02 years for components
05 years for compressor
Capacity
Air Conditioner 1.0 HP
Type
Inverter Air Conditioner
Refrigerant
Gas R410A
Specifications
Made in:Thai Land
Refrigerant:R410A
Type:Inverter AC- Cooling Only
Cooling Capacity:1.0 HP - 8.500 Btu/h
Use For Room:Room area 12 - 15 m² or Volume 36 - 45 m³.
Power Input (Ph/V/Hz):1 Phase, 220 - 240 V, 50Hz
Power consumption (kW):0,25 Kw
Refrigerant/ Liquid Pipe Diameter (mm):6.35 / 9.52
Maximum Pipe Length:20 (m)
Maximum Elevation Length:15 (m)
Energy Efficiency Ratio (EER):3.47
Energy Efficiency Level:5 star
Indoor Unit
Indoor Unit Model:ASGG09JLTB-V
Indoor Unit Dimensions (mm):262 x 820 x 206 (mm)
Indoor Unit Net Weight (Kg):7 (kg)
Outdoor Unit
Outdoor Unit Model:AOGG09JLTB-V
Outdoor Unit Dimensions (mm):540 x 660 x 290 (mm)
Outdoor Unit Net Weight (Kg):25 (kg)
Description

Dimensions    Models: ASGG09JLTB-V kich_thuoc_may_lanh_general_inverter_1_hp    (Units: mm)

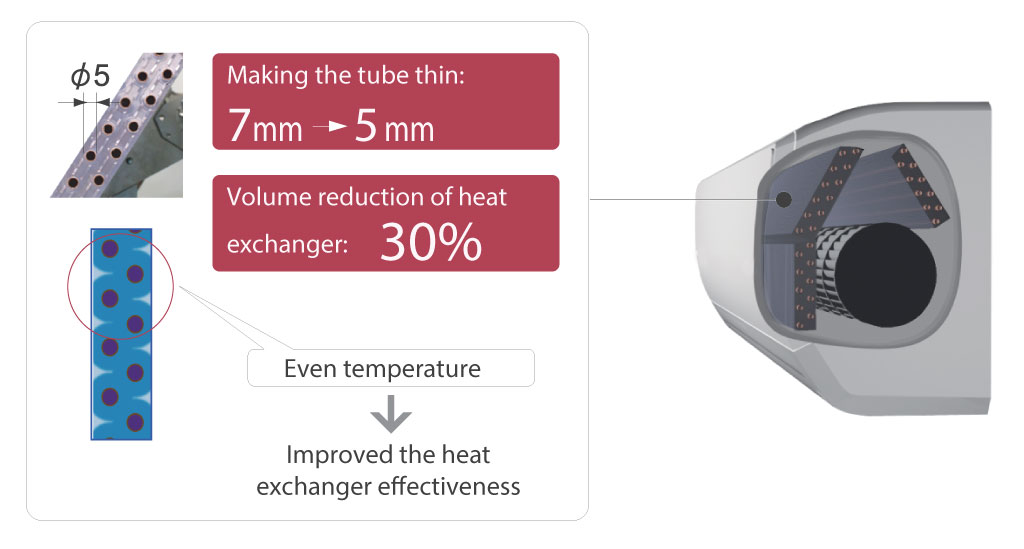

High Efficient Compact Design

Compact design is realized by high density multi-path heat exchanger.

General__AC_ASGG09jltb-v1_1

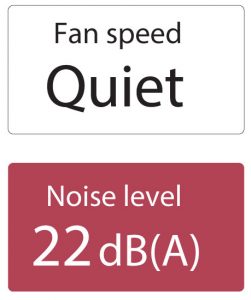

Super Quiet Operation.

Top class low noise operation by new airflow construction.
Our quiet operation makes the more comfortable environment in a bed room and a study room, etc.
  General__AC_ASGG09jltb-quiet

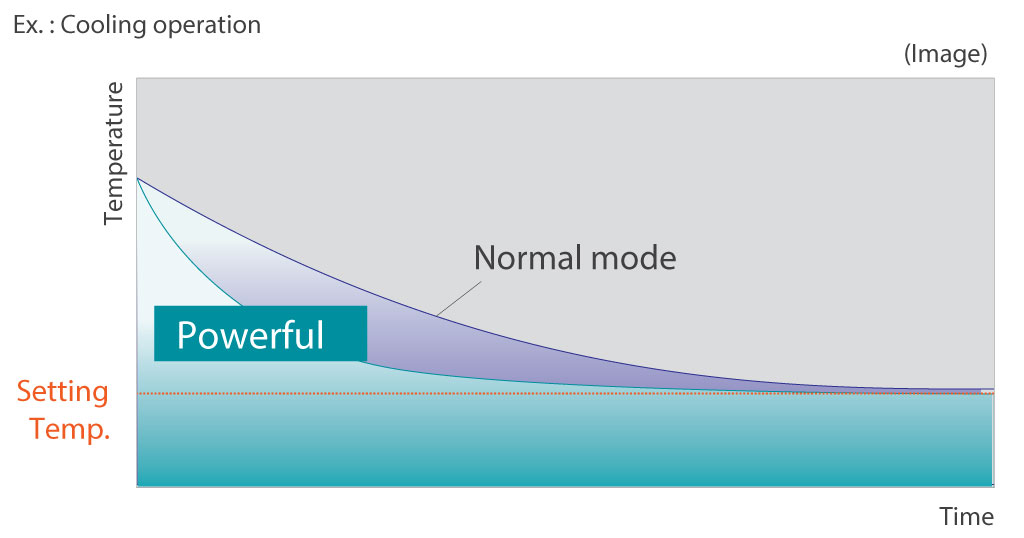

Powerful operation

Reach the setting temperature quickly.

General__AC_ASGG09jltb_inverter-power_full

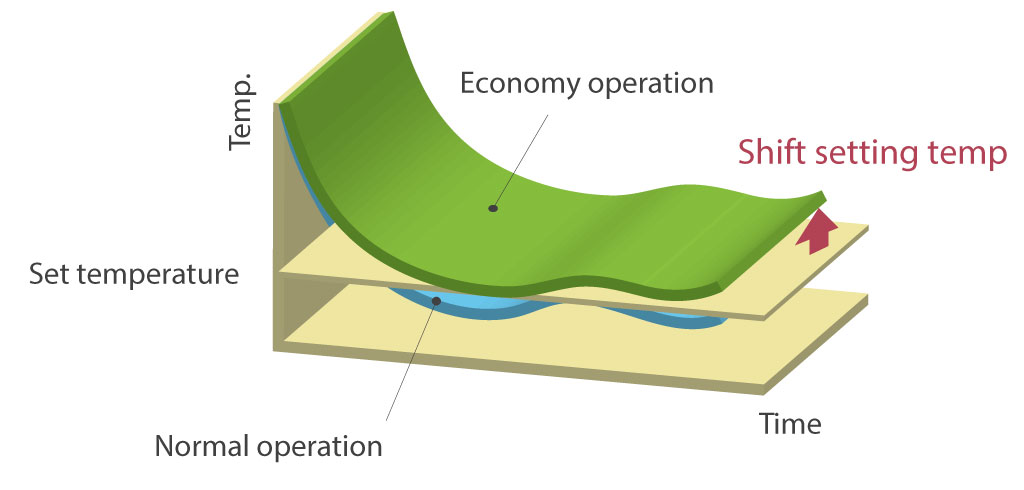

Economy operation

Setting temp. is shifted by 1°C automatically.

Ex. : Cooling operation

General__AC_ASGG09jltb_inverter_cooling

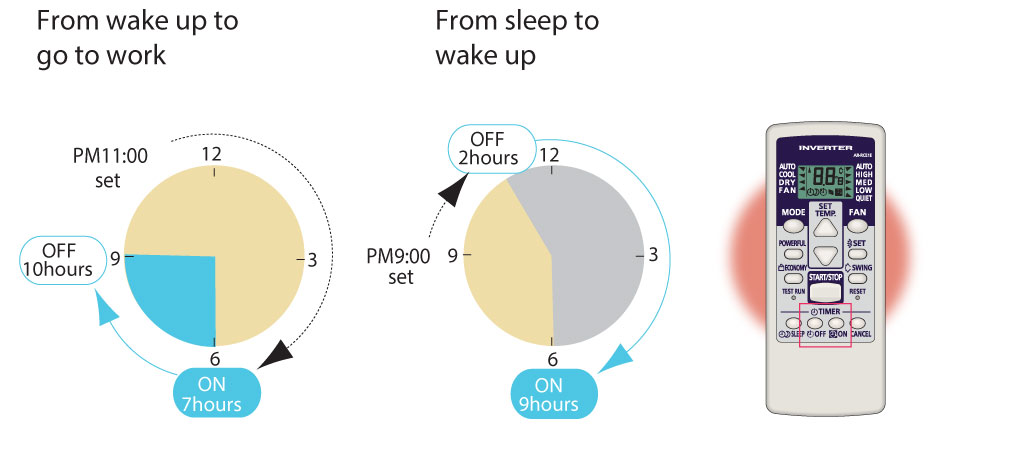

More Convenient Timer

You can set an integrated ON-OFF or OFF-ON timer suitable
for your life style.
(Setting time: 0.5, 1, 1.5, 2, 2.5, —–9.5, 10, 11, 12 hours).

General__AC_ASGG09jltb-remote
Easy maintenance

Removable & washable panel

bao_duong_may_lanh_general

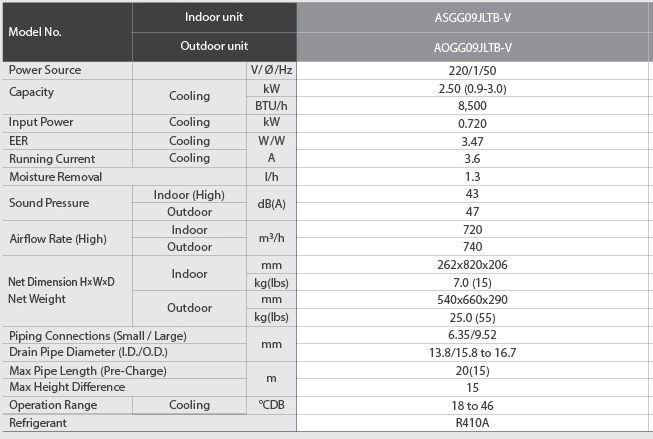

General Inverter Air Conditioner ASGG09JLTB-V (1.0Hp) - Specifications



thongsoktASGG09jltb-v1
