Indoor Unit Wall-Mounted AC Multi Mitsubishi Heavy SRK60ZMX-S (2.5Hp) Inverter

Indoor Unit Wall-Mounted AC Multi Mitsubishi Heavy SRK60ZMX-S (2.5Hp) Inverter

8,650,000
Phí vật tư có thể phát sinh: 665,000đ. Xem chi tiết vật tư.

Email: kinhdoanh@sieuthimaylanh.com
(Open 08. am-17.pm everyday)
Warranty
02 year
Capacity
Air Conditioner 2.5 HP
Type
Inverter Air Conditioner
Refrigerant
Gas R410A
Specifications
Made in:Brand of Japanese, Made in Thailand
Refrigerant:R410A
Type:Inverter AC - Cooling Only
Cooling Capacity:2.5 Hp - 20.500 Btu/h
Use For Room:Room Area 31 - 35 m² or Volume 93 - 105 m³ ( Suitable for living room, office )
Power Input (Ph/V/Hz):1 phase, 220 - 240V, 50Hz
Power consumption (kW):12,5 Kw (5,0 - 14,0)
Refrigerant/ Liquid Pipe Diameter (mm):9.52 / 15.88
Dimensions (H x W x D):309 x 890 x 220 (mm)
Weigh:15 (kg)
Description

SCM Multi Premium - SRK - ZR Wall mounted type
CERTIFIED BY RoHS Standard

Adapted to RoHS directvive

RoHS: Restriction of Hazardous substances

In order to avoid the release of hazardous substances into the environments, all models have utilized lead-free solder application. It has been considered to be difficult to use lead-free solder for practical applications because it requires higher solder temperatures as assembly, which can jeopardize reliability. However our PbF soldering method can produce a higher quality lead-free printed circuit board.

Mitsubishi_Heavy_SRK25ZM-S_5

QUICK & HIGH FEFICIENCY CONTROL DC INVERTER

An inverter driven systam has a number of perfomance advantages over a constant speef system. For example, its variable compressor output can ensure quick heating afer a startup and attain a set temperature more quickly.
Then, The air conditioner can slow down its compressor speed to save energy, keeping comfortable conditions. Moreover, the compressor is DC driven, so it provides higher performance.

New Inverter Control ( Vector control)

The new inverter control, with the advanced vector control technology, functions at high efficiency.
Smooth operation from low speed to high speed
Smooth Sine Voltage Wave fform ả
Energy efficiency is furrther improved in low speed range.

Mitsubishi_Heavy_SRK25ZM-S_1

Employment of R410A

All models use refrigerant R410A characterized by the ozone depletion coefficient being 0.

Remote control

Mitsubishi_Heavy_SRK25ZM-S_5

Clean Operation/Filter

Mitsubishi_Heavy_SRK25ZM-S_6

Allergen clear filter
The filter breaks down the pollen, lice, and all allergens that live on cat skins, etc.. and deactivates them.
Natural solar Filter
It keeps air fresh by deodorizing the molecules causing odor. The deodorizing ability can be easily restored simply by cleaning and exposing to the sunlight.
Self clean Operation
The operation is operated for 2 hours after the unit has stopped its normal operation. The indoor unit is dried up and growth of mold is restrained.
Allergen clear systerm
The system is equipped to suppress the influence of the allergen cought by the filter by controlled the temperature and humidity.

Comfortable Functions

Mitsubishi_Heavy_SRK25ZM-S_7

Fuzzy auto mode
Automatically, the unit determines its operating mode and adjusts the inverter frequency..
Automatic Operation
The air conditioner automatically selects from among heating, cooling and dry operations.
" HI POWER" operation
The unit can operation continuously in " HI POWER" mode for 15 minutes. This mode is convenient to reach the desirf

COMFORTABLE AIR FLOW FUNCTIONS

Mitsubishi_Heavy_SRK25ZM-S_8

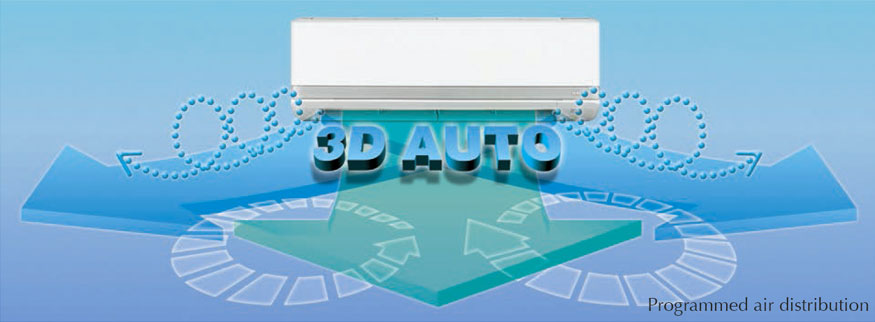

3D AUTO
One touch progammed and three motors (one vertical working motor + two horizontal working motors) make three independent air flow controls.
Auto flap mode
Whatever the operating mode is the unit automatically selects the optimal angle.
Memory flap
While the flap is swinging it can be stopped at any angle desired. The flap returns to  the position that it was in when operation last stopped.
Up/Down flap swing
The UP/DOWN flap can be adjust to the preferred operations angle, ranging from horizontal to perpendicular.
Lateral swing
It sends a pealsant breeze to a wide range in the room by swinging the louver angle can be fixed at any desired position.
Positioning of installation
You can set the left-right air flow directions when you installed the air conditioner near the side wall by remote controller operation.

Mitsubishi_Heavy_SRK25ZM-S_11

Maintenance & Prevention Funtions

Mitsubishi_Heavy_SRK25ZM-S_9

Microcomputer- Operated Defrosting
This mode automatically eliminates frost and helps minimize excessive operation in other modes.
Self-Diagnostic Funtion
In the case that the air conditioner malfunctions an internal microcomuter automatically runs a self-diagnosis.
Detachable indoor Air Inlet Panel
The air inlet panel on the indoor unit opens the closes easily, making filter cleaning simple. The suction panel can also de removed.

CONVENIENCE & ECONOMY FUNCTIONS

Mitsubishi_Heavy_SRK25ZM-S_10

Economy Mode
The unit realizes effective energy saving operation, while still keepiing a comfortable cooling and heating.
Dry operation
The unit dehumidifies the room by intermittent cooling operation.
Off timer
the unit stops autpmatically at the set time.
On timer
This facility enables the operation to start a little earlier, so thât the room approaches optimum temperature at ON time when te operation is started by ON _TMER.
Sleep Mode
The room temperature is automatically controlled during the set sleep mode period, ensuring that room temperature will not get too cold or too hot
 " Night Setback"
During cold seasons, room temperatures can be maintained at a comfortable level even while the room is  unattended.
The air conditioner keeps the temperature at 100C.
 < Weekly timer>
This faciliy enables the operation to start a little earlier, so that the room approaches optimum temperature at ON time when the operation is started by ON-TIMER.
Thus it will try to be at the temperature you want when you want.
Silent operation
The sound level of outdoor units is at least 3dB(A) lower than the nominal level.

OTHERS

Mitsubishi_Heavy_SRK10YL_16

Back-up Switch
On the main unit, there is a backup on/off switch, which is useful when you can't use remote control or batteries are
Auto Restart Funtion
Power blackout auto restart function is a function that records, the operational status of the air-conditioner immediately prior to it being switched off by a power cut and the automatically resumes operations at that point after the power has been restored.
Luminous Button
With wireless " Luminous" remote controls that even " glow in the dark" , it is possible to operate all desired functions of the unit with the click of a button.
24 -hour ION
Tourmaline-coated sheet generates negatives ions around the clock. Even when the air conditioner is not running, it generates as many negative ions as a forest, stream or fall does, allowing you  to experience them without incurring any electricity charges.

Mitsubishi_Heavy_SRK25ZM-S_13
