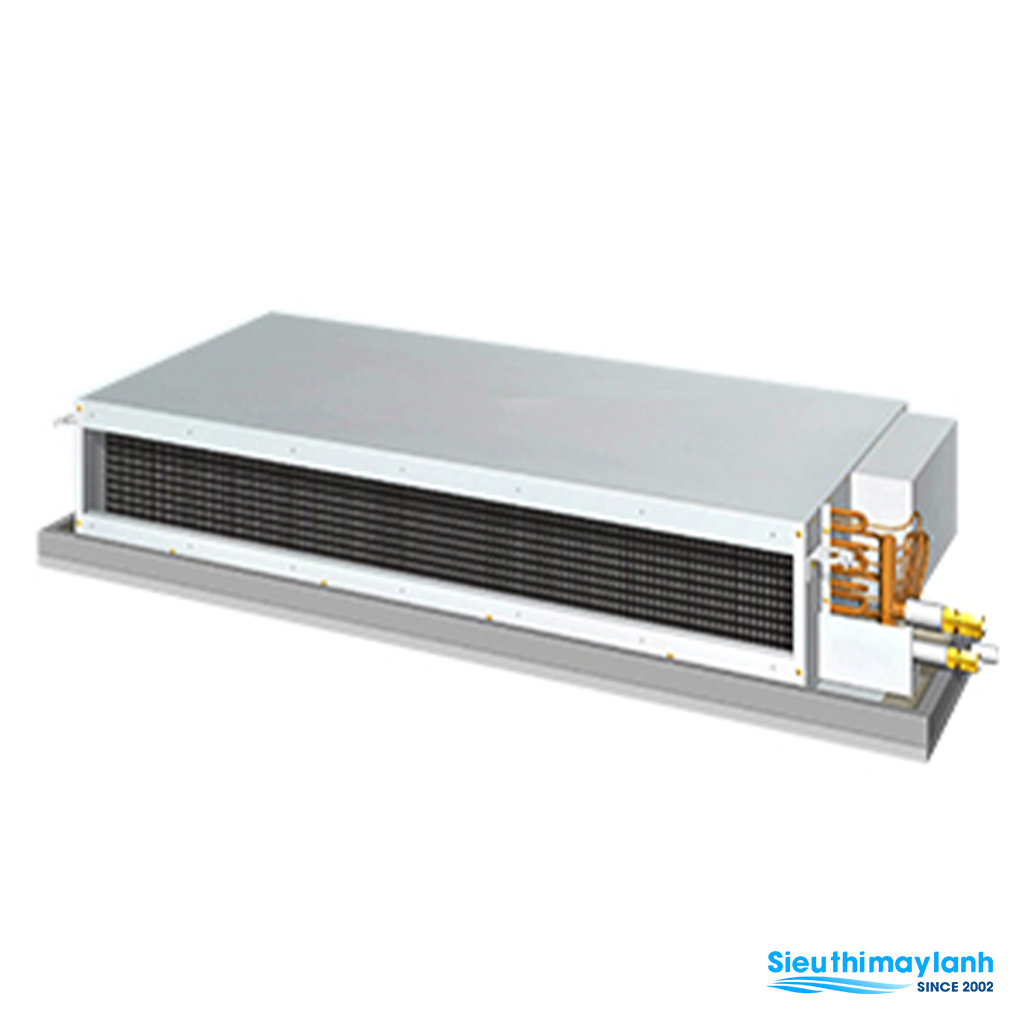

Daikin Ceiling Duct AC FDBNQ18MV1 (2.0 Hp)

Daikin Ceiling Duct AC FDBNQ18MV1 (2.0 Hp)

Giá: liên hệ
3 công suất làm lạnh. Bạn đang chọn 2.0 Hp
Phí vật tư có thể phát sinh: 665,000đ. Xem chi tiết vật tư.

Email: kinhdoanh@sieuthimaylanh.com
(Open 08. am-17.pm everyday)
Warranty
02 years for components
05 years for compressor
Capacity
Air Conditioner 2.0 HP
Type
Non-Inverter Air Conditioner
Refrigerant
Gas R410A
Specifications
Made in:Brand of Japanese, Made in Thailand
Refrigerant:R410A
Type:Non - Inverter AC - Cooling Only
Cooling Capacity:2.0 Hp - 17.700 Btu/h
Use For Room:Room area 24 - 30 m² or volume 72 - 90 m³ ( Suitable for living room, office )
Power Input (Ph/V/Hz):1 Phase, 220 - 240 V, 50Hz
Power consumption (kW):5.2 KW
Refrigerant/ Liquid Pipe Diameter (mm):30 mm
Maximum Pipe Length:15 m
Maximum Elevation Length:15 m
Indoor Unit
Indoor Unit Model:FDBNQ18MV1
Indoor Unit Dimensions (mm):260 x 900 x 580 mm
Indoor Unit Net Weight (Kg):25 (kg)
Outdoor Unit
Outdoor Unit Model:RNQ18MV1
Outdoor Unit Dimensions (mm):595 x 845 x 300 mm
Outdoor Unit Net Weight (Kg):40 (kg)
Description

Wide Variety of Indoor Units

Daikin meets your needs with full lineup for various types of indoor units (Ceiling mounted cassette type, Ceiling suspended type, Duct connection type and Floor standing type) and power supplies.

Navigation Remote with Simple Operation, Weekly Schedule Timer

Simple, modern designed with fresh white color matches your interior design.

Easy to use and smoother operation by following the indications

pic_navigation_remote_with_simple_operation_weekly_schedule_timer

Anti-Corrosion Treatment for Outdoor Unit Heat Exchanger

To achieve increased durability by improved resistance to salt corrosion and atmospheric pollution, coated PE fins (with special acryl pretreatment) are used for the heat exchanger of the outdoor unit.

daikin_FCQ50KA_7
Quiet Operation
 Depending on types of indoor units, sound level can range from
32 dB(A) to 45 dB(A). Outdoor unit operation sound is from
48 dB(A) to 58 dB(A).
This data is based on “Examples of Sound Levels”, Ministry of the Environment, Japan, November 12, 2002.
pic_quiet_operation

Easy Installation and Maintenance

Pre charged for up to 15 m (Applies to RNQ30-48M)

4-direction piping offers greater layout freedom (Applies to RNQ30-48M).

pic_easy_installation_and_maintenance
Compact
Small, lightweight, and easy-to-install indoor unit
* To prevent increased operation sound, avoid installing the air suction grille directly below the suction chamber.
Daikin_FDBNQ18MV1_1
Note : 270 mm is the minimum size. Extra height is necessary for drain piping slope and insulation
Quiet operation  (220V) dB(A)
Indoor unitHighLow
09/13/18M4138
21/26M4340



Simultaneous air conditioning of two rooms and ventilation grille (ventilation opening)

(This feature also applies to duct connection middle static pressure type.)

When air conditioning two rooms simultaneously, the air discharged into each room must be circulated back to the air conditioner. To achieve this, a ventilation duct should be installed for each room or one of the indicated ventilation grilles should be installed on the partitioning wall or under the door between the rooms.

Daikin_FDBNQ18MV1_2

Note: The under-door cutout method should be used only when there is a small volume of airflow.

Daikin_FDBNQ18MV1-3

Note :
1. Rated cooling capacities are based on the following conditions: Indoor temp., 27°CDB, 19.0°CWB; outdoor temp. 35°CDB, 24°CWB. Equiv. refrigeration piping, 7.5 m (horizontal).
2. Capacities are net, including a deduction for cooling for indoor fan motor heat.
3. Please see fan characteristic document in detail.
4. Anechoic chamber conversion value, measured according to JIS parameters and criteria. During operation these values are somewhat higher owing to ambient conditions.
