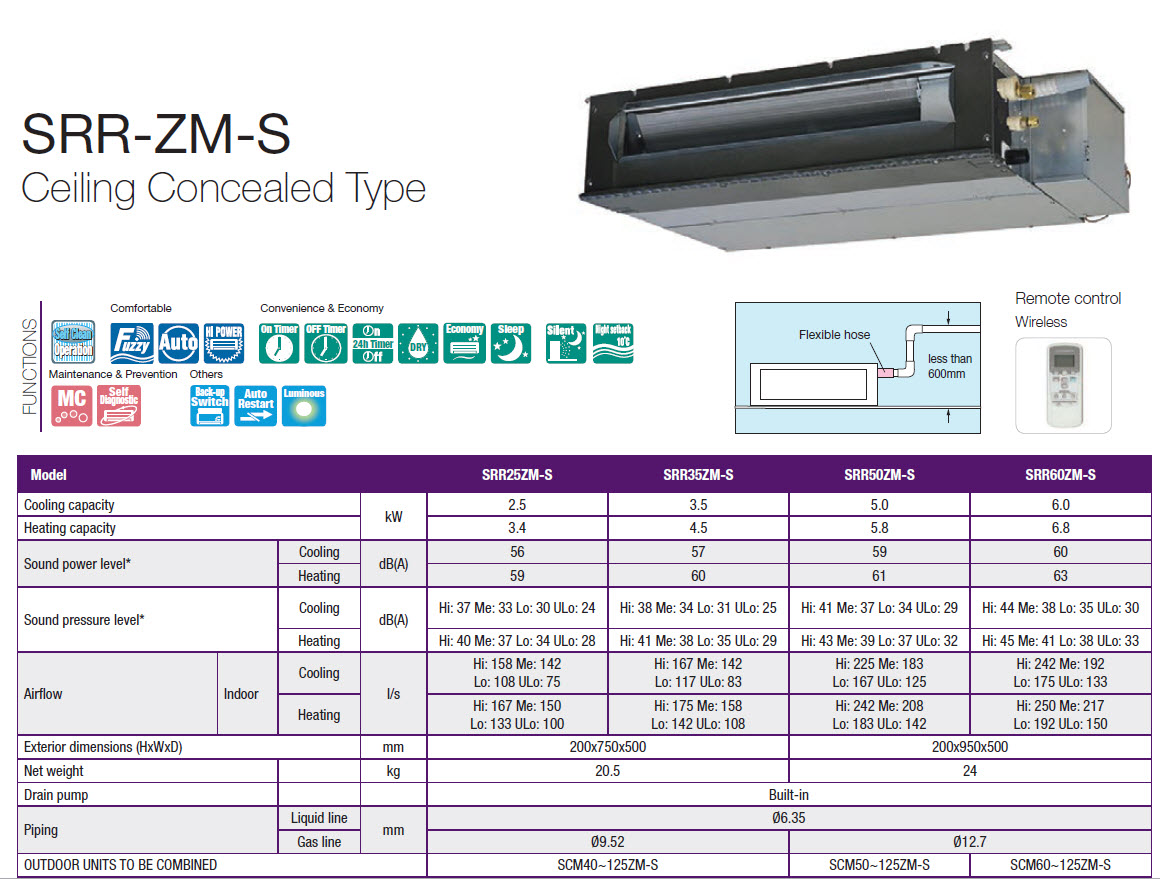

DUCT CONNECTED SCM Multi Premium SRR - ZM
CERTIFIED BY RoHS Standard
Adapted to RoHS directvive
RoHS: Restriction of Hazardous substances
In order to avoid the release of hazardous substances into the environments, all models have utilized lead-free solder application. It has been considered to be difficult to use lead-free solder for practical applications because it requires higher solder temperatures as assembly, which can jeopardize reliability. However our PbF soldering method can produce a higher quality lead-free printed circuit board.
CLEAN OPERATION/ FILTER
Self clean operation
The operation is operated for 2 hours after the unit has stopped its normal operation. The indoor unit is dried up and growth of mold is restrained.
Comfortable Functions
Fuzzy auto mode
Automatically, the unit determines its operating mode and adjusts the inverter frequency..
Automatic Operation
The air conditioner automatically selects from among heating, cooling and dry operations.
" HI POWER" operation
The unit can operation continuously in " HI POWER" mode for 15 minutes. This mode is convenient to reach the desired temperature quickly.
Microcomputer- Operated Defrosting
This mode automatically eliminates frost and helps minimize excessive operation in other modes.
Self-Diagnostic Funtion
In the case that the air conditioner malfunctions an internal microcomuter automatically runs a self-diagnosis.
Detachable indoor Air Inlet Panel
The air inlet panel on the indoor unit opens the closes easily, making filter cleaning simple. The suction panel can also de removed.
CONVENIENCE & ECONOMY FUNCTIONS
Economy Mode
The unit realizes effective energy saving operation, while still keepiing a comfortable cooling and heating.
Dry operation
The unit dehumidifies the room by intermittent cooling operation.
Off timer
the unit stops autpmatically at the set time.
On timer
This facility enables the operation to start a little earlier, so thât the room approaches optimum temperature at ON time when te operation is started by ON _TMER.
Sleep Mode
The room temperature is automatically controlled during the set sleep mode period, ensuring that room temperature will not get too cold or too hot
" Night Setback"
During cold seasons, room temperatures can be maintained at a comfortable level even while the room is unattended.
The air conditioner keeps the temperature at 100C.
< Weekly timer>
This faciliy enables the operation to start a little earlier, so that the room approaches optimum temperature at ON time when the operation is started by ON-TIMER.
Thus it will try to be at the temperature you want when you want.
OTHERS
Back-up Switch
On the main unit, there is a backup on/off switch, which is useful when you can't use remote control or batteries are
Auto Restart Funtion
Power blackout auto restart function is a function that records, the operational status of the air-conditioner immediately prior to it being switched off by a power cut and the automatically resumes operations at that point after the power has been restored.
Luminous Button
With wireless " Luminous" remote controls that even " glow in the dark" , it is possible to operate all desired functions of the unit with the click of a button.

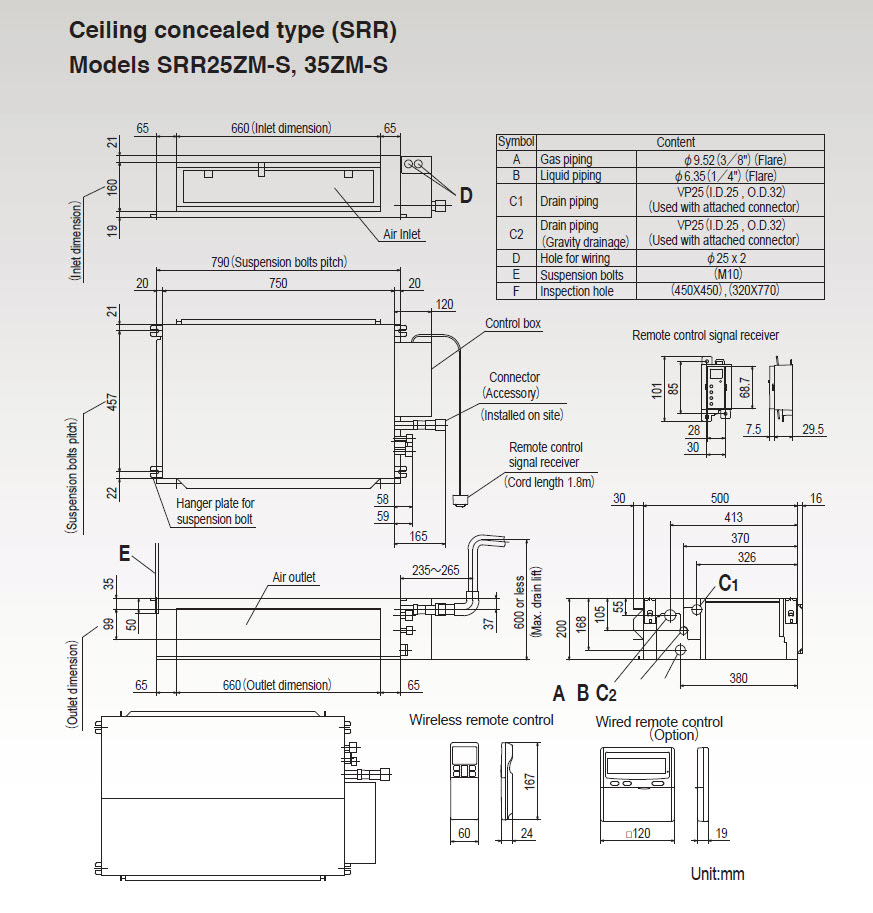

Ceiling concealed type (SRR)
Models SRR25ZM-S, 35ZM-S

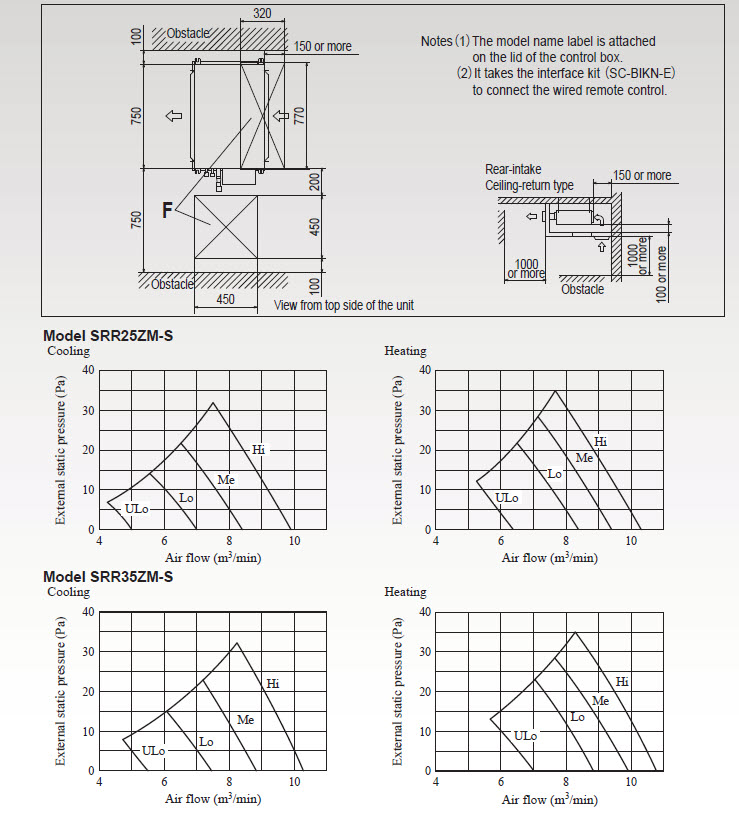

Space for installation and service
