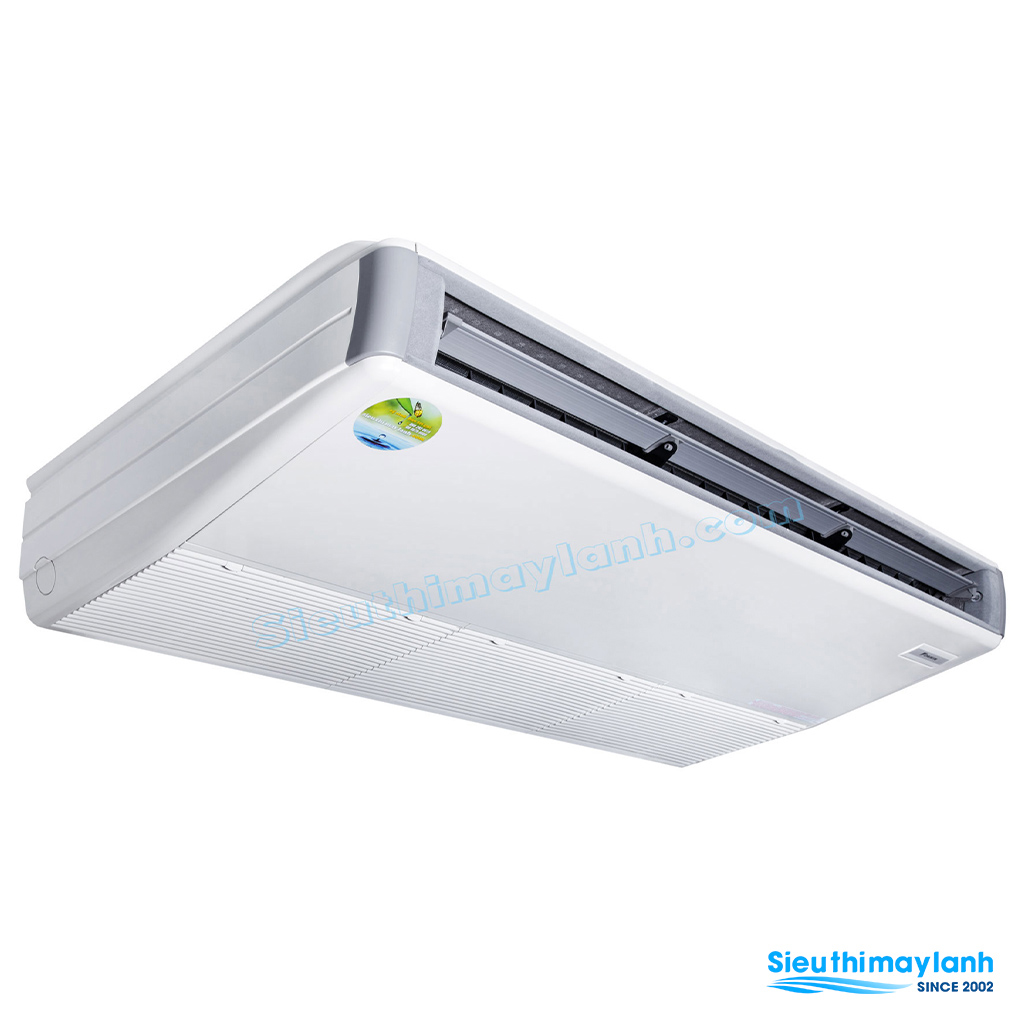

Daikin Ceiling Suspended AC FHNQ42MV1 (4.5Hp)
Daikin Ceiling Suspended AC FHNQ42MV1 (4.5Hp)
Daikin Ceiling Suspended AC FHNQ42MV1 (4.5Hp)
Daikin Ceiling Suspended AC FHNQ42MV1 (4.5Hp)
Daikin Ceiling Suspended AC FHNQ42MV1 (4.5Hp)

Daikin Ceiling Suspended AC FHNQ42MV1 (4.5Hp)

33,400,000
Phí vật tư có thể phát sinh: 1,165,000đ. Xem chi tiết vật tư.

Email: kinhdoanh@sieuthimaylanh.com
(Open 08. am-17.pm everyday)
Warranty
02 years for components
05 years for compressor
Capacity
Air Conditioner 4.5 HP
Type
Non-Inverter Air Conditioner
Refrigerant
Gas R410A
Specifications
Made in:Brand of Japanese, Made in Thailand
Refrigerant:R410A
Type:Non - Inverter AC - Cooling Only
Cooling Capacity:4.5 Hp (4.5 Ngựa) - 42.000 Btu/h
Use For Room:Room area 57 - 60 m² or volume 171 - 180 m³ ( Suitable for living room, office )
Power Input (Ph/V/Hz):3 Phase, 380 - 415 V, 50Hz
Power consumption (kW):4,51 Kw
Refrigerant/ Liquid Pipe Diameter (mm):9.5 / 15.9
Maximum Pipe Length:50 (m)
Maximum Elevation Length:30 (m)
Cooling Seasonal Performance Factor (CSPF):2.9
Indoor Unit
Indoor Unit Model:FHNQ42MV1

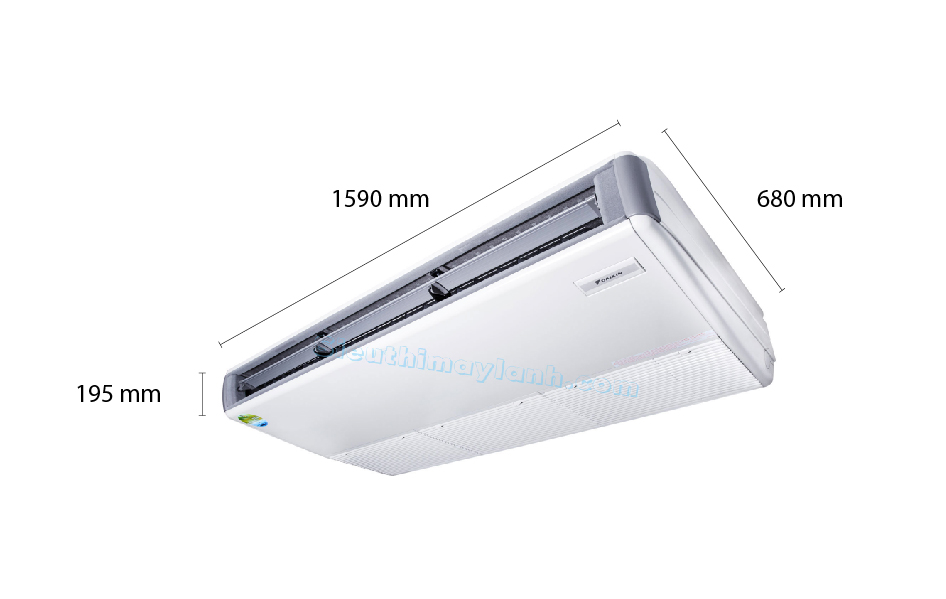

Indoor Unit Dimensions (mm):195 x 1.590 x 680 (mm)
Indoor Unit Net Weight (Kg):35 (kg)
Outdoor Unit
Outdoor Unit Model:RNQ42MY1
Outdoor Unit Dimensions (mm):1.345 x 900 x 320 (mm)
Outdoor Unit Net Weight (Kg):107 (kg)
Description

Anti-Corrosion Treatment for Outdoor Unit Heat Exchanger

To achieve increased durability by improved resistance to salt corrosion and atmospheric pollution, coated PE fins (with special acryl pretreatment) are used for the heat exchanger of the outdoor unit.

daikin_FCQ50KA_7

Easy Installation and Maintenance

Pre charged for up to 15 m (Applies to RNQ30-48M)
4-direction piping offers greater layout freedom (Applies to RNQ30-48M).

Quiet Operation

Depending on types of indoor units, sound level can range from
32 dB(A) to 45 dB(A). Outdoor unit operation sound is from
48 dB(A) to 58 dB(A).
This data is based on “Examples of Sound Levels”, Ministry of the Environment, Japan, November 12, 2002.

pic_quiet_operation

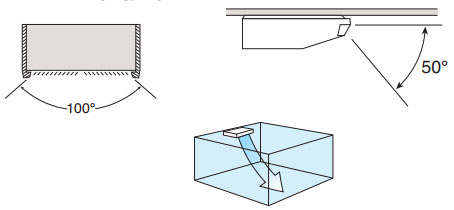

Diffuses comfortable air throughout the room

  • Auto-swing (up&down) brings comfort to the room.

  • Wide air discharge openings produce a spreading 100° airflow

  • Air is blown up to 50° in the downward direction.

  • Installable on ceilings 3.5 m high

  • Switchable fan speed: High/Low

  • Programme "Dry"

Daikin_FHNQ13MV1_4



Dehumidification is microprocessor controlled to prevent abrupt and uncomfortable changes in air temperature

Installation flexibility for freedom of design

  • Uniform height and depth. Compact design for small-capacity models to meet tighter dimensional constraints
 Indoor unit 3M18/21M26/30M36/42/48M
 Height195
 Width9601,1601,4001,590
 Depth680

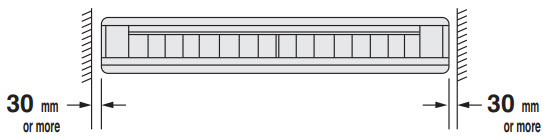

  • Flexible installation
    The unit fits more snugly into tight spaces.
    *Water used in the test-run can now be drained from the air discharge opening rather than from the side as was formerly the case.
Daikin_FHNQ13MV1_3
  • All wiring and internal servicing can be done from under the unit
  • Pipes more easily rigged
    Plastic cover is used to conceal piping work holes.
    When piping work the cover is easily taken off, and after piping work easily attached again to conceal the holes.

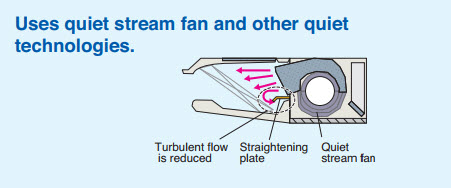

Quiet operation

Sound operation has been reduced on the exposed ceiling suspended type unit.

Indoor unitHighLow
13M4339
18/21M4440
26/30M4540
36/42M4842
48M4943

Note : Anechoic chamber conversion value, measured according to JIS parameters and criteria. During operation these values are somewhat higher owing to ambient conditions.

Daikin_FHNQ13MV1_1

Easier to maintain

  • Long-life filter lasts about 1 year*
    * For dust concentration of 0.15 mg/m3
    Two time settings (2500 hrs and 1250 hrs) are available to match the installation environment. Maintenance time warning is displayed on the remote controller (filter sign).
  • Non-flocking flap
    Condensation does not easily form on and dirt does not cling to non-flocking flap. It is easy to clean.
  • Easy-clean, flat surfaces
    It is easy to wipe dirt off the flat side and lower surfaces of the unit.
  • For all maintenance tasks, access is from bottom surface.

Oil resistant grille

  • Oil-resistant plastic is used for the air suction grille.
    This satisfies durability in restaurants and other similar environments.

Note: Intended for use in salons, dining rooms, and ordinary sales floors, this specification is not suitable for kitchens or other harsh environments.

 30364248

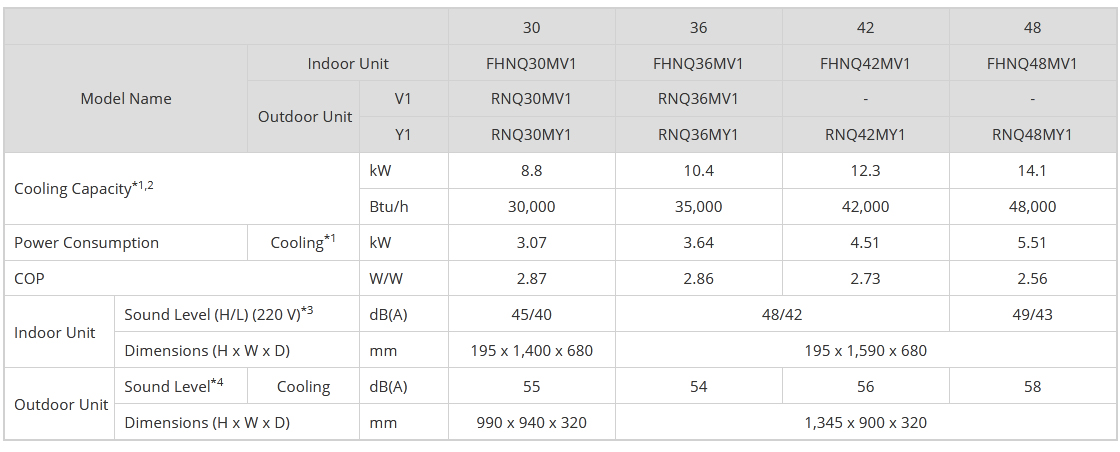

Model NameIndoor UnitFHNQ30MV1FHNQ36MV1FHNQ42MV1FHNQ48MV1
 Outdoor UnitV1RNQ30MV1RNQ36MV1--
Y1RNQ30MY1RNQ36MY1RNQ42MY1RNQ48MY1
 Cooling Capacity*1,2 kW8.810.412.314.1
 Btu/h30,00035,00042,00048,000
 Power ConsumptionCooling*1 kW3.073.644.515.51
 COP  W/W2.872.862.732.56
 Indoor Unit Sound Level (H/L) (220 V)*3 dB(A)45/4048/4249/43
 Dimensions (H x W x D) mm195 x 1,400 x 680195 x 1,590 x 680
 Outdoor Unit Sound Level*4Cooling dB(A)55545658
 Dimensions (H x W x D) mm990 x 940 x 3201,345 x 900 x 320

Note:
*1Rated cooling capacities are based on the following conditions: Indoor temp., 27°CDB, 19.0°CWB; outdoor temp. 35°CDB, 24°CWB. Equiv. refrigeration piping, 7.5 m (horizontal).
*2Capacities are net, including a deduction for cooling for indoor fan motor heat.
*3Anechoic chamber conversion value, measured according to JIS parameters and criteria. During operation these values are somewhat higher owing to ambient conditions.
*4In case of MV1: 220V, MY1: 380V.
