Daikin Ceiling Suspended AC Inverter FHQ140DAVMA (6.0Hp) - 1 phase
Daikin Ceiling Suspended AC Inverter FHQ140DAVMA (6.0Hp) - 1 phase
Daikin Ceiling Suspended AC Inverter FHQ140DAVMA (6.0Hp) - 1 phase
Daikin Ceiling Suspended AC Inverter FHQ140DAVMA (6.0Hp) - 1 phase
Daikin Ceiling Suspended AC Inverter FHQ140DAVMA (6.0Hp) - 1 phase

Daikin Ceiling Suspended AC Inverter FHQ140DAVMA (6.0Hp) - 1 phase

46,200,000
Phí vật tư có thể phát sinh: 3,268,000đ. Xem chi tiết vật tư.

Email: kinhdoanh@sieuthimaylanh.com
(Open 08. am-17.pm everyday)
Warranty
02 years for components
05 years for compressor
Capacity
Air Conditioner 6.0 HP
Type
Inverter Air Conditioner
Refrigerant
Gas R32
Specifications
Made in:Brand of Japanese, Made in Thailand
Refrigerant:R410A
Type:Inverter AC - Cooling Only
Cooling Capacity:6.0 Hp - 47.800 Btu/h
Use For Room:Room area 77 - 80 m² or volume 231 - 240 m³ ( Suitable for living room, office )
Power Input (Ph/V/Hz):1 phase, 220 - 240V, 50Hz
Power consumption (kW):5.55 Kw
Refrigerant/ Liquid Pipe Diameter (mm):9.5 / 15.9
Maximum Pipe Length:50 (m)
Maximum Elevation Length:30 (m)
Cooling Seasonal Performance Factor (CSPF):4.69
Indoor Unit
Indoor Unit Model:FHQ140DAVMA

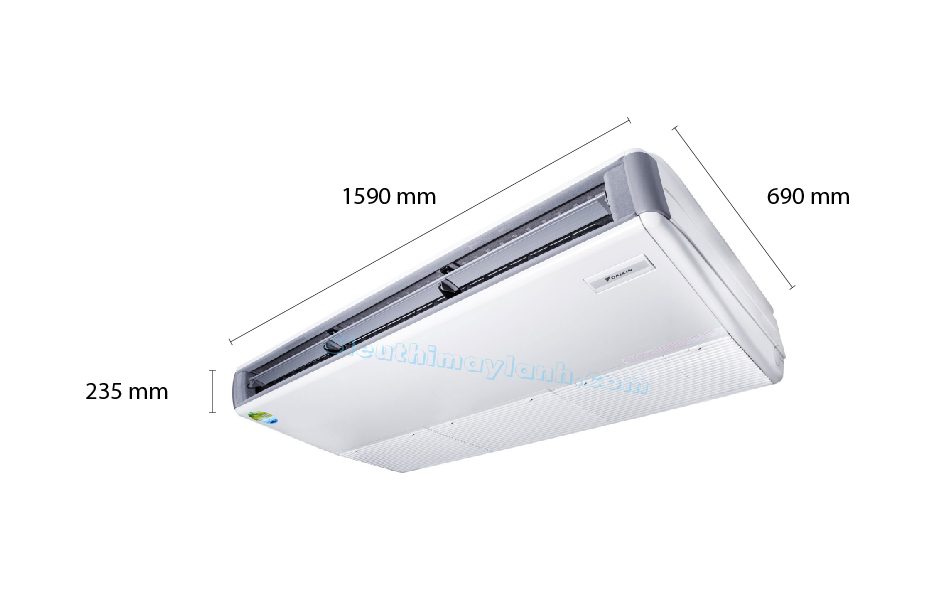

Indoor Unit Dimensions (mm):235 x 1.590 x 690 (mm)
Indoor Unit Net Weight (Kg):38 (kg)
Outdoor Unit
Outdoor Unit Model:RZR140MVM
Outdoor Unit Dimensions (mm):990 x 940 x 320 (mm)
Outdoor Unit Net Weight (Kg):65 (kg)
Description

Anti-Corrosion Treatment for Outdoor Unit Heat Exchanger

To achieve increased durability by improved resistance to salt corrosion and atmospheric pollution, coated PE fins (with special acryl pretreatment) are used for the heat exchanger of the outdoor unit.

daikin_FCQ50KA_7

The latest stylish model

  • Sophisticated design
    Flap neatly closes when not in use.
  • White colour

Comfortable

  • Louver manually adjusts for straight or wide angle airflow

Daikin_FHQ50DAVMA_1

  • The technology of the DC fan motor, wide sirocco fan, and large heat exchanger combine for greater airflow and quiet operation
  • Auto swing (up and down) and louvers (left and right by hand) bring comfort to the room
  • Suitable for high ceilings

Daikin_FHQ50DAVMA_5

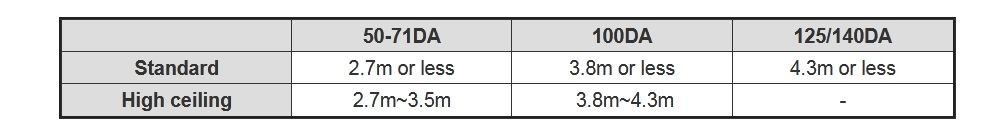

  50-71DA100DA125/140DA
Standard2.7m or less3.8m or less4.3m or less
High ceiling2.7m~3.5m 3.8m~4.3m-

Note: Factory settings is “standard”.
 “High ceiling” are set with remote controller by field setting.

  • Two selectable temperature-sensors
    Temperature-sensors are included in the indoor unit and optional wired remote controller. Temperature sensing closer to target area is possible to further increase the comfort level.
    Use the temperature-sensor in the indoor unit when controlling air conditioning from another room.
  • Switchable fan speed: High/Middle/Low
  • Programme "Dry"
    Dehumidification is microprocessor controlled to prevent abrupt and uncomfortable changes in air temperature. Useful for reducing uncomfortable humidity without uncomfortable cooling of the room.
Daikin_FHQ50DAVMA_6
Note: Wireless remote controllers have no temperature-sensor.

Installation flexibility for freedom of design

  • Flexible installation
    The unit fits more snugly into tight spaces.
Daikin_FHQ50DAVMA_2
*Water used in the test-run can be drained from the air discharge opening rather than from the side as was formerly the case.
  • Drain pump kit (option) can be easily incorporated
    Drain pipe connection can be done inside the unit. Refrigerant and drain pipe outlets are at the same opening.
  • DIII-NET communication standard
    Connection to a centralised control system is available without option.
Daikin_FHQ50DAVMA_3
  • All wiring and internal servicing can be done from under the unit
  • Easier piping work for rear side by removable frame
Daikin_FHQ50DAVMA_4

Easy maintenance

Drain pump kit (option) includes a silver ion antibacterial agent that assists in preventing the growth of slime, bacteria, and mould that cause smells and clogging

Non-flocking flap

Condensation does not easily form on and dirt does not cling to non-flocking flap. It is easy to clean.

Easy-clean, flat surfaces
It is easy to wipe dirt off the flat side and lower surfaces of the unit.

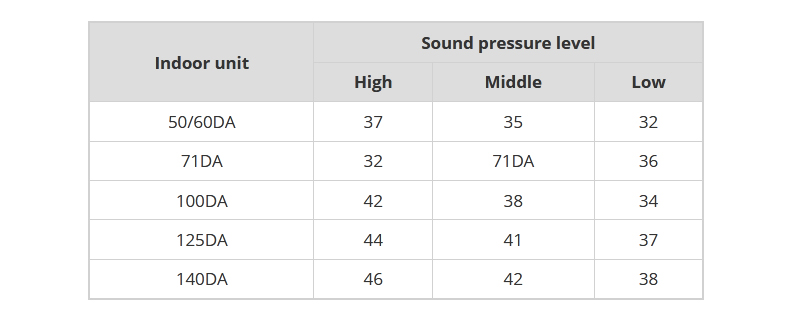

Quiet operation      dB(A)

Indoor unitSound pressure level
HighMiddleLow
50/60DA373532
71DA3271DA36
100DA423834
125DA444137
140DA464238

Oil resistant grille

  • Oil-resistant plastic is used for the air suction grille. This satisfies durability in restaurants and other similar environments.
    |Note: Intended for use in salons, dining rooms, and ordinary sales floors, this specification is not suitable for kitchens or other harsh environments

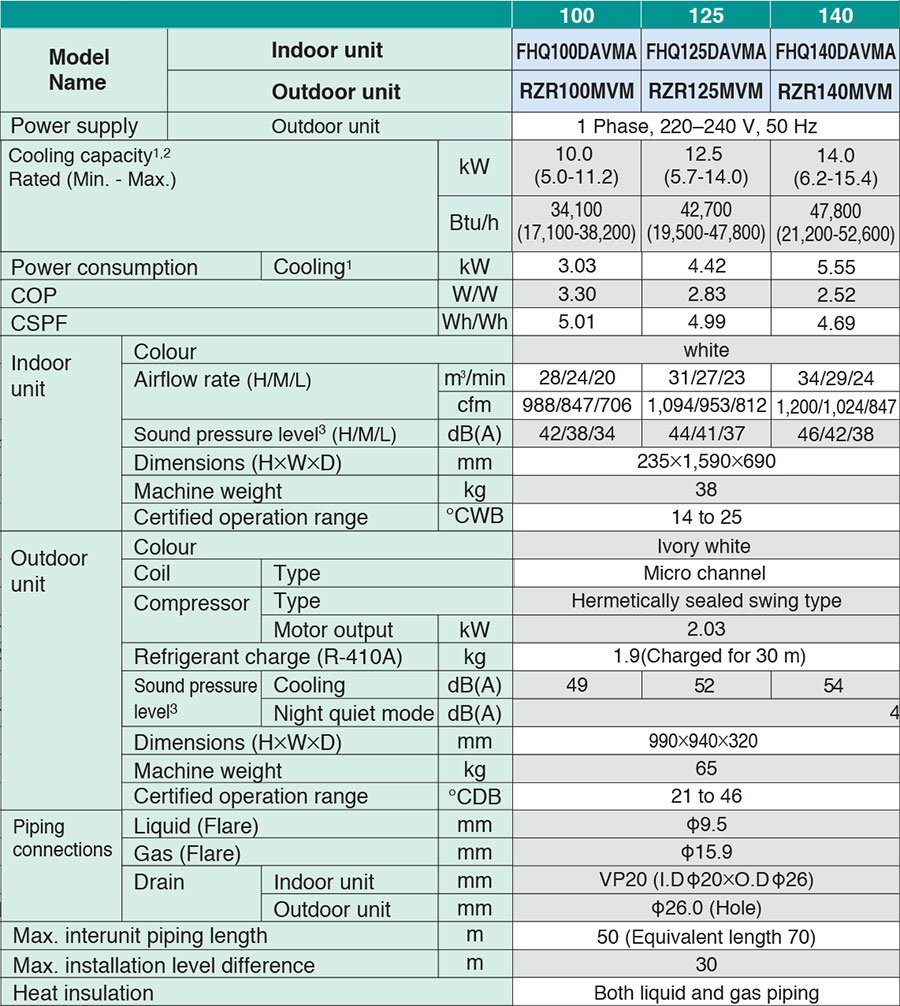

CEILING SUSPENDED TYPE

Daikin_FHQ50DAVMA-8
Note :
1. Rated cooling capacities are based on the following conditions: Indoor temp., 27°CDB, 19.0°CWB; outdoor temp. 35°CDB, 24°CWB. Equiv. refrigeration piping, 7.5 m (horizontal).
2. Capacities are net, including a deduction for cooling for indoor fan motor heat.
3. The operation sound is measured in anechoic chamber. If it is measured under the actual installation conditions, it is normally over the set value due to environmental noise and sound reflection.
