Anti-Corrosion Treatment for Outdoor Unit Heat Exchanger
To achieve increased durability by improved resistance to salt corrosion and atmospheric pollution, coated PE fins (with special acryl pretreatment) are used for the heat exchanger of the outdoor unit.

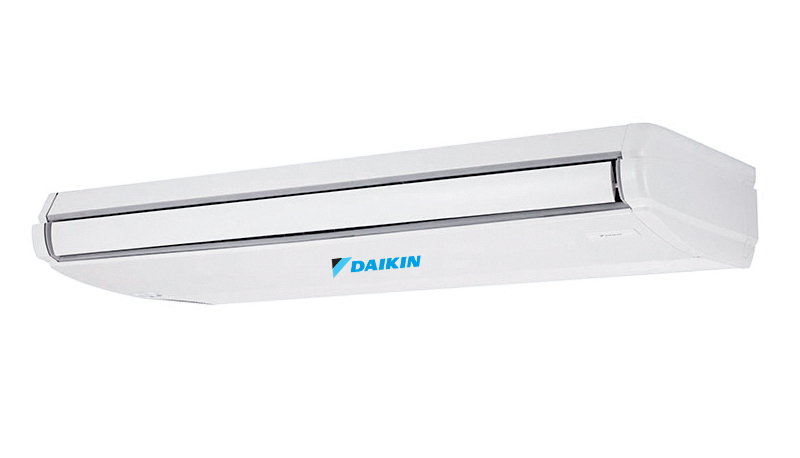

The latest stylish model
- Sophisticated design
Flap neatly closes when not in use. - White colour
Comfortable
- Louver manually adjusts for straight or wide angle airflow
- The technology of the DC fan motor, wide sirocco fan, and large heat exchanger combine for greater airflow and quiet operation
- Auto swing (up and down) and louvers (left and right by hand) bring comfort to the room

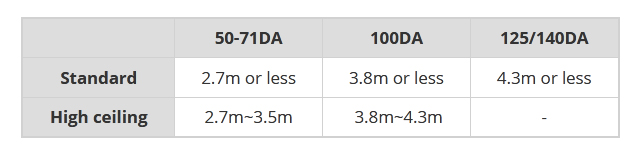

- Suitable for high ceilings
Note: Factory settings is “standard”.
“High ceiling” are set with remote controller by field setting.
- Two selectable temperature-sensors
Temperature-sensors are included in the indoor unit and optional wired remote controller. Temperature sensing closer to target area is possible to further increase the comfort level.
Use the temperature-sensor in the indoor unit when controlling air conditioning from another room. - Switchable fan speed: High/Middle/Low
- Programme "Dry"
Dehumidification is microprocessor controlled to prevent abrupt and uncomfortable changes in air temperature. Useful for reducing uncomfortable humidity without uncomfortable cooling of the room.
Note: Wireless remote controllers have no temperature-sensor.
Installation flexibility for freedom of design
- Flexible installation

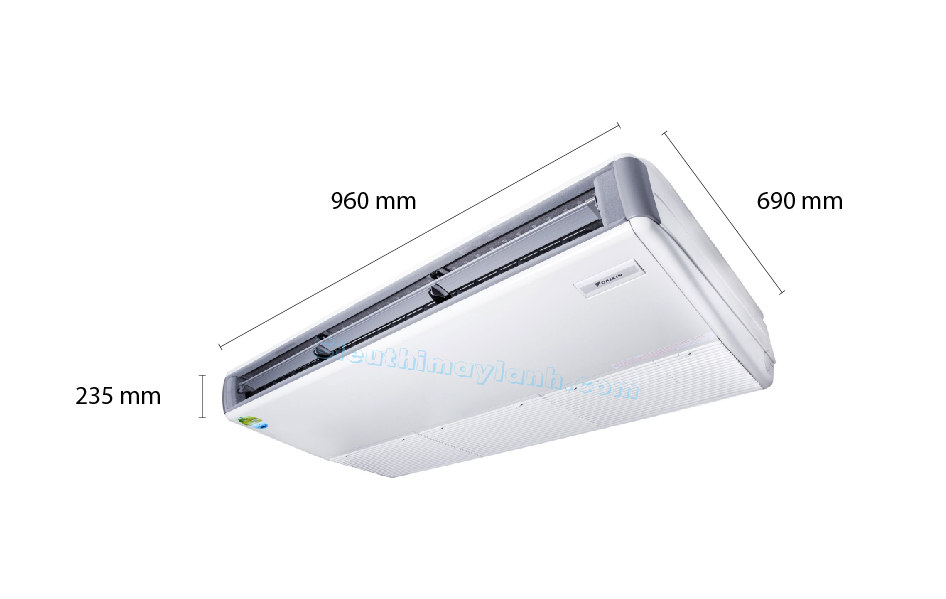

The unit fits more snugly into tight spaces.
*Water used in the test-run can be drained from the air discharge opening rather than from the side as was formerly the case.
- Drain pump kit (option) can be easily incorporated
Drain pipe connection can be done inside the unit. Refrigerant and drain pipe outlets are at the same opening. - DIII-NET communication standard
Connection to a centralised control system is available without option.
- All wiring and internal servicing can be done from under the unit
- Easier piping work for rear side by removable frame
Easy maintenance
Drain pump kit (option) includes a silver ion antibacterial agent that assists in preventing the growth of slime, bacteria, and mould that cause smells and clogging
Non-flocking flap
Condensation does not easily form on and dirt does not cling to non-flocking flap. It is easy to clean.
Easy-clean, flat surfaces
It is easy to wipe dirt off the flat side and lower surfaces of the unit.
Quiet operation dB(A)
Oil resistant grille
- Oil-resistant plastic is used for the air suction grille. This satisfies durability in restaurants and other similar environments.
|Note: Intended for use in salons, dining rooms, and ordinary sales floors, this specification is not suitable for kitchens or other harsh environments
CEILING SUSPENDED TYPE
Note :
1. Rated cooling capacities are based on the following conditions: Indoor temp., 27°CDB, 19.0°CWB; outdoor temp. 35°CDB, 24°CWB. Equiv. refrigeration piping, 7.5 m (horizontal).
2. Capacities are net, including a deduction for cooling for indoor fan motor heat.
3. The operation sound is measured in anechoic chamber. If it is measured under the actual installation conditions, it is normally over the set value due to environmental noise and sound reflection.
