Lighter than ever
Introducing the Mitsubishi Heavy Ceiling Suspended Air Conditioner Inverter (5.0Hp) FDE125YA-W5 model 2022 with its sleek and luxurious design, elegant color, and height of only 250mm, it is the perfect air conditioning solution for various spaces such as offices, factories, shops, and hotels. The cooling capacity of 12.3 kW effectively cools areas ranging from 64 - 67 m2, making it suitable for any installation space.
By decreasing the number of fan motors from two to one, we reduced the overall weight of the Mitsubishi Heavy Ceiling Suspended Air Conditioner FDE125YA-W5.
Flap Control System
The flap can swing within the range of the selected upper and lower positions.
Improved Installation Workability
The refrigerant pipe from the unit can be arranged in three directions, rear, correct, and up. The drain pipe can be placed in two directions, left and right. This will allow a free layout of piping for various installation conditions. The unit can only be serviced from the bottom.
Energy saving
The Mitsubishi Heavy Ceiling Suspended Air Conditioner FDE125YA-W5 can automatically control energy consumption in three steps.
- Power Control and Energy saving is achieved by shifting the set temperature according to the detected amount of activity.
- Stand by: When the motion sensor detects activity again, the unit will automatically re-start operation.
- Auto Off: When no activity is detected for 12 hours.
Other outstanding advantages
- The drain pump is up high, depending on the installation location.
- Flap Control System: This function allows the user to set the upper and lower limit positions of the flap at each air outlet individually, providing you with complete control over internal airflow.
- Refrigerant precharged piping length extends up to 50m. This eliminates the need to add refrigerant on-site, which sets it free from excessive or insufficient refrigerant charging and allows carrying out the installation smoothly.
- Self-diagnostic error display when the machine fails saves inspection and repair time.
- Using R32 refrigerant is pure gas, easier to handle, very environmentally friendly, performance is superior to R410A gas, easy to reuse, and significantly saves electricity.
- The outdoor unit temperature range is an extended operating range under an ambient temperature of 43°C.
Remote control

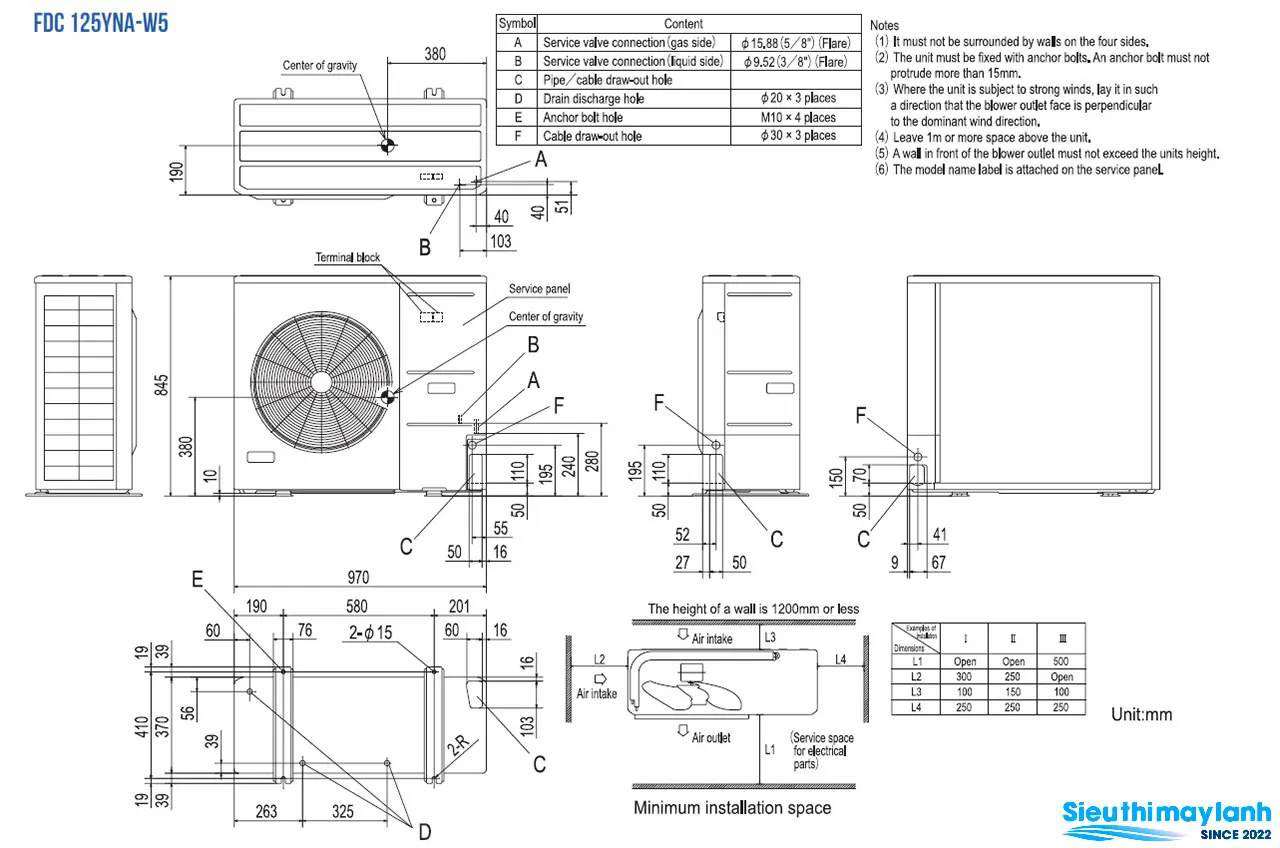

Dimension
Indoor unit
Outdoor unit
Specifications
