High efficiency
Energy efficiency was improved by use of DC fan motor & high efficient heat exchanger.
Reduction of weight
Thanks to decreasing the numbers of fan motor from two to one, reduction of weight was achieved.
Reduction of sound pressure level (Lo mode)
Flap control
The flap can swing within the range of upper and lower flap position selected with wired remote control.
Improved installation workability
Increased freedom of a piping layout
The refrigerant pipe from the unit can be arranged in three directions, rear, right and up.
The drain pipe can be arranged in two directions, left and right. This will allow a free layout of piping for various installation conditions. The unit can only be serviced from the bottom.
General Data
| Nominal cooling capacity (min-max) | kW | 24.0 ( 6.9 - 28.0 ) |
| Nominal heating capacity (min-max) | kW | 27.0 ( 5.5 - 31.5 ) |

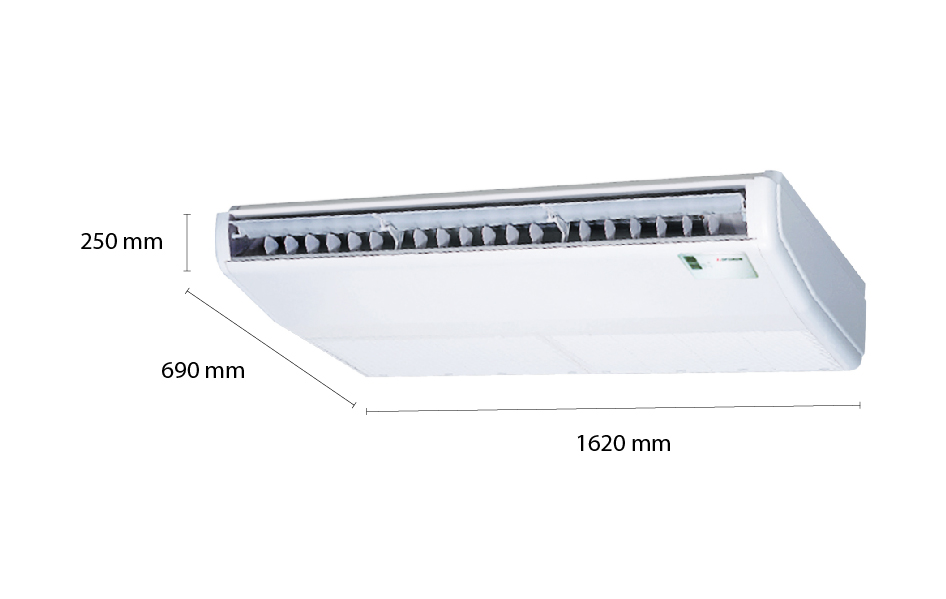

| Exterior Dimensions (H x W x D) | mm | 250 x 1620 x 690 |
| Net Weight | kg | 43 |
| Air Flow Cooling (Hi/Me/Lo) | m3/min | 32 / 29 / 23 / 17 |
| Air Flow Heating (Hi/Me/Lo) | m3/min | 32 / 29 / 23 / 17 |
| Sound Pressure Level Cooling (Hi/Me/Lo) | dB(A) | 48 / 45 / 40 / 35 |
| Sound Pressure Level Heating (Hi/Me/Lo) | dB(A) | 48 / 45 / 40 / 35 |
