Outdoor Unit AC Multi Mitsubishi Heavy SCM100ZM-S (4.0Hp) Inverter

Outdoor Unit AC Multi Mitsubishi Heavy SCM100ZM-S (4.0Hp) Inverter

41,500,000
Phí vật tư có thể phát sinh: 2,287,000đ. Xem chi tiết vật tư.

Email: kinhdoanh@sieuthimaylanh.com
(Open 08. am-17.pm everyday)
Warranty
02 year
Capacity
Air Conditioner 4.0 HP
Type
Inverter Air Conditioner
Refrigerant
Gas R410A
Specifications
Made in:Brand of Japanese, Made in Thailand
Refrigerant:R410A
Type:Inverter AC - Cooling Only
Cooling Capacity:4.0 Hp - 34.100 Btu/h
Use For Room:A 4.0 hp outdoor unit, maximum combined with 5 indoor units ( please contact the consultant for further information about the combination of the indoor units and the coefficient of the machine.
Power Input (Ph/V/Hz):1 phase, 220 - 240V, 50Hz
Power consumption (kW):2,86 Kw (0,65 - 4,03)
Energy Efficiency Ratio (EER):3.5
Dimensions (H x W x D):945 x 970 x 370 (mm)
Weigh:92 kg
Description

General Data

 Nominal cooling capacity (min-max)kW10.0 (1.8 - 12.0)
 Nominal heating capacity (min-max)kW12.0 (1.5 - 13.5)
 EER (Energy Label) 3.5
 COP (Energy Label) 4.10
 Exterior Dimensions (H x W x D)mm 945 x 970 (+73) x 370
 Net Weightkg92
 Sound Pressure Level (Cooling/Heating)dB(A)56 / 59

Elecrical Data

 Power Source   1Phase, 220 - 240V, 50Hz
 Inrush current (220/230/240v)A13.3 / 12.8 / 12.2
 Max. running currentA29
 Power consumption (cooling)kW2.86 (0.65 - 4.03)
 Power consumption (heating)kW2.93 (0.70 - 3.40)

Installation

 Ref. Max Piping Length m Max. 90
 Vertical Height differences / Outdoor is higher/lower m Max. 20 / Max. 20

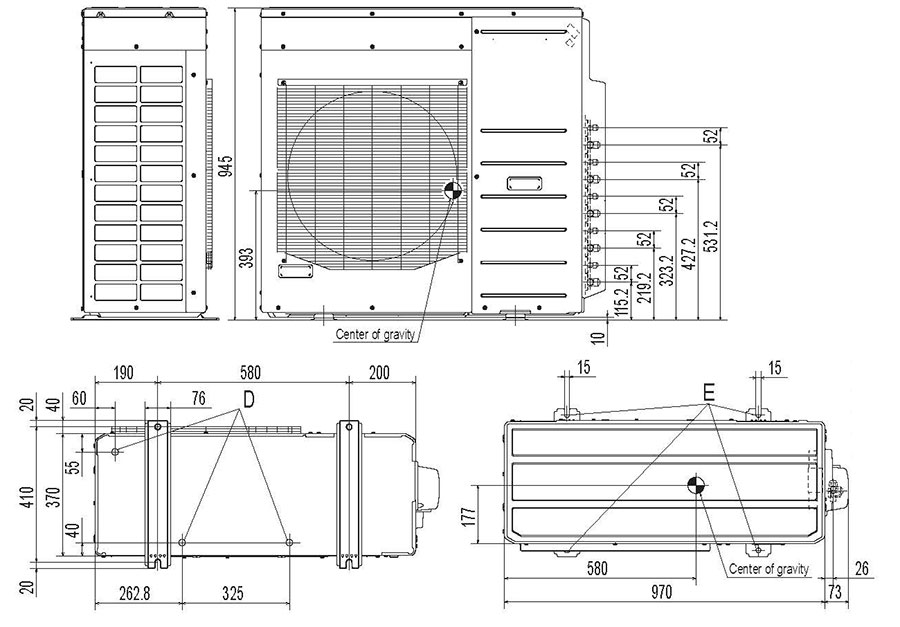

Mitsubishi-Heavy_SCM100ZM-S_2

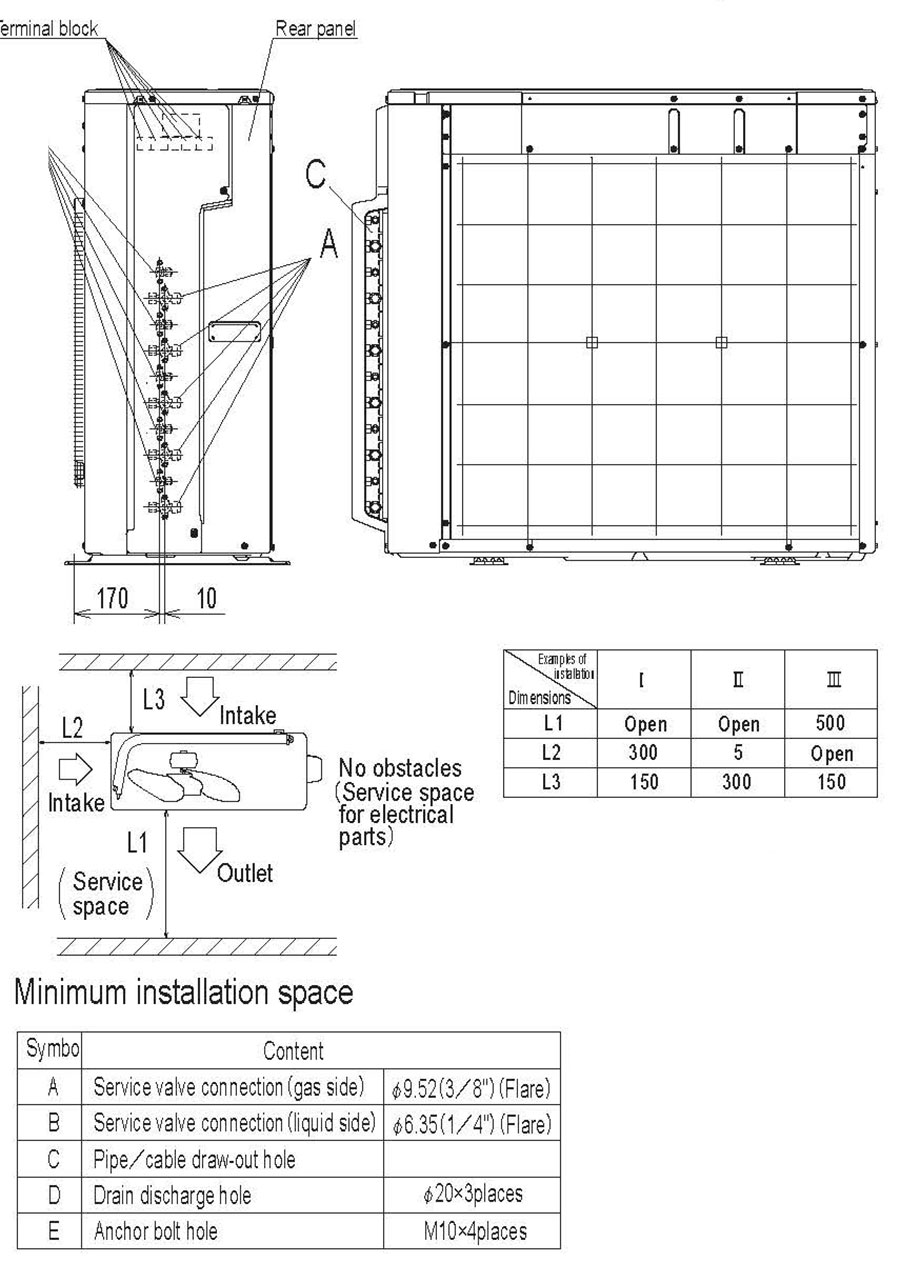

Mitsubishi-Heavy_SCM100ZM-S

Notes
(1) It must not be surrounded by walls on the four sides.
(2)The unit must be fixed with anchor bolts.An anchor bolt must not protrude more than 15mm.
(3) Where the unit is subject to strong winds, lay it in such a direction that the blower outlet faces perpendicularly to the dominant wind direction.
(4) Leave 1m or more space above the unit.
(5) A wall in front of the blower outlet must not exceed the units height.

Refrigerant Pipe Length
Limit
The maximum piping length of the refrigerant pipes for the outdoor units, and the maximum height difference for the outdoor units are as shown below.

Mitsubishi_Heavy_SCM45ZM-S_2

Mitsubishi_Heavy_SCM45ZM-S_3

* Refer to page 27 for additional information r egarding SCM series specifications.
* In case of combination with SRK--ZMXA-S, SRK71ZMA-S, FDEN50VF, 3 indoor units can be connected.
   Example; Can be 3 x SRK--ZMXA-S or 3 x FDEN50VF or a combina tion of any of these thr ee noted.
* In case of SRK71ZMA-S + SRK71ZMA-S, 2 indoor units can be con nected as a two port legal connection.
* SRK63ZMA-S, SRK80ZMA-S, SRK92ZMA-S, and other FDUM & FDEN mod els or FDT, FDUA models are not possible to connect with SCM series.
* DXK/DXU indoor units ar e not possible to connect with SCM series.
