SUPER MULTI NX
The Daikin SUPER MULTI NX lets you build a highly efficient multi room air conditioning system by connecting up to five indoor units to a single outdoor unit.
Air condition your entire home with a single outdoor unit
- Intelligent technology
- Ideal environment
- Interior and exterior flexibility
- Individual control
Features
Space Saving
- 1 single outdoor unit can connect to up to 5 indoor units allowing you to make more efficient use of available space in the installation location, such as a balcony.
- Needs just one compact outdoor unit - keep your home exterior beautiful
High energy saving and quiet operation
- Daikin energy-saving technologies
Swing compressor
Thanks to its smooth rotation, the swing compressor decreases friction and vibration. It also prevents the leakage of refrigerant gas during compression. These advantages provide quiet and efficient operation.
PAM control
Pulse Amplitude Modulation (PAM) control reduces energy loss by controlling the amount of switching on/off of the converter.
Reluctance DC motor
Daikin DC Inverter models are equipped with the Reluctance DC motor for compressor. The Reluctance DC motor uses 2 different types of torque, neodymium magnet*1 and reluctance torque*2. This motor can save energy because it generates more power with a smaller electric power than an AC or conventional DC motor.
*1. A neodymium magnet is approximately 10 times stronger than a standard ferrite magnet.
*2. The torque created by the change in power between the iron and magnet parts. - High COP products
| | Cooling | Heating |
| 5MKS100LSG | 3.69 | - |
| 5MXS100LVMA | 3.65 | 4.58 |
With the combination of:
We have created:
Note: Data are based on studies conducted under
controlled conditions at a Daikin laboratory
- Quiet operation
A quiet indoor unit is important to your personal comfort.
Indoor unit operation sound can be up to 22 dB(A) for FTKS/XS model during cooling operation.
A quiet outdoor unit is essential to your comfort and brings peace to your neighbourhood.
Outdoor unit: during Outdoor Unit Quiet Operation of cooling operation
2MKS40: 43 dB (A)
2MXS50: 45 dB (A)
Long piping length for installation flexibility
The ample maximum piping length of 80 m permits more freedom in the placement of air conditioner units and facilitates the optimisation of interior space
| Model Name | Cooling only | 2MKS40 | 3MKS50 | 3MKS71 | 4MKS80 | 5MKS100 |
| Heat pump | - | 3MXS52 | 3MXS68 | 4MXS80 | 5MXS100 |
| Max. Piping length | Total | 30 m | 50 m | 60 m | 70 m | 80 m |
| For 1 room | 20 m | 25 m | 30 m |
Wide Variety of Indoor Unit
Stylish indoor units for elegant interiors
Wall-mounted type
The stylish flat panel design provides an excellent match for interiors.
Slim duct-connected type
Bringing hotel style right here in your living room
Compact Multi Flow Ceiling-Mounted Cassette Type
Suitable for large space (Living room and dining room in the same area)
Smart control
- Convenient remote controllers
A variety of convenient controller systems permit individual control of settings such as temperature, airflow volume, and operation duration.
- Preferential air conditioning
(Initial setting required during installation)
Priority-Room Setting delivers priority capacity to a prioritised room when using multi-split air conditioners.
After a priority room is selected, it receives preferential air-conditioning plus priority control over the 3 functions:
. Inverter Powerful Operation
. Operation mode (for heatpump only)
. Outdoor Unit Quiet Operation
* Function is not available for 2MKS40E
Connectable at up to 200% of the outdoor unit capacity class
If all indoor units will not be operated simultaneously, for example, during daytime use of the living room unit or nighttime use of the three bedroom units, the sum of the capacity classes of all indoor units that can be connected is up to 200% of the outdoor unit capacity class
Notes:
1. When an indoor unit is turned on, if the sum of the capacity classes of all indoor units exceeds the limit for simultaneous operation, the unit waits on standby.
2. Even an indoor unit that was initially set as prioritised under Priority-Room Setting waits on standby under the above condition 1.
3. When an indoor unit is turned off, the sum of the capacity classes of all indoor units is within the limit for simultaneous operation, the unit waiting on standby starts automatically.
| | 2MKS40FV1B | 3MKS50ESG | 3MKS71ESG | 4MKS80ESG | 5MKS100LSG |
| Outdoor unit capacity class (kW) | 4.0 | 5.0 | 7.1 | 8.0 | 10.0 |
Limit of the sum of capacity
classes of all indoor units | Connectable at 200% (kW) | — | — | 14.2 | 16.0 | 20.0 |
| Simultaneous operation (kW) | 6.0 | 9.5 | 13.5 | 15.6 | 15.6 |
* Indoor units can be connected at up to 200% of outdoor units capacity class. All indoor units cannot be operated simultaneously
Outdoor Unit
A compact and quiet outdoor unit is essential for a less obtrusive exterior look and for your comfort and peace in your neighborhood.

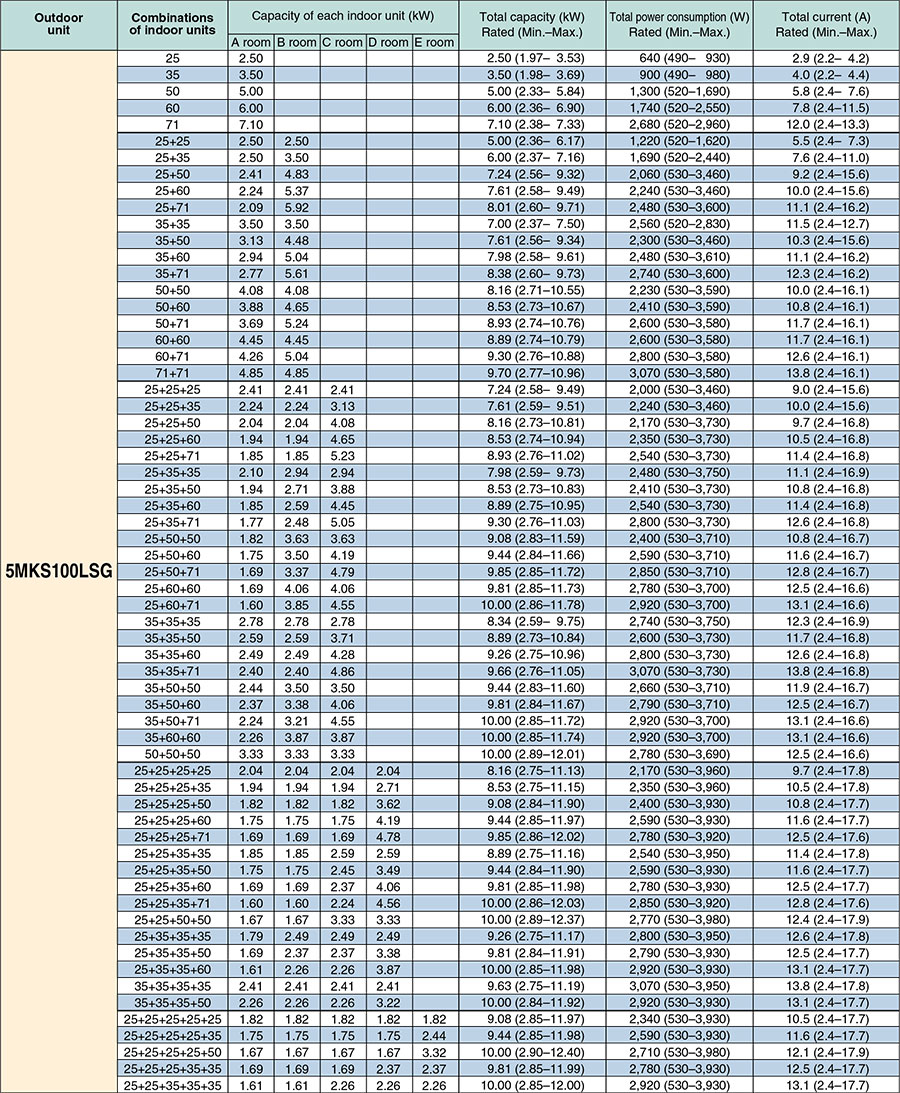

Notes:
1. Data is based on the following conditions: indoor temp. 27°CDB, 19°CWB; outdoor temp. 35°CDB; corresponding refrigerant piping length 5m; level difference 0m.
2. The total capacity of connected indoor units to the 5MKS100L is up to 15.6 kW.
3. The above is the value for connecting with the following indoor units: 2.5/3.5 kW class, wall-mounted D series and 5.0/6.0/7.1 kW class, wall-mounted F series.

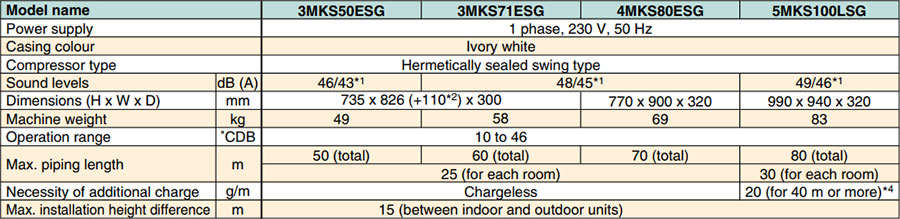

Notes:
*1 Rated sound level/sound level when Indoor Unit Quiet Operation and Outdoor Unit Quiet Operation are both selected for all indoor units in operation.
*2 The measurement in parentheses indicates the additional size of the shut-off valve cover.
*3 Additional charging of 20 g/m is required for the 2MKS40FV1B when piping length is 20 m or more.
*4 Additional charging of 20 g/m is required for the 5MKS100LSG when piping length is 40 m or more.
