To achieve increased durability by improved resistance to salt corrosion and atmospheric pollution, coated PE fins (with special acryl pretreatment) are used for the heat exchanger of the outdoor unit
Design flexibility
Designed for long refrigerant piping. 50 m maximum length and 30 m maximum level difference to cover medium- and large-scale building needs.
4-direction piping affords more freedom
Piping can be run from the front, bottom, right or rear surface according to how the unit is installed.
In case of RUR08–20N, piping can be drawn out in two directions-front, and under side.of layout (Applies to RUR05N/06N)

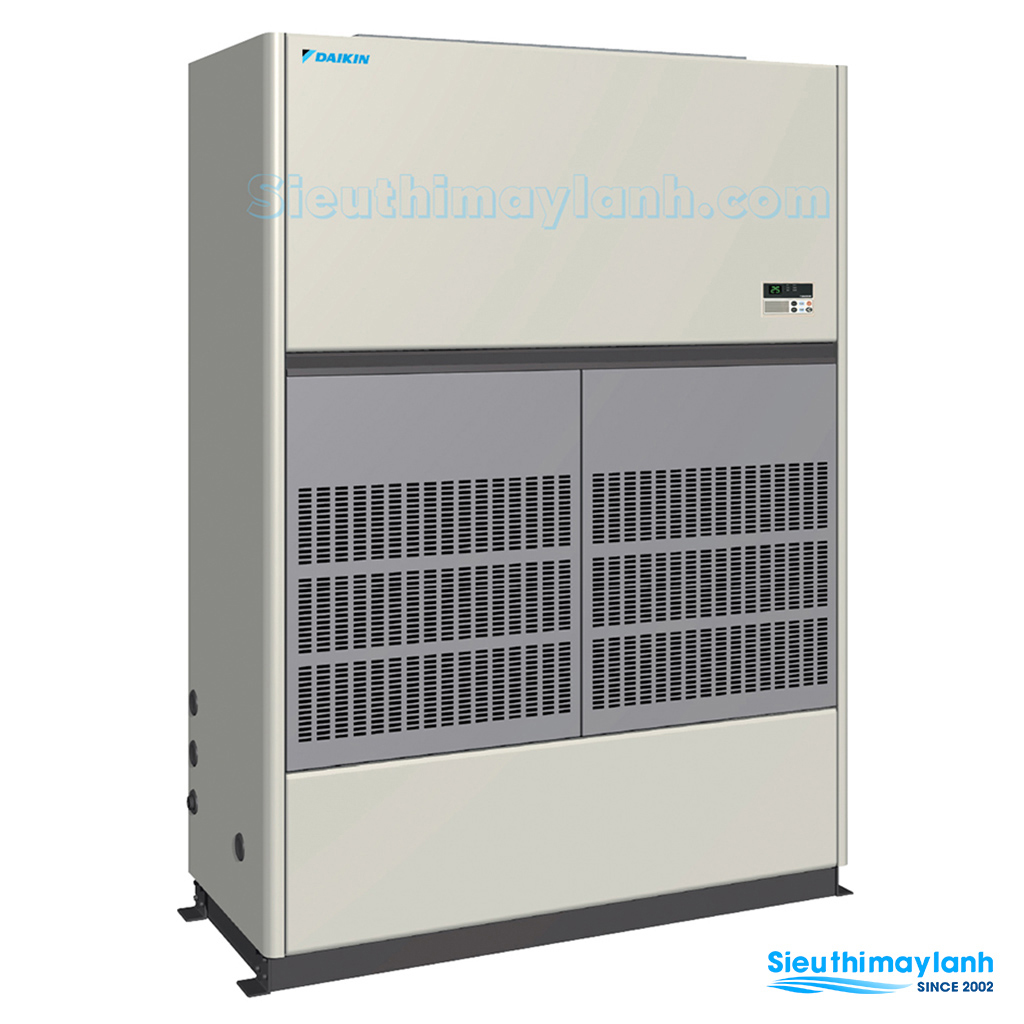

Floor Standing Duct Connection Type

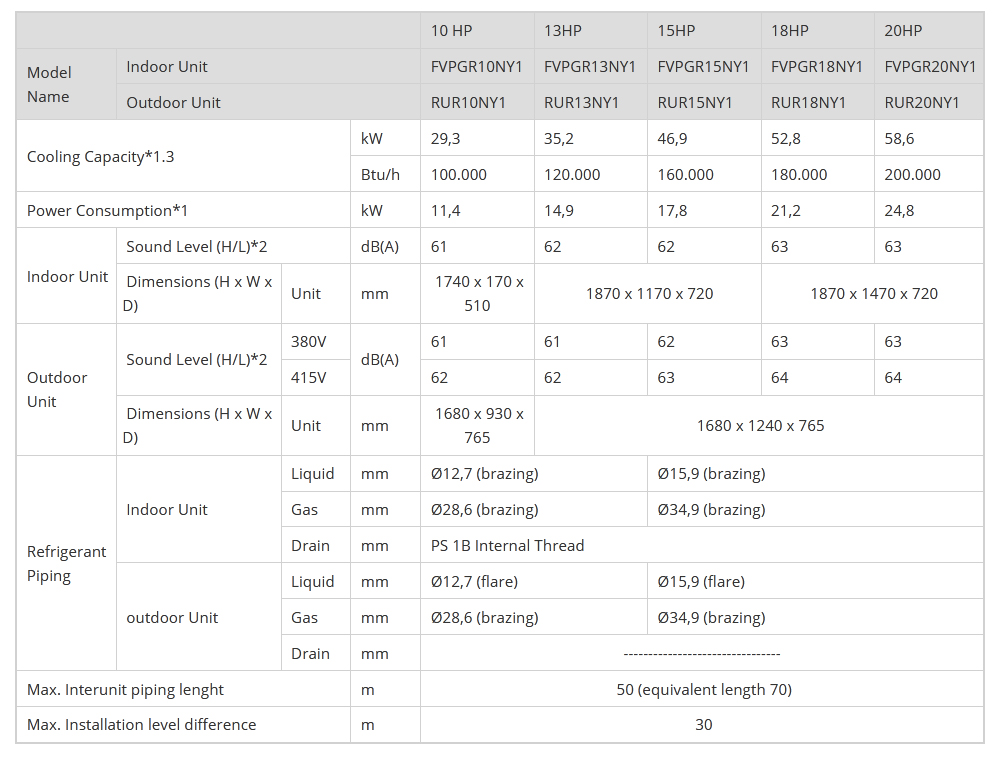

Note:
*1Rated cooling capacities are based on the following conditions: Return air temp., 27°CDB, 19.5°CWB; outdoor temp. 35°CDB. Equiv. refrigeration piping, 5 m (horizontal).
*2Anechoic chamber conversion value, measured according to JIS parameters and criteria. During operation these values are somewhat higher owing to ambient conditions.
*3Capacity includes indoor fan motor heat.
