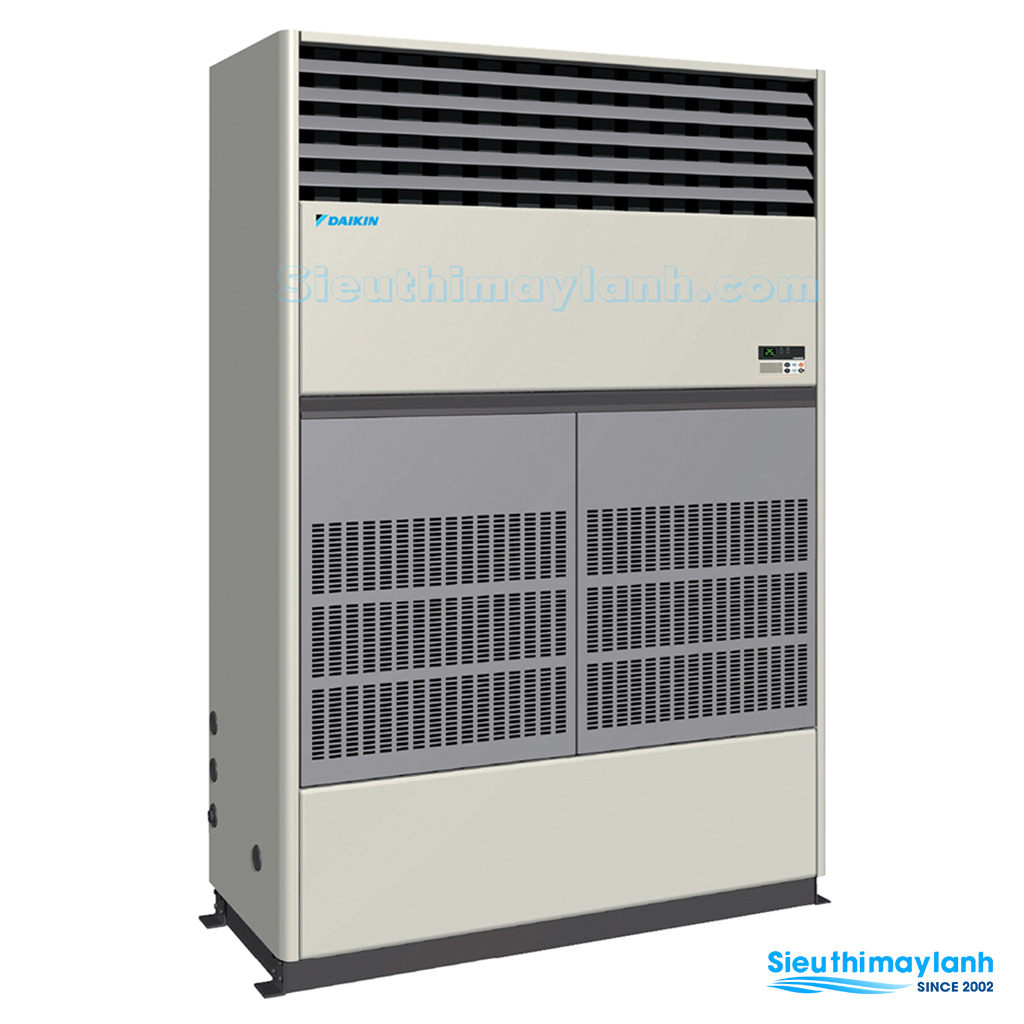

Daikin Floor Standing AC FVGR10NV1 (10.0Hp) - 3 Phase

Daikin Floor Standing AC FVGR10NV1 (10.0Hp) - 3 Phase

85,700,000
4 công suất làm lạnh. Bạn đang chọn 10 Hp
Phí vật tư có thể phát sinh: 5,006,000đ. Xem chi tiết vật tư.

Email: kinhdoanh@sieuthimaylanh.com
(Open 08. am-17.pm everyday)
Warranty
02 years for components
05 years for compressor
Capacity
Air Conditioner 10.0 HP
Type
Non-Inverter Air Conditioner
Refrigerant
Gas R410A
Specifications
Made in:Brand of Japanese, Made in Thailand
Refrigerant:R410A
Type:Non - Inverter AC - Cooling Only
Cooling Capacity:10 Hp - 100.000 Btu/h
Use For Room:Room Area 130 - 134 m² or Volume 390 - 402 m³ ( Suitable for living room, office )
Power Input (Ph/V/Hz):3 Phase, 380 - 415 V, 50Hz
Power consumption (kW):11,2 Kw
Refrigerant/ Liquid Pipe Diameter (mm):12.7 / 28.6
Maximum Pipe Length:50 (m)
Maximum Elevation Length:30 (m)
Indoor Unit
Indoor Unit Model:FVGR10NV1
Indoor Unit Dimensions (mm):1.870 x 1.170 x 510 (mm)
Indoor Unit Net Weight (Kg):143 (kg)
Outdoor Unit
Outdoor Unit Model:RUR10NY1
Outdoor Unit Dimensions (mm):1.680 x 930 x 765 (mm)
Outdoor Unit Net Weight (Kg):206 (kg)
Description

Packaged Air Conditioners

Success at research facilities and factories often hinges on strict control of air temperature and quality. To these environments, Daikin offers an abundant range of packaged air conditioners for precise control of air and temperature to help preserve accurate results and product quality.

Daikin Advantages

Energy Saving

Using advanced inverter and heat pump technologies increases efficiency and reduces energy consumption.

 Wide Range of Solutions

Daikin provides a wide range of applications that require high precision in temperature control and air quality.

Control by Zone / Area

Daikin packaged air conditioners combine with ducts to distribute air only to zones and areas where needed.

Durability

Heat exchange fins provided with anti-corrosion treatment (Applies to all outdoor units)
To achieve increased durability by improved resistance to salt corrosion and atmospheric pollution, coated PE fins (with special acryl pretreatment) are used for the heat exchanger of the outdoor unit

Design flexibility

Designed for long refrigerant piping. 50 m maximum length and 30 m maximum level difference to cover medium- and large-scale building needs.

daikin_FVGR05NV1




Refrigerant pre charged for up to 7.5 metres

Allowable refrigerant pipe length and level difference

 Pre-charged (*)Max. lengthMax. level difference
RUR05NY1-20NY17.5 m

50 m
(Equivalent length 70 m)

30 m

Note: (*) Additional refrigerant charging is required if the refrigerant pipe is longer than the indicated length.

4-direction piping affords more freedom

Piping can be run from the front, bottom, right or rear surface according to how the unit is installed.
In case of RUR08–20N, piping can be drawn out in two directions-front, and under side.of layout (Applies to RUR05N/06N)

Floor Standing Direct Air Blow Type

  • Comfortable factory air conditioning using multiple indoor units installed in accordance with the space
  • Installation is next to walls, so units will not affect the factory layout even if the changes are made
  • Flexible desaign for long refrigerant piping
  • Easy operation digital remote control comes standard with indoor unit
  • Heat exchange fins provided with anti-corrosion treatment
  • Installation space is saved thanks to a more compact outdoor unit. This also makes it easier to install

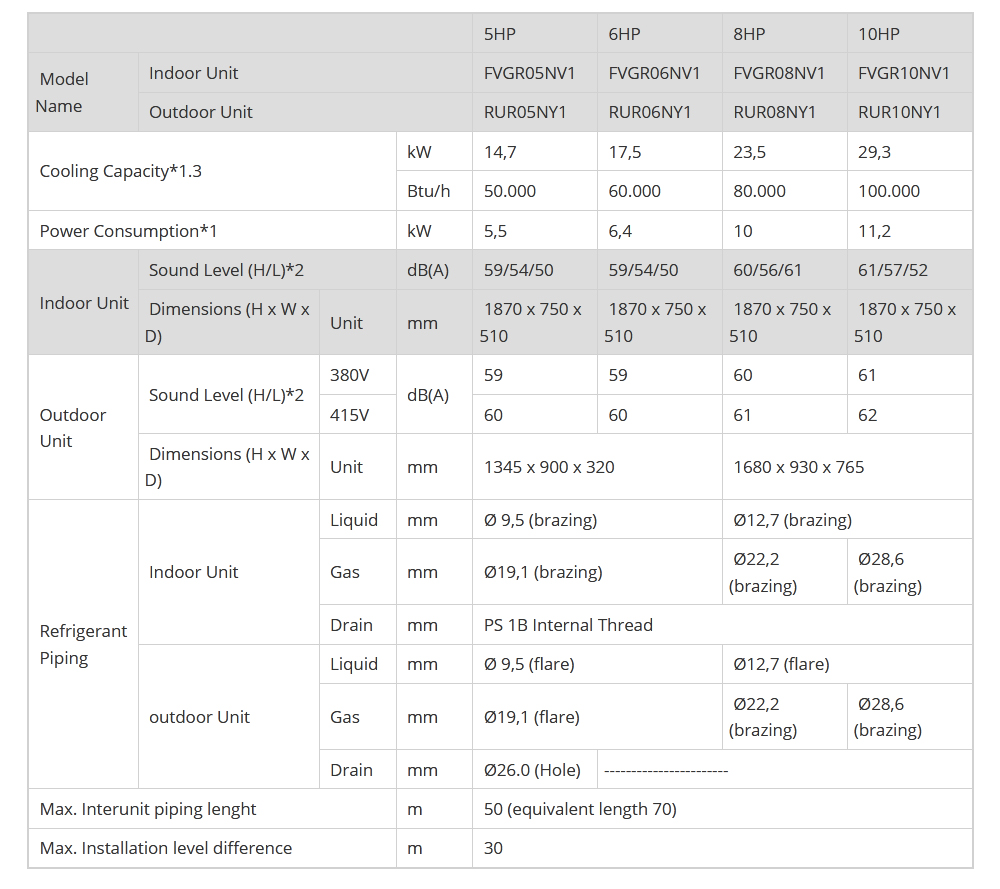

  5HP 6HP 8HP 10HP
 Model  Name Indoor Unit FVGR05NV1 FVGR06NV1 FVGR08NV1 FVGR10NV1
 Outdoor Unit RUR05NY1 RUR06NY1 RUR08NY1 RUR10NY1
 Cooling Capacity*1.3 kW 14,7 17,5 23,5 29,3
 Btu/h 50.000 60.000 80.000 100.000
 Power Consumption*1 kW 5,5 6,4 10 11,2
 Indoor Unit Sound Level (H/L)*2 dB(A) 59/54/50 59/54/50 60/56/61 61/57/52
 Dimensions (H x W x D) Unit mm 1870 x 750 x 510 1870 x 750 x 510 1870 x 750 x 510 1870 x 750 x 510
 Outdoor   Unit Sound Level (H/L)*2  380V dB(A) 59 59 60 61
 415V 60 60 61 62
 Dimensions (H x W x D) Unit mm 1345 x 900 x 320 1680 x 930 x 765
 Refrigerant   Piping Indoor Unit Liquid  mm Ø 9,5 (brazing) Ø12,7 (brazing)
 Gas  mm Ø19,1 (brazing) Ø22,2 (brazing) Ø28,6 (brazing)
 Drain mm PS 1B Internal Thread
 outdoor Unit Liquid  mm Ø 9,5 (flare) Ø12,7 (flare)
 Gas  mm Ø19,1 (flare) Ø22,2 (brazing) Ø28,6 (brazing)
 Drain mm Ø26.0 (Hole)-----------------------
 Max. Interunit piping lenght m 50 (equivalent length 70)
 Max. Installation level difference m 30
